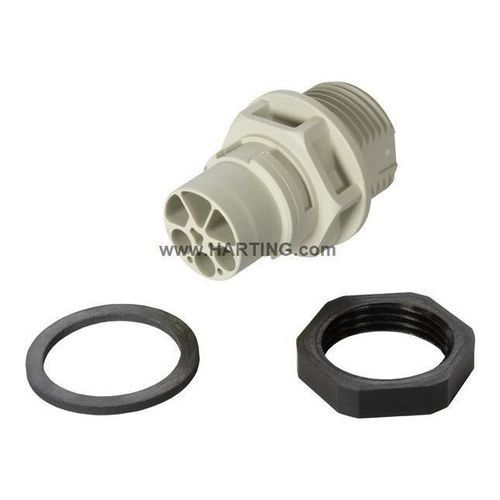

Panel mount connector housing S15_PFT_STR-FM_DC_M_CRT_w/o-contacts

IP67IP65circular

Short description
Panel feed-through connector for front mounting. Article No.: 97 00 000 4423. New product.

Identification
Category: Connectors
Series: Circular connectors Size 15
Element: Panel feed through
Specification: for front mounting

Version

• Gender: Male
• Shielding: Unshielded
• Number of contacts: 5
• Number of signal contacts: 3
• Number of power contacts: 2
• PE contact: Yes
• Locking type: Toggle locking
• Pack contents: incl. lock nut
• Details: Please order crimp contacts separately.

Technical characteristics
Conductor cross-section (mm²): 0.14 ... 2.5 mm²
Conductor cross-section (AWG): AWG 26 ... AWG 14
Pollution degree: 3
Rated current (signal): 4 A
Rated voltage (signal): 48 V AC/DC
Rated impulse voltage (signal): 0.8 kV
Pollution degree (signal): 3
Rated current (power): 20 A
Rated voltage (power): 48 V AC/DC
Rated voltage conductor-conductor (power): 48 V
Rated impulse voltage (power): 0.8 kV
Pollution degree (power): 3
Tightening torque: 2 Nm (lock nut)
Limiting temperature: -30 ... +90 °C
Mating cycles: ≥ 100
Degree of protection acc. to IEC 60529: IP65 / IP67
Isolation group: I (600 ≤ CTI)
Thickness of the panel: 1 ... 10 mm

Material properties
Material (insert): Polyamide (PA)
Material (hood/housing): Polyamide (PA)
Material flammability class acc. to UL 94: V-0

Specifications and approvals
IEC 61076-2-116
IEC 61984

Commercial data
Packaging size: 25
Country of origin: Romania
European customs tariff number: 85366990
eCl@ss: 27440103 Sensor-actuator connector chassis (sensor technology acturator)
UNSPSC 24.0: 39121413
