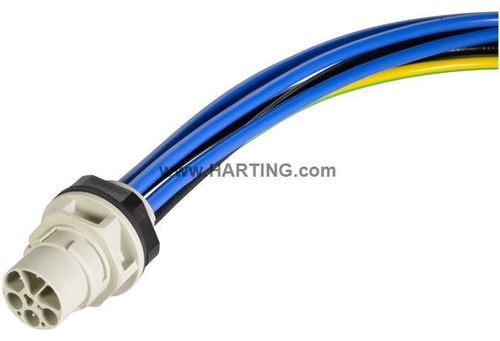

Front panel feedthrough S15_PFT_STR-FM_DC_M_6P

for panelsmultiple-elementIP67

Product note
Image is for illustration purposes only. Please refer to the product description and technical data for ordering.

Properties overview

• Panel feed-through connector
• Supplied with conductors
• Front mounting
• Conductor length: 25 cm

Identification
Category: Connectors
Series: Circular connectors Size 15
Element: Panel feed-through
Specification: With conductors; for front mounting

Version
Gender: Male
Shielding: Unshielded
Number of contacts: 5 (6P designation includes power and signal contacts layout)
Number of signal contacts: 3
Number of power contacts: 2
PE contact: Yes
Locking type: Toggle locking
Pack contents: Includes lock nut

Technical characteristics
Conductor cross-section: 2.5 mm² (AWG 14)
Pollution degree: 3
Rated current (signal): 4 A
Rated voltage (signal): 48 V AC/DC
Rated impulse voltage (signal): 0.8 kV
Rated current (power): 20 A
Rated voltage (power): 48 V AC/DC
Rated voltage conductor-conductor (power): 48 V
Rated impulse voltage (power): 0.8 kV
Tightening torque (lock nut): 2 Nm
Limiting temperature: -30 ... +90 °C
Mating cycles: ≥ 100
Degree of protection (IEC 60529): IP65 / IP67
Isolation group: I (CTI ≥ 600)
Panel thickness: 1 ... 10 mm
Conductor length: 25 cm

Material properties
Insert material: Polyamide (PA)
Contact material: Copper alloy
Contact surface: Silver plated
Hood/housing material: Polyamide (PA)
Flammability class (UL 94): V-0
RoHS: compliant with exemption (6(c) copper alloy up to 4% lead)
ELV status: compliant with exemption
REACH SVHC: Contains lead
California Proposition 65: Contains lead

Specifications and approvals

• IEC 61076-2-116
• IEC 60228
• IEC 61984
• VDE 0482-332-1-2
• IEC 60332-1-2 (Flame retardancy)
• UL 2556 Sec. 9.4 (VW-1)
• UL 2556 Sec. 9.3 (FT1)

Commercial data
Packaging size: 1
Country of origin: Romania
European customs tariff number: 85366990
eCl@ss: 27440103 Sensor-actuator connector chassis (sensor technology actuator)
UNSPSC 24.0: 39121413
