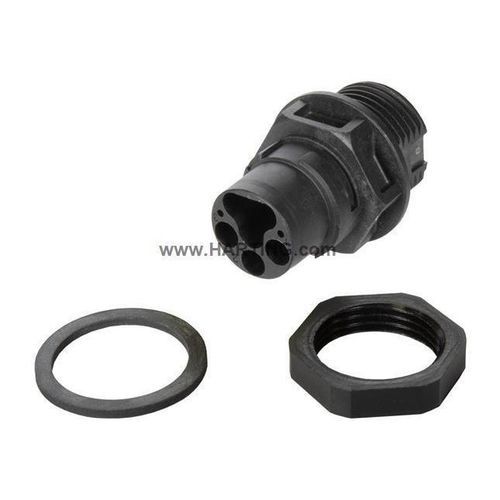

Panel mount connector housing S15_PFT_STR-FM_AC_M_CRT_w/o-contactsIP67IP65circular
Add to favorites
Compare this product
Characteristics
- Mounting
- panel mount
- Protection level
- IP67, IP65
- Other characteristics
- circular, plastic
Description
Overview
Identification
Version
Material properties
Specifications and approvals
Technical specifications
- Product type: Panel feed-through for front mounting (panel thickness 1 ... 10 mm)
- Article No.: 97 00 000 4419
- Configuration: Size 15 circular connector, male, unshielded, without contacts (please order crimp contacts separately)
Identification
- Category: Connectors
- Series: Circular connectors Size 15
- Element: Panel feed-through (front mounting)
- Standards reference: IEC 61076-2-116, IEC 61984
Version
- Gender: Male
- Shielding: Unshielded
- Number of contacts: 5 (2 signal, 3 power)
- PE contact: Yes
- Locking type: Toggle locking
- Housing/lock nut: Incl. lock nut; housing wall thickness max. 5 mm with lock nut, >5 mm only with earthed metal housing or plastic housing
- Pack contents: Including lock nut
Material properties
- Insert material: Polyamide (PA), black
- Hood/housing material: Polyamide (PA)
- Flammability class (UL 94): V-0
- Compliance: RoHS, ELV, China RoHS (e), REACH Annex XVII/XIV: not contained; REACH SVHC: not contained; California Proposition 65: not contained
Specifications and approvals
- IEC 61076-2-116
- IEC 61984
Technical specifications
- Conductor cross-section: 0.14 ... 2.5 mm² (AWG 26 ... AWG 14)
- Rated current (signal): 10 A
- Rated voltage (signal): 63 V AC/DC
- Rated impulse voltage (signal): 1.5 kV
- Rated current (power): 16 A
- Rated voltage conductor-earth (power): 450 V AC / 600 V DC
- Rated voltage conductor-conductor (power): 630 V AC/DC
- Rated impulse voltage (power): 6 kV
- Pollution degree: 3 (signal and power)
- Tightening torque (lock nut): 2 Nm
- Operating temperature range: -30 ... +90 °C
- Mating cycles: ≥ 100
- Degree of protection (IEC 60529): IP65 / IP67
- Isolation group: I (CTI ≥ 600)
- Packaging size: 25
- Country of origin: Romania
- HS code (EU): 85366990
- eCl@ss: 27440103
- UNSPSC: 39121413
