* retractable clamping rod, clamping jaw escapes from die
* horizontal clamping surfaces
* clamping force applies perpendicularly to clamping rod (no radial load)
* includes mechanical safety lock, so the die cannot drop from ram in case of pressure fail
* escaping rod prevents any jamming, even in the toughest applications, such as forging
|
|
Serapid has introduced the PSH C-clamp to its line of quick die change clamps.
The clamp is designed to work with dies with a flat edge. When mounted on a T-profiled base, the clamp forms a bracket device, which then is manually inserted into a slot on the bolster or slide.
In automated die changes, the clamp head alone can be mounted permanently on the press. The clamp is hydraulically actived and opened with a spring. The clamping height can be individually configured through the height of the base peice or using a custom-sized spacer.
The clamp is available in sizes from 20 to 100 kN.
For more information on Quick Die Xchange solutions, visit www.serapid.co.uk.
|
|

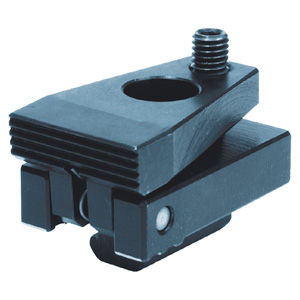

Low-profile clamps come in two basic models, one with a single-wedge and the other with a double-wedge construction. In addition, we offer a line of machinable jaw models for workpieces of irregular shape and a special model for casting and wire EDM applications
Standard models come with a hardness of 48-52 HRC and the jaws are serrated or smooth, depending on model. Both the wedge and the jaws are made of tool steel and are through hardened. Fastening operation involving one bolt (M5-16) ensures quick set up times.
|
|
* clamp is fixed or slides in T-slot of press
* variable span up to 15 mm
* adjustable or fixed (type BTSA)
* custom versions up to 400 kN
* replaces conventional bolt-and-nut clamping
|
|
Clamping elements with swing piston
Starting from the off-position the piston swings in the first part of its stroke by a defined angle (swing stroke) and then clamps linearly downwards (clamping stroke).
max. clamping forces from 0.6 to 41.0 kN
max. operating pressure from 150 to 500 bar
max. clamping strokes from 6 to 50 mm
max. total strokes from 14 to 62 mm
|
|
* double-action clamp with no footprint
* when released, the clamp arm is tilted by 90°,
so the ram or bolster surface is clear
* requires 30 or 40 mm aperture width on die
|
|

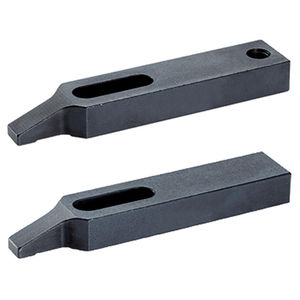

SLOTTED-HEEL CLAMP STRAPS
TAPPED-HEEL CLAMP STRAPS
SWIVEL-HEEL CLAMP STRAPS
DOUBLE-END CLAMP STRAPS
DRILL-SPOT-HEEL CLAMP STRAPS
STEP BLOCKS & CLAMPS

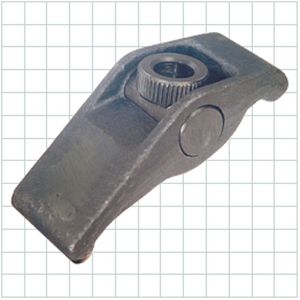

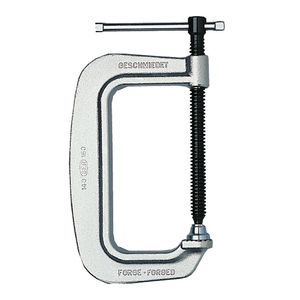

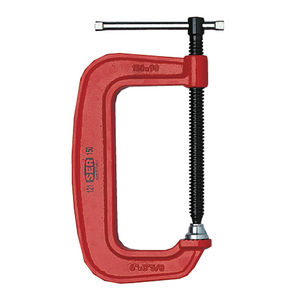

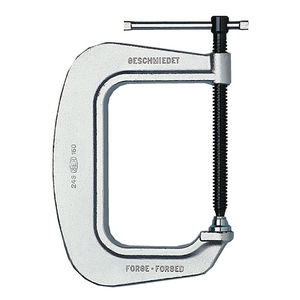

Forged Adjustable Clamps
Aluminum Adjustable Clamps
Forged U Clamps
|
|
Block Clamps
Jergens StayLock Block Clamps are multi-purpose utility clamps designed for many versatile applications. Block Clamps may be mounted for either vertical or horizontal clamping. They may be used with strap clamps or similar workholding devices for maximum adaptability (see illustration below). The Block Clamp plunger has a 1/4 - 28 thread on the I.D. for use with various contact points.
Retractable Clamps / Proximity Switch
Jergens StayLock Retractable Clamps are designed to allow quick change of molds in injection molding machines and die casting machines. The locking arm, which retracts into the clamp body for easy loading and unloading of a mold, is adaptable to clamp many standard mold slots. The Retractable Clamp is double acting and includes alternate clamp and release ports for easier hydraulic plumbing set-up. A Proximity Switch, which indicates the Retractable Clamp is in the extended or retracted position, is also available (see below).
|
|
Un-Slotted clamps
Swan Neck "S" Clamps
Slotted Clamps
Edge Clamps
Arness Actima Clamps
Clamp Accessories
Latch Hook Clamps
Cam Clamps
Quick Action Other Clamps
Latch Hook Clamps
Cam Clamps
Quick Action Other Clamps

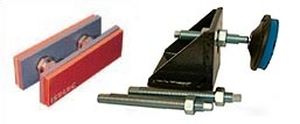

OK Vice
Plier Clamps
|
|
The clamp arm rotates 90° as it extends away from the work piece providing clearance and access for unload/ load operations. Double acting operation and standard magnetic piston offer positive cycles, durability and work piece detection features. Extruded aluminum body mounts directly and rigidly to equipment surfaces in a minimum of space.
Operation cycle:
1) Clamp arm extends (straight line) as it releases work piece from clamp loads.
2) Arm rotates 90° to full extend position.
3) When retracting, clamp arm swings 90°.
Model Code R = clockwise rotation, Model Code L = counterclockwise rotation.
4) With clamp arm in position over the work piece, it follows a straight line path to apply clamping force.
|
|
|
|
|
|
52H - Manual Automotive Clamps
Application: Clamping, holding, gripping and accurately positioning of metal sheets and other parts in jigs and handling systems.
- inductive sensing module with LED display
- toggle action mechanism
- centring pin diameters between 20 mm and 45 mm
- manual actuation and single-sided clamping hook
Carver Bar Clamp - Bar Style Carver Clamps
These rugged clamps, made from high-tensile, heat-treated steel, are designed for all types of applications requiring large holding capacities. The clamps are highly versatile, for example, jaws can be reversed. Ideal for welding applications.
- 1250 - 6000 lb. Capacity
- Two moveable jaws can be reversed for a spreading motion
- Multiple jaws can be used on the bar for multi-positioning clamping
- Bar lengths of up to 108" long
2013 - Vertical Hold-Down Toggle Locking Clamp
New generation toggle clamp with over 2 times the capacity of our legacy models
- Longer handle with greater hand clearance
- Longer clamp arm
- Spindle contacts workpiece vertically
- Bolts up to legacy model 210
8021 - Pneumatic Hold Down Clamp - Enclosed
Patented enclosed linkage makes clamp ideal for dirty environments such as welding and machining.
- 390 lb. Capacity
- Double-acting pneumatic system required to operate
- Available with magnetic ring for position sensing as an option. Switches are also available
- Can be equipped with Viton seals for high temperature applications
6001 - Straight Line Action Clamp
Heavier duty version of model 601
- 150 lb. Capacity
- Base can be side mounted
- Available in stainless steel
- 50% more capacity than model 601
|
|
|
Our extensive standard parts accessories include, among others, clamping devices, clamping and lifting journals as well as hoisting gear. For required sizes and weight groups, we stock support and mounting elements, which are intended for the safe transport of tools that weigh up to 63,000 kg.
|
|

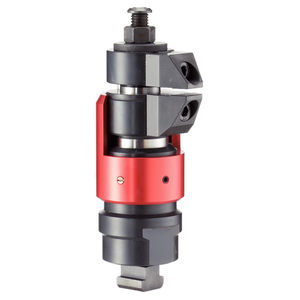

High Positioning Accuracy
Taper ring expands to closely contact the hole of workpiece to assure the high repeatability.
|
|
Hydraulic ROLLBLOC Sliding Clamps
Clamping force up to 80 kN
Hydraulic clamps can be used to reduce down time when setting up wherever dies need to be changed frequently. With a defined clamping pressure, die clamping is extremely precise as all clamping elements are effective simultaneously. Integral features of such a die clamping system include complete die protection in conjunction with effortless operation. The minimum handling requirements saves considerable time.
|
|
7011-5 - Hydraulic Power Clamp
The power clamps (double action) are used where a high clamping force is needed combined with small clamp dimensions. The cylinder body can be turned 90� in relation to the clamp.
1. max. clamping force 1250 daN (2810 ib)
2. max. operating pressure 250 bar (3625 psi)
00863DE/100986DE - Hydraulic Edge Clamp
StrongHold edge clamps perform three functions: locating the workpiece, clamping horizontally against secondary locators, and clamping vertically against the primary locating surface.
1. Conventional or manifold mount versions
2. 15 degree clamping angle
3. Single acting
4. 2000 lbs. clamping force
|
|
|
Model TME is a retractable lever type clamp and ensures sufficient mold holding force by a heavy duty spring even at the oil pressure failure.
|
|
ThePitbull® Clamp is a revolutionary new fixture clamp with positive down force and a low gripping profile. High vertical and horizontal clamping forces are generated., considering the size of the Pitbull® Clamps. It uses a standard cap screw and available in 5 sizes and several styles, a tool steel knife edge for aggressive stock removal, a tool steel blunt edge for general purpose and a brass version to help prevent marring the workpiece.
Unique feature of PITBULL® CLAMPS
- Extremely low bite
- Positive down force
- High resistance to rip-out
- Simple, sturdy, high quality design and components
- Gain maximum tool access to your work
- Virtually eliminate lost work
|
|
REMARK
1 : Mounting surface finish should be no rougher than Rz 6.3 (ISO 4287 :1997). 2 : Be sure to use O-ring included at all times.
3 : Tightening torque of body thread should be as per the table below.
4 : When mounting an attachment, be sure to hold the wrench width at the tip by spanner, etc.to prevent the piston from rotating before
tightening the bolt. Do not attempt to tighten it with a hydraulic-powered resistance against rotation
|
|
Compact Pneumatic twist cylinders are linear motion compact cylinders with an internal cam that provides
90 deg swing motion.
Twist cylinders are ideal swing clamps for automated and semi automated assembly and work holding found in circuit board assemblies, medical devices, robotic cells, component assembly and other applications. Because of their compact size and versatile mounting, they also make unique conveyor stops, diverters and escapements.
|
|
A variety of workpieces can be
clamped by replacing the clamp
arm. Standard and extended
clamp arms are available as
options.
|
|
|
|
|
|
A full range of swing cylinders, work-holding cylinders, applicator cylinders etc. specially designed for the clamping of mechanical parts in automated machining units.
STANDARD
Cartridge actuators, threaded actuators, block actuators, spring actuators
Swings clamps, work-holding cylinders :
QUIRI swing clamps have the unique feature of pivoting in the plan, that is, there is no linear stroke during rotation. The space required for the movement of the arm is therefore minimal, and the entire stroke of the clamp can be used for clamping (except 1 to 2 mm clearance) and wear on rod seals is reduced. There are several options for position detection :
- by use of a sensor rod
- pneumatically
- electrically
- hydraulically
Work-holding cylinders :
Contact force can be generated by a spring, or by air or hydraulic pressure.
T-LOCK and R-LOCK actuators :
These actuators have a patented locking system. They are intended in particular for palletized application, with lock-out occurring thanks to oil pressure. The hydraulic system is only pressurized during the linear movement of the rod.
T-LOCK : Linear displacement actuator with off-pressure lock-out system
R-LOCK : Includes in addition a system of rotation in a single plane.
NON-STANDARD
Our structure allows us to carry out all phases of manufacturing to produce a product that is perfectly suited to your needs. This structure includes a team dealing exclusively with clamping systems :
- a commercial manager
- a design team
- a production team.
Please contact us for additional information
|
|
035 - SELECT Pneumatic Swing/Pull Clamp
StrongHold SELECT pneumatic swing/pull clamps are designed for applications not requiring hydraulic power. They are a rugged and simple design suitable for harsher applications.
1. Double acting in threaded body or lower flange mount styles
2. Range of sizes for maximum clamping forces from 50 to 430 lbs.
3. Swing motions in right, left or straight guided pull
4. Avaiable in 0, 45, 60 or 90 degrees of swing
|
|
The original MITEE-BITE T-Slot Clamp combines our unique cam action clamping element with a T-nut.
-Locks in machine T-slot for low profile clamping.
-Makes fast set-ups possible right on the machine table.
-Brass hex follows contour of unusual shaped parts.
-Packaged in pairs or complete kits.
|
|
These special constructions are a proved solution for the isolated blockage of high horizontal dynamic forces.
E. g. for friction screw presses, horizontal press machines, longitudinal alignment of long machine beds and their fixation etc.
|
|
Ganter from Furtwangen offers a wide range of Toggle clamps.
Vertical clamps, horizontal clamps, push-pull clamps, hook clamps, pneumatically operated clamps are an extract of a wide product range.
|
|
STANDARD HTC DESIGN
Automatically Adjusting
LOW ARM TC DESIGN
Extra-Wide Opening
|
|
HORIZONTAL-HANDLE TOGGLE CLAMPS
VERTICAL-HANDLE TOGGLE CLAMPS
PUSH/PULL TOGGLE CLAMPS
Toggle Edge Clamps
LATCH-ACTION TOGGLE CLAMPS
TOGGLE PLIERS
AIR-POWERED CLAMPS
|
|
|
|
|
|
|
The grasshoppers EMILE MAURIN: New ergonomic handle Bi-matter!! A very broad range steel and stainless! The new grasshoppers EMILE MAURIN are provided with an ergonomic handle Bi-matter for a better comfort of use. The non-skid flexible part is in contact with the hand and the harder part in contact with the grasshopper. These grasshoppers have also 2 other technical advantages: an articulation made safe with an integrated thrust and an arm out of U slightly widened to avoid the loss of the screw of plating. The range of grasshoppers EMILE MAURIN is composed of: thorough grasshoppers: with horizontal base plate, vertical or side; with full arm; reinforced; with handle of safety, anti-reflecting drawn grasshoppers: with horizontal base plate, vertical or side; with full arm; with handle of safety, anti-reflecting grasshoppers with sliding tube grasshoppers with hook pneumatic grasshoppers And of course of many models are proposed out of stainless for specific uses in industries such as chemistry and agro-alimentary.
|
|
Material:
Steel or stainless steel
Surface finish:
Galvanized and chromated,
clamping spindle and nuts phosphated,
stainless steel natural finish,
plastic handle oil-resistant
|
|
Vertical
Hold Down Vertical 1000lbs max
This heavy duty clamp is available with solid bar and U-Bar construction. It accepts all 1/2-13 diameter spindles. The solid bar model is supplied with a 70901 bolt retainer. The U-Bar model is supplied with 70902 flanged washers. Spindle assembly 70903 must be ordered separately for both models.
Holding capacity: 1000 lbs. max.
Weight: 2 lbs., 7 oz.
Handle moves 67°, bar 120°
Solid Bar: 7/8" height, 3/8" wide
U-Bar: 7/8" height, 17/32" wide
Horizontal spindle adjustment: 3 1/8"
Spindle Thread: 1/2-13
Horizontal
Hold Down Horizontal 750lbs max
This horizontal clamp is available with U-Bar construction in a flanged or straight base. Supplied with a 70915 neoprene tipped spindle assembly. Both models supplied with a blue vinyl handle.
Holding capacity: 750 lbs. max.
Weight: 1 lb., 8 oz.
Handle moves 55°, bar 90°
U-Bar: 3/4" height, 7/16" wide
Horizontal spindle adjustment: 2 1/4"
Spindle Thread: 3/8-16
|
|
|
|
