Clamp RMC1 series

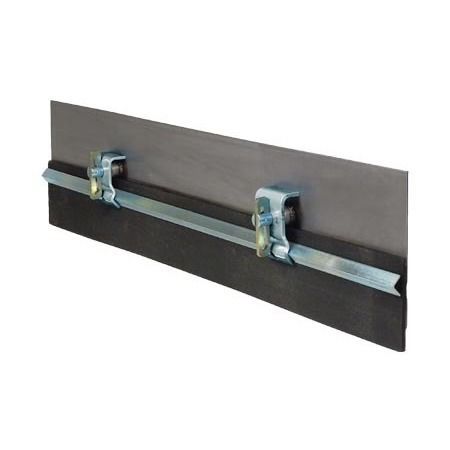

The RMC1 Skirt Clamp secures skirt board and skirt rubber at conveyor loading zones to reduce material spillage, cleanup and conveyor downtime.

Features and benefits

• Simple installation with few parts and step-by-step instructions
• Safe side-of-conveyor service access for installation and maintenance
• Quick adjustment via locking wedges on the clamp pins
• Anti-vibration pin to keep the pin locked during operation
• LS (Limited Space) model available for restricted spaces and portable equipment
• Pick-A-Length (PAL) PAK option for special or longer length requirements
• Bolt-On PAL PAK available when welding is not an option

Installation

• Skirt board and rubber not included
• One Skirt Clamp includes two clamp plates (Standard or LS), two clamp pins, and one 4' (1.2 M) clamp bar
• The Pick-A-Length (PAL) PAK contains 2 clamp plates and 2 clamp pins — customer supplies the clamp bar (1" x 1" x 1/8" angle) to required length

PAL PAKs per system length

• Skirting System Length → PAL PAKs Needed
  • 1'-4' (0.3 m–1.2 m): 1
  • 5'-8' (1.5 m–2.4 m): 2
  • 9'-12' (2.8 m–3.8 m): 3
  • 13'-16' (4.0 m–4.9 m): 4
  • 17'-20' (5.2 m–6.1 m): 5

Technical characteristics / specifications

• Module size: 4' (1200 mm)
• Skirt rubber thickness range: 5/16" to 3/4" (8 to 19 mm)
• Overall height: Standard 7" (180 mm); LS 4.5" (115 mm)
• Pin to clamp bar distance: Standard 4" (100 mm); LS 2.5" (65 mm)
• Included with a standard Skirt Clamp: 2 clamp plates (Standard or LS), 2 clamp pins, 1 clamp bar (4' / 1.2 m)
• PAL PAK contains 2 clamp plates and 2 clamp pins; clamp bar supplied by customer (1" x 1" x 1/8" angle) to required length
