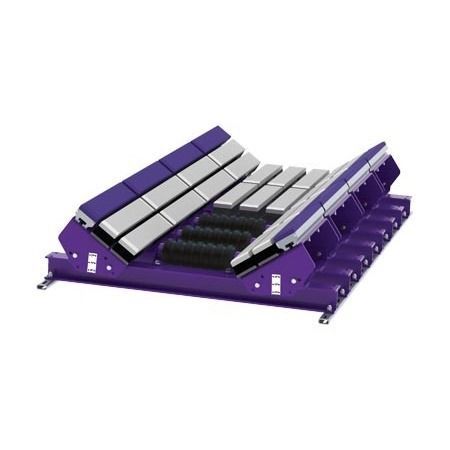

Conveyor belt loading station impact bed MIB24-2H

Overview

Modular Impact Beds are engineered to provide maximum capacity and full containment in and around the load zone. The modular 2' (600 mm) sectional footprint lets you configure high-impact all-bar sections and lower-impact slider sections together to optimize performance across the load zone.

Features and benefits

• Quick and easy service with slide-out trough and center section removal
• All bars are chamfered to work with reversing belts
• Seamlessly combine slider and impact beds for optimized performance across varying load points
• Construction rating: CEMA D
• Adjustable trough angle options: 20°, 35°, 45°
• 2' (600 mm) modular sections for flexible impact zone design

Installation

• Adjustable idler sets are available and designed for placement between multiple beds to maintain alignment and facilitate maintenance

Technical specifications

• Maximum belt speed: 1000 fpm (5 m/sec)
• Maximum temperature rating: -40°F to 180°F (-40°C to 82°C)
• Sectional footprint: 2' (600 mm) sections
• Construction: CEMA D
• Adjustable trough angle: 20°, 35°, 45°
• Slider bar material: 1" (25 mm) UHMW polyethylene and aluminum extrusion
• Impact bar material: 1" (25 mm) UHMW polyethylene, rubber cushion and steel base
• Impact energy (by style):
  • MSB (slider): up to 200 lb-ft (up to 25 kg-m)
  • MIB (impact): up to 1500 lb-ft (up to 200 kg-m)
• Available for belt widths: 24" to 72" (600 to 1800 mm)
• Shim requirements (by impact bed size and idler type):
  • CEMA C or D idlers (5" / 125 mm):
    • 24"–36" (600–900 mm): Use (1) shim kit; shim idler up 0.5" (13 mm)
    • 42"–72" (1050–1800 mm): No shim
  • CEMA C or D idlers (6" / 150 mm):
    • 24"–36" (600–900 mm): No shim
    • 42"–72" (1050–1800 mm): Use (1) shim kit; shim bed up 0.5" (13 mm)
  • CEMA E idlers (6" / 150 mm and 7" / 175 mm):
    • 36"–60" (900–1500 mm): Use (3) shim kits; shim bed up 1.5" (38 mm) for 6" idlers; Use (4) shim kits; shim bed up 2" (50 mm) for 7" idlers
    • 72" (1800 mm): Use (4) shim kits; shim bed up 2" (50 mm) for 6" idlers; Use (5) shim kits; shim bed up 2.5" (64 mm) for 7" idlers
