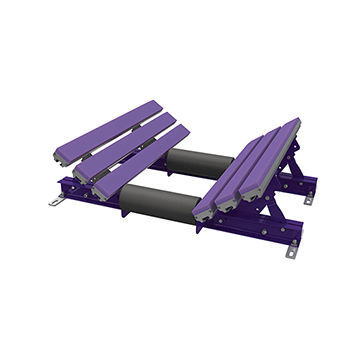

Cradle EZSB series

Overview
Flexco Slider Beds are engineered to provide containment around load zones, minimize belt drag and effectively seal the load zone using long‑lasting UHMW slider bars combined with high‑performance rolls.

Features and benefits

• Troughs can be lowered for installation and service
• Long service life and cost-effective part replacement
• CEMA D construction
• Adjustable trough angle: 20°, 35°, 45°
• Available in 4 ft (1.2 m) and 5 ft (1.5 m) bed lengths
• Available with standard rolls or impact rolls
• Can be paired with Flexco Impact Beds to create a holistic load zone system

Technical specifications

• Maximum belt speed: 1000 fpm (5 m/sec)
• Maximum temperature rating: -40°F to 180°F (-40°C to 82°C)
• Slider bar material: UHMW polyethylene and aluminum extrusion
• Impact bar material: UHMW polyethylene, rubber cushion and aluminum extrusion
• Impact energy:
• EZSB-S: 0 lb-ft (0 kg-m)
• EZSB-I: up to 200 lb-ft (up to 25 kg-m)
• Available for belt widths: 24 in to 72 in (600 to 1800 mm)
