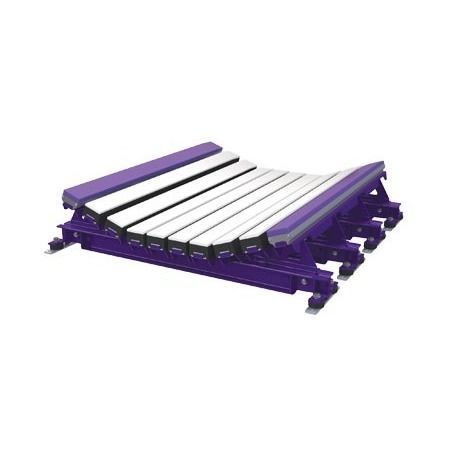

Conveyor belt loading station impact bed DRX™ 1500

Overview
The DRX™ 1500 Impact Beds are engineered impact-absorbing conveyor bed systems designed to deliver maximum protection to the belt in the load zone. The system integrates robust structural components and proprietary energy-reduction features to increase durability and simplify maintenance.

Features and benefits

• Entire system engineered for superior belt protection in the load zone
• Exclusive Velocity Reduction Technology™ with Impact Bar Supports and Isolation Mounts provides two levels of impact energy reduction
• Easy maintenance with Slide-Out Service design
• Troughing angles available: 20° and 35° (other angles available by special quote)
• Available bed lengths: 4' (1.2 m) and 5' (1.5 m)

Installation

• The Impact Bed Handy Wrench is recommended for maintenance and installation (see Installation Tools)

Shim requirements

• For C or D idlers (5 in / 125 mm and 6 in / 150 mm):
  • Impact bed size 24–36 in (600–900 mm): use (1) shim kit; shim idler up 0.5 in (13 mm) [5 in idlers: use (1) shim kit; 6 in idlers: no kits required]
  • Impact bed size 42–72 in (1050–1800 mm): no kits required [5 in idlers]; use (1) SHIM-KITL; shim bed up 0.5 in (13 mm) [6 in idlers]
• For CEMA E idlers (6 in / 150 mm and 7 in / 175 mm):
  • Impact bed size 36–60 in (900–1500 mm): use (3) SHIM-KITL; shim bed up 1.5 in (38 mm) [6 in idlers]; use (4) SHIM-KITL; shim bed up 2 in (50 mm) [7 in idlers]
  • Impact bed size 72 in (1800 mm): use (4) SHIM-KITL; shim bed up 2 in (50 mm) [6 in idlers]; use (5) SHIM-KITL; shim bed up 2.5 in (64 mm) [7 in idlers]

Documents and media (selected)

• Instruction manual and sell sheet available (see product documents)
• Demonstration video: DRX™ Impact Beds Demonstration Video

Technical specifications

• Maximum belt speed: 1000 fpm (5 m/sec)
• Maximum temperature rating: -40°F to 180°F (-40°C to 82°C)
• Impact bar material: UHMW polyethylene, rubber cushion, and aluminum extrusion
• Impact energy / rating: 750 - 1500 lb-ft (100 - 200 kg-m); for DRX1500 impact energy category listed as 750 to 1500 lb-ft
• Available for belt widths: 24 to 72 in (600 to 1800 mm)
• Troughing angles offered: 20° and 35° (other angles available by special quote)
• Bed lengths: 4' (1.2 m) and 5' (1.5 m)
