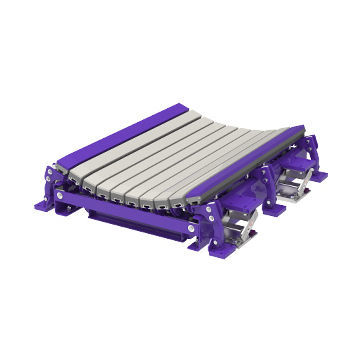

Conveyor belt loading station impact bed DRX™ 3000

Overview
The DRX3000 Impact Beds are engineered assemblies that protect conveyor belts in the load zone by combining impact-absorbing components with protection integrated into the full bed structure.

Features and benefits

• System engineered for superior belt protection: protection integrated into the full structure, not only the bars.
• Exclusive Velocity Reduction Technology 9-3 with Impact Bar Supports and Isolation Mounts, providing two levels of impact energy reduction.
• Slide-Out Service design for easy access and reduced maintenance time.
• Troughing angles available: 20° and 35° (other angles available by special quote).
• Standard bed lengths: 4' (1200 mm) and 5' (1500 mm).

Installation

• Impact Bed Handy Wrench is recommended for maintenance and installation (see Installation Tools information in product resources).

Technical specifications

• Maximum belt speed: 1000 fpm (5 m/s).
• Operating temperature range: -40°F to 180°F (-40°C to 82°C).
• Impact bar material: UHMW polyethylene, rubber cushion and aluminum extrusion.
• Impact energy (max lump weight × drop height): 1500–3000 lb·ft (200–400 kg·m).
• Available for belt widths: 36" to 96" (900 to 2400 mm).
• Standard bed lengths: 4' (1200 mm) and 5' (1500 mm).
