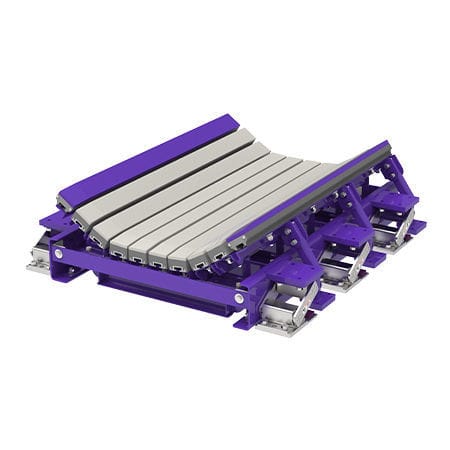

Conveyor belt loading station impact bed DRX™ 4500

The DRX™ 4500 Impact Beds are heavy-duty conveyor impact beds engineered to protect belts in the load zone by absorbing and dissipating impact energy. The system integrates energy-absorbing components across the entire structure to provide durable, low-maintenance belt protection.

Features and Benefits

• System engineered to protect conveyor belts across the load zone
• Exclusive Velocity Reduction Technology™ with Impact Bar Supports and Isolation Mounts for two stages of impact energy reduction
• Slide-Out Service design for fast, safe maintenance access
• Standard troughing angles: 20° and 35° (other angles available by special quote)
• Modular bed sections supplied in 5' (1.5 m) lengths for flexible installation

Installation

• Impact Bed Handy Wrench recommended for installation and routine maintenance (see Installation Tools / Instructions for details)

Specifications

• Model / Series: DRX™ 4500
• Brand: Flexco
• Maximum Belt Speed: 1000 fpm (5 m/sec)
• Maximum Temperature Rating: -40°F to 180°F (-40°C to 82°C)
• Impact Bar Material: UHMW polyethylene, rubber cushion, and aluminum extrusion
• Impact Energy (rating): 1500 to 4500 lb-ft (200 to 600 kg-m)
• Available Belt Widths: 36" to 96" (1050 to 2400 mm)
• Bed Length: 5' (1.5 m) standard sections
• Troughing Angles: 20° and 35° (other angles available by special quote)
