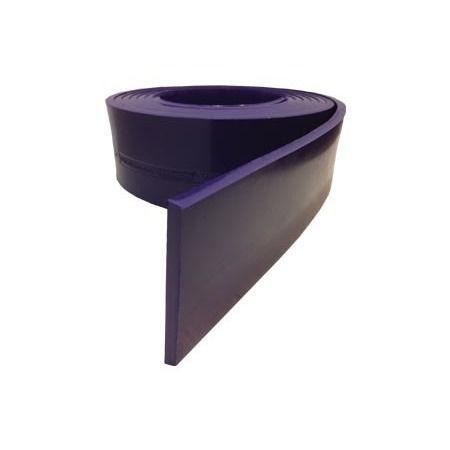

Smooth conveyor skirt board SKPU-6X1/2X50

Flexco's Standard Polyurethane Skirting is a wear-resistant conveyor skirt designed to extend service life compared with typical rubber skirting. It performs in single-direction and reversing belts, wet or dry environments, and fits both vulcanized and mechanically spliced belt systems.

Features and benefits

• Significantly longer wear life than standard rubber skirting (often 3–4× in similar applications).
• Compatible with Flexco skirt clamp series for easy installation and maintenance: RMC1, Flex-Lok™, and Flex-Seal™.
• Available in 25' (7.6 m) and 50' (15.2 m) rolls to suit various installation lengths.
• 35° chamfer geometry removes typical break-in period and improves initial sealing performance.

Technical specifications

• Material: Soft durometer urethane (65A) with high tear resistance.
• Temperature range: -20°F to 180°F (-30°C to 82°C).
• Roll sizes: 25' (7.6 m) and 50' (15.2 m).
• Chamfer: 35°.

Compatibility & applications

• Suitable for mineral handling, aggregates, bulk materials and general conveyor transfer points.
• Designed for use on new or aged belts; compatible with vulcanized and mechanically spliced belts.
• Works with Flexco skirt clamp systems (RMC1, Flex-Lok™, Flex-Seal™) for efficient serviceability.
