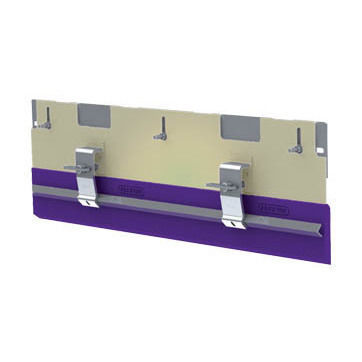

Rubber conveyor skirt board SLU-48

The Skirt Wear Liner Kit retrofits worn chutes and load zones to quickly prevent fugitive material from escaping the load zone while allowing safe side access for maintenance. It is built for long service life using corrosion-protected components and offers economical replacement-part-based repairs.

Features and benefits

• Retrofits to worn out chutes and load zones to quickly prevent fugitive material from escaping the load zone.
• No belt damage: with correct installation the skirt rubber will not drag on the belt, preventing premature wear or gouge marks in the belt cover and preserving belt cleaning efficiency.
• Safe service access: all maintenance work can be done safely from the sides of the conveyor.
• Economical: buy only the parts you need for your skirting system.
• Long service life: kits are made of corrosion-protected components for tough duty; replacement parts are available.

Product variants and replacement parts

• Bolt-On Pal Pak — Ordering Number: RMC1-BPP — Item Code: 76415
• Clamp Bar — Ordering Number: RMC1-CB — Item Code: 75820
• Replacement Straight Liner with 1" (25 mm) Canoe Liner — Ordering Number: SLU-48 — Item Code: 93113
• Replacement Straight Liner with 1/4" (6 mm) AR400 — Ordering Number: SL-48 — Item Code: 91841
• Replacement Tangent Liner with 1" (25 mm) Canoe Liner — Ordering Number: TLU-48 — Item Code: 93114
• Replacement Tangent Liner with 1/4" (6 mm) AR400 — Ordering Number: TL-48 — Item Code: 91842
• Straight Liner Kit with 1" (25 mm) Canoe Liner — Ordering Number: SLUWK-48 — Item Code: 93116
• Straight Liner Kit with 1/4" (6 mm) AR400 — Ordering Number: SLAWK-48 — Item Code: 93115
• Tangent Liner Kit with 1" (25 mm) Canoe Liner — Ordering Number: TLUWK-48 — Item Code: 93118
• Tangent Liner Kit with 1/4" (6 mm) AR400 — Ordering Number: TLAWK-48 — Item Code: 93117

Characteristics / Technical specifications

• Upper mounting plate: designed to be quickly welded onto existing skirt structure.
• Provides wear liner adjustments from outside the system for easy tuning without entering the chute.
• Wear liner material options: AR400 abrasion-resistant liner or polyurethane canoe liner.
• Includes industry-leading RMC1 skirt clamps for secure attachment.
