Conveyor belt loading station impact bed EZIB series
Add to favorites
Compare this product
Characteristics
- Options
- for conveyor belt loading stations
Description
Overview
Features and benefits
Specifications
Shim requirements
Installation
Technical characteristics

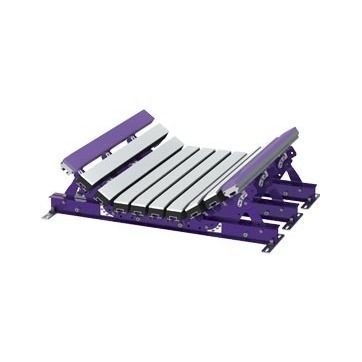

- Flexco Impact Beds (series EZIB) protect conveyor belts in the load zone by absorbing impact energy and providing a serviceable bed system compatible with Slider Beds.
Features and benefits
- Trough sections can be lowered for installation and maintenance to simplify belt access
- Interchangeable, cost-effective components for long service life and simplified part replacement
- CEMA D construction
- Adjustable trough angle options: 20°, 35°, 45°
- Offered bed lengths: 4' (1.2 m) and 5' (1.5 m)
Specifications
- Maximum belt speed: 1000 fpm (5 m/s)
- Operating temperature range: -40°F to 180°F (-40°C to 82°C)
- Slider bar material: UHMW polyethylene and aluminum extrusion
- Impact bar material: UHMW polyethylene, rubber cushion, and aluminum extrusion
- Impact energy ratings:
- EZIB-L: up to 200 lb-ft (≈25 kg·m)
- EZIB-M: 200 to 750 lb-ft (≈25–100 kg·m)
- Available for belt widths: 24" to 72" (600 to 1800 mm)
Shim requirements
- For CEMA C or D idlers (5" / 125 mm and 6" / 150 mm):
- Impact bed sizes 24"–36" (600–900 mm): shim idler up 0.5" (12.5 mm) for 5" idlers; no kits required for 6" idlers
- Impact bed sizes 42"–72" (1050–1800 mm): no kits required for 5" idlers; for 6" idlers use (1) SHIM-KITL to shim up 0.5" (12.5 mm)
- For CEMA E idlers (6" / 150 mm and 7" / 175 mm):
- Impact bed sizes 36"–60" (900–1500 mm): use (3) SHIM-KITL to shim up 1.5" (37.5 mm) for 6" idlers; use (4) SHIM-KITL to shim up 2" (50 mm) for 7" idlers
- Impact bed size 72" (1800 mm): use (4) SHIM-KITL to shim up 2" (50 mm) for 6" idlers; use (5) SHIM-KITL to shim up 2.5" (62.5 mm) for 7" idlers
Installation
- Adjustable idler sets are available and designed for placement between multiple beds to ensure proper belt support and alignment
Technical characteristics
- Series: EZIB (Impact Beds)
- Trough angles: 20°, 35°, 45°
- Bed lengths: 4' (1.2 m) and 5' (1.5 m)
- Belt widths supported: 24" to 72" (600–1800 mm)
- Maximum belt speed: 1000 fpm (5 m/s)
- Operating temperature: -40°F to 180°F (-40°C to 82°C)
- Slider bars: UHMW polyethylene + aluminum extrusion
- Impact bars: UHMW polyethylene + rubber cushion + aluminum extrusion
- Impact energy ratings: EZIB-L up to 200 lb-ft (≈25 kg·m); EZIB-M 200–750 lb-ft (≈25–100 kg·m)
- Construction class: CEMA D
