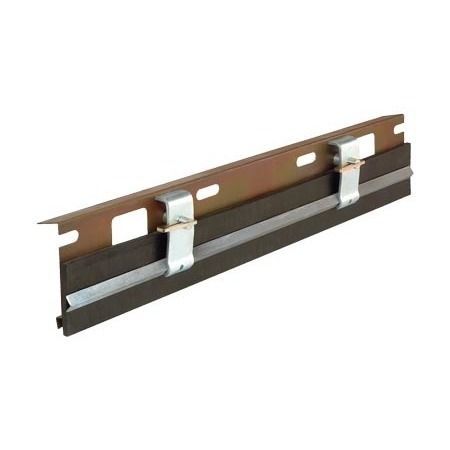

Rubber skirting Flex-Seal™

industrial

The Flex-Seal™ Skirt System is a dynamic containment unit that fully seals the conveyor loading zone to stop material spillage, control dust emissions, and help prevent belt damage. It carries the Flexco Mineline® endorsement for proven performance in heavy-tonnage applications.

Features and benefits

• Angles the skirt rubber so it seals with low contact pressure and without damaging the belt
• No-hassle installation with few parts and complete step-by-step instructions
• Safe service access - installation and maintenance work can be done safely from the sides of the conveyor
• Quick adjustment by using the locking wedges on the clamp pins
• Anti-vibration pin ensures pin remains locked

Installation

• Skirt board and rubber not included
• One Skirt Clamp includes angle plate, one Bolt-On PAL PAK, and one 4' (1.2 m) clamp bar

Technical specifications

• Module Sizes: 4' (1200 mm)
• Skirt rubber width required: 6" (150 mm)
• Skirt rubber thickness range: 5/16" - 3/4" (8 mm - 19 mm)
• One Skirt Clamp contents: angle plate, one Bolt-On PAL PAK, one 4' (1.2 m) clamp bar
