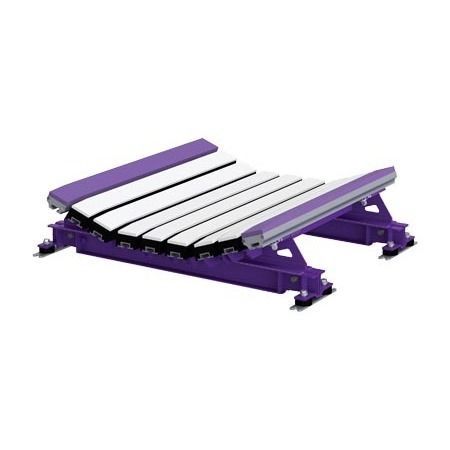

Conveyor belt loading station impact bed DRX™ 200

The DRX-143-100 Impact Beds are engineered to provide maximum belt protection in the load zone by integrating impact-absorbing components across the full bed assembly.

Features and benefits

• Complete system engineered to protect conveyor belts at the loading point.
• Exclusive Velocity Reduction Technology including impact bar supports and isolation mounts to provide two levels of impact energy reduction.
• Slide-Out Service design enables fast, safe maintenance and component replacement.
• Available in multiple troughing angles and bed lengths to adapt to different installations.

Shim requirements for DRX200, DRX750, and DRX1500

• Table: CEMA C or D (5" / 125 mm) and CEMA C or D (6" / 150 mm) idlers
  • IMPACT BED SIZE | CEMA C OR D, 5" (125 mm) IDLERS | CEMA C OR D, 6" (150 mm) IDLERS
  • 24"–36" (600–900 mm) | Use (1) shim kit; shim idler up 0.5" (13 mm) | No kits required
  • 42"–72" (1050–1800 mm) | No kits required | Use (1) SHIM-KITL; shim bed up 0.5" (13 mm)
• Table: CEMA E (6" / 150 mm) and CEMA E (7" / 175 mm) idlers
  • IMPACT BED SIZE | CEMA E, 6" (150 mm) IDLERS | CEMA E, 7" (175 mm) IDLERS
  • 36"–60" (900–1500 mm) | Use (3) SHIM-KITL; shim bed up 1.5" (38 mm) | Use (4) SHIM-KITL; shim bed up 2" (50 mm)
  • 72" (1800 mm) | Use (4) SHIM-KITL; shim bed up 2" (50 mm) | Use (5) SHIM-KITL; shim bed up 2.5" (64 mm)

Installation

• The Impact Bed Handy Wrench supports installation and maintenance operations. Refer to available installation tools and instructions for guidance.

Technical specifications

• Model / Series: DRX-143-100 Impact Beds
• Maximum belt speed: 1000 fpm (5 m/s)
• Maximum temperature rating: -40° to 180° F (-40° to 82° C)
• Impact bar material: UHMW polyethylene, rubber cushion, and aluminum extrusion
• Impact energy rating: up to 200 lb-ft (DRX200)
• Available belt widths: 24" to 72" (600 to 1800 mm)
• Troughing angles: 20° and 35° (other angles available by special quote)
• Bed lengths: 4' (1.2 m) and 5' (1.5 m)
