Clamp Flex-Lok™

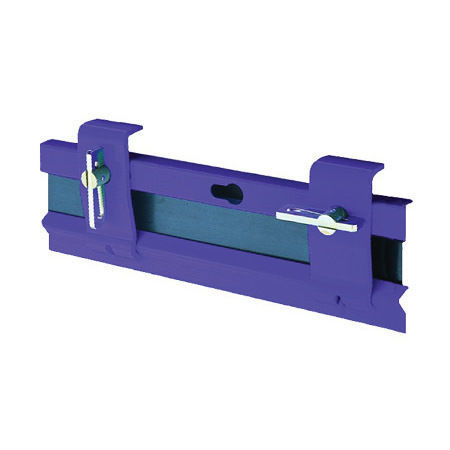

The Flex-Lok™ Skirt Clamp secures skirt rubber at conveyor loading zones and is engineered for severe and heavy loading applications.

Features and Benefits

• Sturdy steel construction with a corrosion-resistant powder-coat finish for extended service life in standard environments.
• Simple installation: skirt rubber restraining bar is clamped between clamp plates for positive retention.
• Side access for installation and maintenance allows safe service without entering the conveyor chute.
• Quick adjustment via locking wedges on the clamp pins for fast tensioning and repositioning.
• Anti-vibration pin prevents pin backing out during operation.
• Optional Mini Flex-Lok available for limited-space applications.
• Available in stainless steel for corrosive environments.

Installation

• Skirt board and skirt rubber are not included.
• One Skirt Clamp set includes: one 6' (1.8 m) clamp runner, 4 clamp plates, 4 clamp pins, and one 6' (1.8 m) restraining bar.
• One Mini Skirt Clamp set includes: one 6' (1.8 m) clamp runner, 3 mini clamp plates, 3 clamp pins, and one 6' (1.8 m) restraining bar.

Technical Specifications

• Module Size: 6' (1800 mm).
• Skirt rubber thickness range: 5/16" to 1" (8 to 25 mm).
• Overall Height: Standard: 7" (180 mm); Mini: 4.5" (115 mm).
• Pin to Clamp Bar: Standard: 4" (100 mm); Mini: 2.5" (65 mm).
