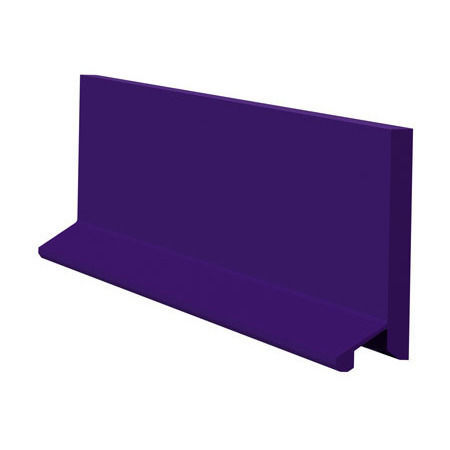

Conveyor skirt board SKPU-DUAL-6X1/2X50

Dual Seal Polyurethane Skirting is a skirting solution designed to provide two contact points along the skirtboard to reduce material spillage and control dust at conveyor load zones. It is manufactured from a proprietary soft-durometer polyurethane blend to minimize belt wear while delivering high tear resistance for extended service life.

Features and benefits

• Secondary (dual) seal: floating contact area behind the main slab reduces spillage and improves sealing along the skirtboard length.
• Compatible with Flexco skirt clamp systems: RMC1, Flex-Lok™ and Flex-Seal™ for straightforward installation and maintenance.
• Available in long rolls to cover full conveyor lengths: 25' (7.6 m) and 50' (15.2 m) sizes.
• 35° chamfer profile eliminates the typical skirting break-in period for immediate effective sealing.
• Soft-durometer polyurethane (65A) provides a gentler contact surface to protect belts while offering exceptional tear resistance for durability in severe applications.

Available profiles / ordering information

• SKPU-DUAL-6X1/2X25 — Ordering Number: SKPU-DUAL-6X1/2X25; Item Code: 91400; Height: 6 in (150 mm); Thickness: 1/2 in (12 mm)
• SKPU-DUAL-6X1/2X50 — Ordering Number: SKPU-DUAL-6X1/2X50; Item Code: 91404; Height: 6 in (150 mm); Thickness: 1/2 in (12 mm)
• SKPU-DUAL-6X3/4X25 — Ordering Number: SKPU-DUAL-6X3/4X25; Item Code: 91401; Height: 6 in (150 mm); Thickness: 3/4 in (20 mm)
• SKPU-DUAL-6X3/4X50 — Ordering Number: SKPU-DUAL-6X3/4X50; Item Code: 91405; Height: 6 in (150 mm); Thickness: 3/4 in (20 mm)
• SKPU-DUAL-8X1/2X25 — Ordering Number: SKPU-DUAL-8X1/2X25; Item Code: 91402; Height: 8 in (200 mm); Thickness: 1/2 in (12 mm)
• SKPU-DUAL-8X1/2X50 — Ordering Number: SKPU-DUAL-8X1/2X50; Item Code: 91406; Height: 8 in (200 mm); Thickness: 1/2 in (12 mm)
• SKPU-DUAL-8X3/4X25 — Ordering Number: SKPU-DUAL-8X3/4X25; Item Code: 91403; Height: 8 in (200 mm); Thickness: 3/4 in (20 mm)
• SKPU-DUAL-8X3/4X50 — Ordering Number: SKPU-DUAL-8X3/4X50; Item Code: 91407; Height: 8 in (200 mm); Thickness: 3/4 in (20 mm)

Technical specifications

• Material: Soft durometer urethane (65A) with exceptional tear resistance.
• Temperature rating: -20°F to 180°F (-30°C to 82°C).
• Roll sizes: 25' (7.6 m) and 50' (15.2 m).
• Chamfer: 35° profile to eliminate break-in period.
