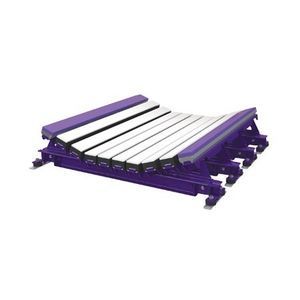

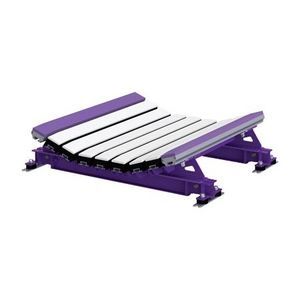

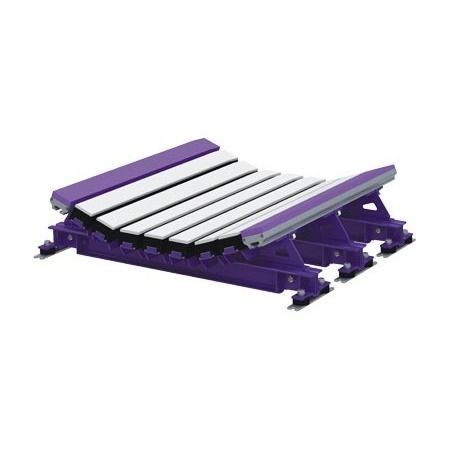

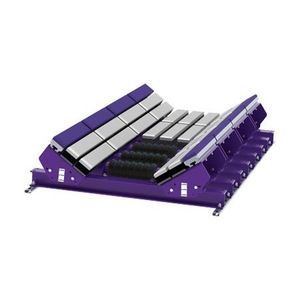

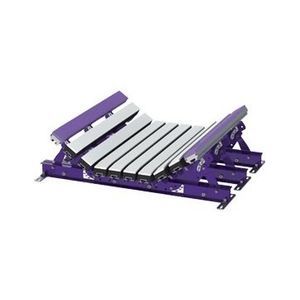

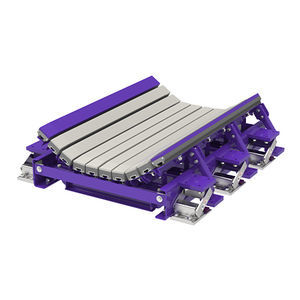

Conveyor belt loading station impact bed DRX™ 750

The DRX™ 750 Impact Beds are heavy-duty conveyor impact beds engineered to deliver maximum belt protection in the load zone. The system integrates Velocity Reduction Technology™ and robust components to absorb impact energy while simplifying maintenance.

Features and Benefits

• Entire system engineered for superior belt protection in the loading area
• Exclusive Velocity Reduction Technology™, including Impact Bar Supports and Isolation Mounts, provides two levels of impact-absorbing force reduction
• Slide-Out Service enables fast, safe maintenance access
• Troughing angles: 20° and 35° (other angles available by special quote)
• Available bed lengths: 4' (1200 mm) and 5' (1500 mm)

Installation

• The Impact Bed Handy Wrench is recommended for maintenance and installation (see Installation Tools)

Shim Requirements (summary of tables)

• For CEMA C or D idlers (5" / 125 mm and 6" / 150 mm):
  • 24"–36" (600–900 mm): 5" idlers — use (1) shim kit and shim idler up 0.5" (13 mm); 6" idlers — no kits required
  • 42"–72" (1050–1800 mm): 5" idlers — no kits required; 6" idlers — use (1) SHIM-KITL and shim bed up 0.5" (13 mm)
• For CEMA E idlers (6" / 150 mm and 7" / 175 mm):
  • 36"–60" (900–1500 mm): 6" idlers — use (3) SHIM-KITL and shim bed up 1.5" (38 mm); 7" idlers — use (4) SHIM-KITL and shim bed up 2" (50 mm)
  • 72" (1800 mm): 6" idlers — use (4) SHIM-KITL and shim bed up 2" (50 mm); 7" idlers — use (5) SHIM-KITL and shim bed up 2.5" (64 mm)

Technical specifications

• Model: DRX™ 750
• Manufacturer: Flexco
• Maximum belt speed: 1000 fpm (5 m/sec)
• Maximum temperature rating: -40°F to 180°F (-40°C to 82°C)
• Impact bar material: UHMW polyethylene, rubber cushion and aluminum extrusion
• Impact energy / Impact rating: DRX750 — 200 to 750 lb-ft (≈25–100 kg·m)
• Available belt widths: 24" to 72" (600 to 1800 mm)
• Bed lengths: 4' (1.2 m) and 5' (1.5 m)
• Troughing angles: 20° and 35° (other angles available by special quote)
• Tonnage rating examples: approximately 8,100 to 19,000 ton/hr depending on belt width and bed length (varies by variant)
• Maintenance: Slide-Out Service for easy access; compatible installation tool: Impact Bed Handy Wrench
• Replacement parts & accessories available: Impact Bar Bolt Kit, Impact Bar Supports, Isolation Mount Kit, Impact Bars (UHMW variants), Shim Kits, Slider Bars, Handy Wrench, etc.
