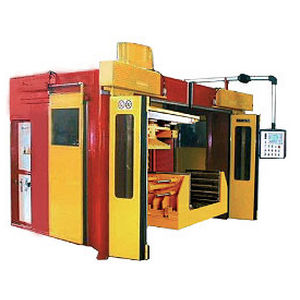

Roberts Sinto's SCC Core Center revolutionizes core production. The SCC Core Center uses the most advanced technology in core machine processing to produce intricate cores from a few ounces up to 130 lbs.
Controls:
- PLC Controls
- Touch Screen
- Diagnostics
- Linear Transducers
The SCC Core Center controls allow the complete operation, set-up and machine monitoring from a single touch screen control mounted on the front of the enclosure. All major operations are hydraulic and are controlled by linear transducers providing fast, accurate operation.
Continuous Clamping of Core Box
The SCC Core Center continuously clamps the core boxes during the core making process. The blow head and gassing head are moved to the core box, keeping the mechanism simple and reducing the possibility of finning.
Special Air Flow Fluidizing Blow Chamber
The special blow chamber fluidizes the sand allowing the operator to make high-density intricate cores. The SCC Core Center will blow cores from a few ounces up to 130 lbs.
Horizontal / Vertical Core Boxes with Quick Change
The SCC Core Center can use both horizontal and vertical core boxes. A vacuum clamping system allows the SCC Core Center to use existing tooling and simplifies set-up.
Total Self-Contained System
The SCC Core Center is a complete system including mixer and gas generator, all contained in an environmentally friendly system
|
|
DISA core machine can be ideally adjusted to meet particular production require-
ments: Regarding automation degree, process technology and performance. Following process technologies are available:
- Cold-Box
- Hot-Box
- Croning
- SO2, and other
The basic series for core volumes of 10 l to 200 l can be designed for horizontal, vertical or horizontal and vertical parting and offer a number of conceptual possibilities with regard to quality, automation and capability.
|
|

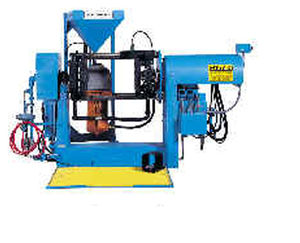

Hot Box
Please call or see a Roberts Sinto representative for information on our many Hot Box Core equpiment machines.
|
|
|

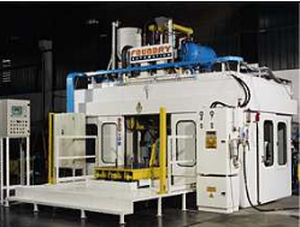

FOUNDRY AUTOMATION srl designs and manufactures equipment for core production using the processes of Cold-Box, Hot-Box and Croning. All machines are conceptualized and manufactured according to rigorous standards of reliability and assurance. All machine frames, closing forces, and individual components are analyzed and verified to guarantee quality and reliability over time. "Quality without compromise" distinguishes the FOUNDRY AUTOMATION srl product on the world market.
|
|

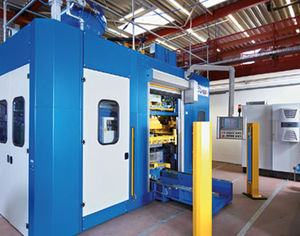

FRITZ HANSBERG manufactures a full range of high-volume core machines for all cold-box and hot-box processes.
Available with shoot chamber capacity from 5 to 300 l, these high-performance, world-class machines are truly built for the foundry, designed and manufactured to be employed on a continuous basis for 6 days/week, 24 h/day.
DV / R Series
- Vertical core box split
- Production rate up to 300 cycles/h
- Core box clamping between shooting and curing
- Five stations allowing for the use of up to five different core boxes
- Core removal on take-out belt
- Cold-box versions (all processes)
|
|
CORE-SHOOTING MACHINES
Core-shooting machines for cold-box, hot box and shell moulding processes. Shooting head capacity from 12 to 120 l for vertically or horizontally-split core boxes, single or multiple stations
|
|
· Universal machine for jobbing foundries
· Flexible, fast, and extremly reliable
· For cold core hardening processes
· Shoot volume from 10 to 150 liters
· Accepts vertical & horizontal tooling up to six parts
· Rapid and simple tooling change - over by means of vacuum clamping system
· Hydraulic system for very high closing force
· Computer interface with automatic error diagnostic funtion
· Average machine cycle time from 10 sec. (without gassing, shoot, exhaust)
|
|

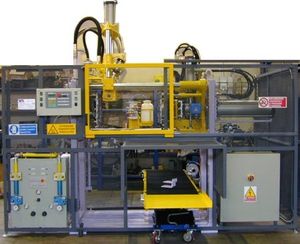

Cold Box-High Repetition
- Integral PLC control panel with remote operator panel
-Height adjustable core belt with cotinuous rotation of forward / backward movement.
- Facility to activate loose pieces
- Automatic spray release agent and box cleaning function (optional)
-Integral gas generator for Amine, Methl Formate or CO2
|
|
|
model SPAR 5 - SPAR 7 - SPAR 10 - SPAR 20 - SPAR 30: completely automatic, with capacity from 5 up to 30 litres, these machines are the ideal solution for the production of large cores runs. They are designed to ensure high quality production, working safety, silent operation and easy maintenance. The finished cores are ejected onto the discharge belt, which indexes forward on every shot, to bring the cores outside the machine. They are available as the basic model or complete with various optional devices, suitable to the customer's requirements.
|
|

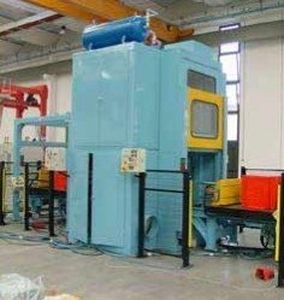

FRITZ HANSBERG manufactures a full range of high-volume core machines for all cold-box and hot-box processes.
Available with shoot chamber capacity from 5 to 300 l, these high-performance, world-class machines are truly built for the foundry, designed and manufactured to be employed on a continuous basis for 6 days/week, 24 h/day.
SF Series
- Horizontal core box split
- Production rate up to 120 cycles/h
- Multiple stations
- Core removal on take-out belt or forks
- Hot-box versions (gas and electrical
|
|
Automatic core blowing machine with side-thrust vertical split of the core box, including moulding station, based on the Shell-Moulding process.
It is designed in particular to produce cores such as pump impellers and ventilated brake discs.
The machine is equipped with a round spray reservoir and blowing head cooling system.
The pneumatically-powered automatic loading system also includes a loading hopper.
The mobile support, attached to the half-box containing the core, is equipped with a device to overturn it onto the belt using cylinder-driven extractors. Heating is generated by an independent burner frame for each half-box, fed by an air and gas mix (LPG or NATURAL GAS) with heat regulation.
The machine is equipped with a 24V control panel for manual or automatic operation in a single or continuous cycle.
From the protective booth the operator can access the machine while maintaining the safety level established by CE regulations.
|
|

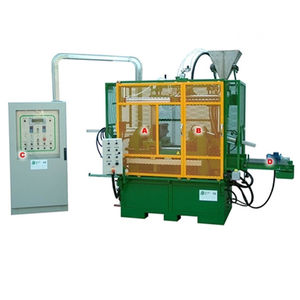

Hot Box Core Shooters
• Hydraulically or pneumatically operated
• Electric heating system
• SBucket elevator for automatic sand fill
• Height adjustable core discharge belt
• Water cooled head and heated plates
• PLC control
• Independent temperature control on both plates
• Facility to control loose plates
|
|
· 4-station rotary core shooter for cold and hot core hardening processes
· 360 shoots per hour capability
· Shoot station accepts up to 4 shoot heads for different shoot areas
· Gassing station accepts up 4 different gassing plates
· Compact machine design with integrated controls, gas generator, and cabin enclosure
· Quick change tooling with vacuum attachment
|
|

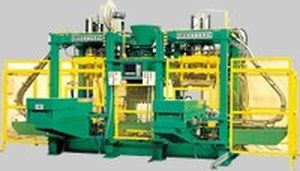

FRITZ HANSBERG manufactures a full range of high-volume core machines for all cold-box and hot-box processes.
Available with shoot chamber capacity from 5 to 300 l, these high-performance, world-class machines are truly built for the foundry, designed and manufactured to be employed on a continuous basis for 6 days/week, 24 h/day.
DO / BCT Series
- Horizontal core box split
- Production rate up to 110 cycles/h
- Upper and/or lower ejection
- Core box clamping between shooting and curing
- Lower core box displacement by means of transfer car
- Core removal on take-out belt, forks, or definning/removal tooling
- Suitable for core handling by means of manipulator/robot
- Machine upper part transfer
- Cold-box (all processes) and hot-box (gas and electrical) versions
|
|
· High production machine for 24-hour continuous operation
· For cold or hot core hardening processes
· Shoot volume from 10 - 150 liters
· Single or multiple shoot head(s)
· Accepts vertical & horizontal tooling up to six parts
· Automatic tool changer (with LFB series)
· Gassing hood with integrated cope eject plate
· Progressive central lubrication
· Computer interface with auto-matic error diagnosis function
|
|
Automatic core blowing machine with top-to-bottom thrust and vertical split of the core box, including moulding station, based on the Shell-Moulding process.
The machine is equipped with a direct flat spray reservoir and blowing head cooling system. The pneumatically-powered automatic loading system also includes a loading hopper.
The mobile support, attached to the half-box containing the core, is equipped with a device to overturn it onto the belt using cylinder-driven extractors.
Heating is generated by an independent burner frame for each half-box, fed by an air and gas mix (LPG or NATURAL GAS) with heat regulation.
The machine is equipped with a 24V control panel for manual or automatic operation in a single or continuous cycle.
From the protective booth the operator can access the machine while maintaining the safety level established by CE regulations.
|
|
Automatic core blowing machine with side-thrust vertical split of the core box, including moulding station, based on the Shell-Moulding process.
It is designed in particular to produce cores such as pump impellers and ventilated brake discs.
The machine is equipped with a round spray reservoir and blowing head cooling system.
The pneumatically-powered automatic loading system also includes a loading hopper.
The mobile support, attached to the half-box containing the core, is equipped with a device to overturn it onto the belt using cylinder-driven extractors. Heating is generated by an independent burner frame for each half-box, fed by an air and gas mix (LPG or NATURAL GAS) with heat regulation.
The machine is equipped with a 24V control panel for manual or automatic operation in a single or continuous cycle.
From the protective booth the operator can access the machine while maintaining the safety level established by CE regulations.
|
|
model SMEC 15 - SMEC 25 - SMEC 35: fix, with bottom blowing
These strong, simple and functional machines are the ideal solution for the production of small, medium and large runs of cores, using the "shell" process. They do not require foundations and are designed to ensure high quality production, working safety, silent operation and easy maintenance. They are available as the basic model or complete with various optional devices, including fold-down core ejection device complete with conveyor belt for easy core removal, allowing for a fully automatic repetitive cycle. On request, Primafond can construct fixed machines with sand shooting from the top or side.
|
|
|
|
|
|
Automatic core blowing machine with vertical split of the core box, including moulding station, based on the Shell-Moulding process.
The mobile unit that holds the core box and the reservoir attached to the rods rotates 180° to spray at any point between the bottom and the top and to return to the bottom, tilting +/- 45° to make it easier to empty the cores, if required.
The machine is equipped with a direct flat spray reservoir and blowing head cooling system.
The pneumatically-powered automatic loading system also includes a loading hopper.
The mobile support, attached to the half-box containing the core, is equipped with a device to overturn it onto the belt using cylinder-driven extractors. Heating is generated by an independent burner frame for each half-box, fed by an air and gas mix (LPG or NATURAL GAS) with heat regulation.
The machine is equipped with a 24V control panel for manual or automatic operation in a single or continuous cycle in addition to a hydraulic control unit to operate the cylinders while wheels with a chain and an inverter are used for the overturning operation.
From the protective booth the operator can access the machine while maintaining the safety level established by CE regulations.
|
|
