Economical electric oven SNOL 2160/220 is designed for various materials and components heat treatment under low temperature, e.g. drying, preheating and other purposes.
•Circulation fan.
•Mild steel working chamber.
•Control block separated from the oven.
•Micro processor temperature controller.
•Moving bottom cart for loading up to 4 t.
•For smaller components special shelves can be placed on the moving cart.
•Two ventilation holes on the upper part.
•Vertical flow hot air circulation.
•Powder painted exterior.
•High quality thermoinsulation materials.
•Low power consumption.
•One year limited warranty and later service.
•Two years limited warranty for temperature controller and later service.
|
|
Explosion-proof safety vacuum drying oven for EX-Zone 2
BINDER VDL EX-Zone 2 series:
Same quality as the VDL series, but with some added safety features: The VDL series EX-Zone 2 is designed for operation in explosion hazard areas EX-Zone 2, in full compliance with ATEX requirements. Our special safety package eliminates any risk.
Find out more: www.vacuum-drying.com
|
|
Applications: cooking, degassing, burning, polymerization, pre-heating, recovery, drying, stabilization, sterilization, vulcaniztion, tests,...
2 temperatures: 200°C maxi or 300°C maxi (depending on the option).
Eight sizes: from 125 litres to 2520 liters.
Several options and accessories to adapt the oven to your needs.
|
|
|
|
|
|
New line of electric ovens are designed for thermal treatment such as drying, heating, thermal testing in an air-flow environment.
Forced convection makes more effective drying and quicker heating, homogeneity of temperature. Good technical parameters ensure to high-quality results. This line allows choices of oven chamber from mild steel LFP or stainless steel (LFN). Available is 5 sizes at temperature ranges up to 300 ºC.
• Micro processor temperature controller with autotuning function
• Double over heat protection system
• Digital setting of temperature
• SSR relay
• High quality thermoinsulation material
• Chamber made of mild steel or stainless steel
• 3 shelves
• Horizontal air flow
• Air outlet control by valves operated manually
• Regulation of fan speed (0-100%)
• Acoustical signalization
• Short heating time
• Heating is from four sides
• Hermetic closing door
• Low power consumption
• High precision level
• Interface RS 232 and software for E5CK 2008
• Interface RS 485 and software for TCViews
• Limited warranty up to two years and later service
|
|
|
|
|
|
Electronic Drying Chamber
OPTIMUM DESIGN
Utilizing a performance enhanced, low-temperature, high volume, updraft re-circulating hot air design, the Omegasonics Optimum 6500 is the ideal machine for drying all types of electronic components after wet cleaning. Whether drying small electrical and electronic content after restoring in our line of Ultrasonic Restoration Pro System Units or our E Series line of Electronic Cleaning Stations, the Optimum 6500 is the perfect fit.
With three (3) adjustable shelves, handling large items or a variety of small electronic components is a snap. There is no prolonged waiting time either for the internal air to get up to the desired temperature. With the 6500, optimum air temperature of 120°F is achieved in less than 60 minutes from a 70°F ambient.
Unique Features:
Updraft Re-circulating Hot Air Design
3450 Watts finned heating element
Heat circuit over-temperature protection
Dual blower design 990 cfm
User friendly illuminated control panel
Digital temperature controller fully adjustable
Digital timer controlled process time
Electrical: 1 phase, 240 volts, 20 amp
|
|
Batch Drying curing Oven
Industrial tailor-made ovens from 1m³ to 200m³ designed to meet your process needs of insulation, temperature and power.
With a temperature range of 20°C up to 500°C these industrial ovens are suitable for all applications of preheating, drying, cooking, polymerization, curing, tempering, stabilization, cooling.
|
|
Explosion-proof heating oven
and drying oven VFT 60/90
The VFT 60/90 is an ex-proof fresh air heating and drying oven. The oven is electrically heated and designed according to the fresh-air-principle. Due to the small floor space required it is also suitable for installation in laboratories and in production departments. The advantages, e.g. no restriction on the volume of combustible solvents, suitable for solvents with the temperature classes T1, T2, T3, T4 in the explosion groups IIA and IIB, precise temperature uniformity in the whole working chamber.
Working chamber volume 300 liters
Temperature 200 °C
Temperature classes T1, T2, T3, T4
Installation Zone 2
|
|
Heating ovens and drying ovens for
laboratory and production department, series VTU
These heating and drying ovens are available in 7 sizes with a comprehensive range of accessories, e.g. loading trolleys, temperature controller etc. They can be used globally for heating and drying processes in the production and research.
Working chamber volume 200 – 8.000 liters
Temperature range 250 °C, 300 °C and 350 °C
Air flow horizontal
Heating ovens and drying ovens for solvent-based
materials as per EN 1539, series VTL
These heating and drying ovens are available in 7 sizes with a comprehensive range of accessories, e.g. loading trolleys, temperature controller etc. They can be used globally for heating and drying processes in the production and research.
Working chamber volume 200 – 8.000 liters
Temperature range 250 °C, 300 °C and 350 °C
Air flow horizontal
|
|
Microwave heating and drying cabinet,
type VHM HEPHAISTOS
The newly developed microwave system, VHM HEPHAISTOS, is an internationally patented system and characterised by a very high field homogeneity.
The high field homogeneity allows for the manufacture of high-quality CFC aircraft structures, for instance.
Advantages:
Reduction of production costs due to shorter heating, process and cooling times compared to conventional methods. Use of metal parts (e.g. metal tools and charging systems) possible in the microwave field
Specific volumetric heating of products; the furnace chamber itself is not heated
Sizes from laboratory up to large scale (e.g. aircraft industry) are available (working chamber volume of the shown systems 750 and 4200 ltr); other sizes upon request
Broad spectrum of use
Technical Data
Nominal temperature: 400 °C
Heating: microwave
Control system: S!MCON/32-Net
|
|
Rotary drying curing oven (Turntable Ovens)
This concept of a turntable oven with simplified and economic mechanization, allows the parts or materials to be recycled to the position of loading and unloading.
These designs and custom-made constructions from 40°C up to 400°C facilitate your establishment on site.
Several independent heating zones and integrated cooling possible.
Manual loading and unloading at the same position with operator's safety provided by virtual guardrails, doors or bi-manual controls.
Automatic loading and unloading by robot or manipulator with a positioning accuracy ensured by indexing mechanism. Very fast transfer time to operator or robot.
|
|
|
|
|
|
Gullco stationary electrode ovens provide efficient dry storage for electrodes and wire reels. The six sizes are scaled to meet the needs of any shop. (10lbs.– 1000lbs)
Gullco portable electrode ovens are ideal for shop or field use. six models are available to suit any requirement. All are light weight, durable, and easily carried to the welding site. They are insulated for accurate temperature control and efficient operation. Each welder can carry only the electrodes required for the job. All models are equipped with rod lifters to simplify loading and unloading of electrodes. The Dry-Pak® is a tightly sealed thermal container which holds oven conditioned electrodes below AWS or ASME moisture levels for more than twenty- four hours. It does not require electricity! The other portable ovens operate on 115 or 230 volt power. Choose one model or an assortment of models to suit a job or shift length.
- Eliminate the risk of costly rework and rejects
- Ensure consistent physical properties and X-ray quality welds
- Protect Low Hydrogen quality in electrodes and flux core wire
- Protect coatings on Aluminum, Bronze, Cast Iron, Stainless and other
electrodes
- Prevent electrode wastage
|
|
|
Industrial drying ovens of drying of 100°c with 500°c. A whole standard range of 20 liters to 2000 liters.
|
|
GBC FE oven for welding electrodes drying & storage.
Temperature range from 0° C to 400° C, with completely automatic programmable drying or heating cycles, power from 1700 W to 6000 W.
Load capacity up to 300 Kg.
High insulation and safety grade guaranteed by door latch avoiding any accidental door opening while temperature is in danger range for operator.
Supplied with internal separate shelves for accommodation of different welding electrodes size and compound.
|
|
Where autoclave curing is not required, Aeroform have perfected their precision temperature oven technology in conjunction with the control systems developed for the autoclaves, providing gas and electric ovens of unparalleled performance, to any size with temperature ranges currently up to 600°C
|
|
Type YOU 60/60
With a good capacity of filling, it occupies little place and has a performance higher than the classical devices of laboratory.
They are the great advantages of YOU 60/60.
Short durations of heating, briefs drying cycles via a guidance of optimal air and a renewal of important air as well as a remarkable homogeneity of the temperature in all useful volume, represent only some of the characteristics of this apparatus.
Useful volume: 216 liters
Range of temperature: 200°C
Guidance of the air: vertical or horizontal (TUH)
|
|

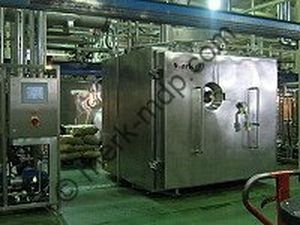

Laboratory-vacuum drying cabinet with safety hood and glove box connection for Laboratory-vacuum drying cabinetgentle drying of active substances:
* CIP-compatible
* Gap-free interior construction
* Halarized product trays
* Drip-free thermal oil supply
* Conductive transport rollers suitable for pharmaceutical applications
* Completely bonded insulation and welded chassis
* Doors can be hinged on left or right sides
* Special pivot arm for opening door in glove box mode
* Inflating seal on safety hood and glove box
|
|
drying oven
Standard configuration with internal chamber, supporting frame and external cabinet made of S. S. AISI 304 (upon request, the internal chamber can be made of S. S. AISI 316).
Drying temperature up to 100°C, with tolerance lower than +/- 3°C on the fixed set-point.
Heating by means of electric heaters or steam battery
Group of electric heaters with variable current intensity for easy internal temperature control
Filters on the external air intake for wet air ejection with filtration degree ASHRAE 85% DOP.
Sturdy loading footplate with stainless steel tilting chute for introduction of trolleys
Stainless steel trolleys and trays for product loading
Scotch-brite finishing.
|
|
Universal drying ovens LHT with stainless stell housing. Options: Tmax: 300°C, air circulation, glass door available (Tmax. only 220°C), program controller.
Vacuum Ovens LHT Vac. Tmax. 200°C. Vacuum min. 2mbar, partial pressure control 10-1100 mbar. Separately heated trays with temperature control. Electronic temperature and pressure control with display. Option: different pumps, underframe with vaccum pump, additiional trays
|
|
The VFT 60/90 is an explosion-proof drying oven of drying. The apparatus is heated with electricity its principle rests on the principle of the forced fresh air. From reduced dimensions of its obstruction outside, it not only is very well adapted for the production, but also for work of laboratory. The advantages the such almost unlimited capacity of combustible material filling and, the aptitude for solvents of the classes of temperature T1, T2, T3, T4 belonging to the groups of explosion IIA and IIB as well as the remarkable homogeneity of the temperature in all useful volume represent some points among others which make it interesting.
|
|
|
|
|
|
Type VFT 60/90
Model VFT 60/90 is an explosion-proof drying oven of drying. The apparatus is heated with electricity and works with 100% of new air inlet permanently.
From reduced dimensions of its obstruction outside, it is very well adapted for the production, but also for work in laboratory.
With an almost unlimited capacity of combustible material filling it is adapted for solvents of the classes of temperature T1, T2, T3, T4 belonging to the groups of explosion IIA and IIB
Useful volume: 300 liters
Range of temperature: 200°C
Classes of temperature: T1, T2, T3, T4
Installation of the apparatus: Zone 2
Range VTUW
The quantity of combustible materials to put in these drying ovens of drying is almost unlimited.
These apparatuses can be installed in the zones E.G. 1 and 2 since the volume of foul air is supervised in a permanent way.
What eliminates the risk from an explosion. The VTUW is particularly adapted to solvents for the classes of temperature T1, T2, T3, T4 appropriate to the groups of explosions IIA and IIB. With these apparatuses, one can use coolants coming from other installations e.g.: warm water or vapor.
Useful volume: 700 - 3125 liters
Range of temperature: 20°C - 200 °C
Classes of temperature: T1, T2, T3, T4
eil: Zone 1 and 2
|
|
Type YOU 60/60
With a good capacity of filling, it occupies little place and has a performance higher than the classical devices of laboratory.
They are the great advantages of YOU 60/60.
Short durations of heating, briefs drying cycles via a guidance of optimal air and a renewal of important air as well as a remarkable homogeneity of the temperature in all useful volume, represent only some of the characteristics of this apparatus.
Useful volume: 216 liters
Range of temperature: 200°C
Guidance of the air: vertical or horizontal (TUH)
Range VTU
The drying ovens with pulsated air are available in 7 volumes with rich equipment and have a broad choice of accessories.
Trays, grids, plates.
Carriage of loading.
Filter fresh air.
Carry to port-hole.
Etc...
Useful volume: 200 - 8000 liters
Range of temperature: 250°C, 300°C and 350°C
Guidance of the air: horizontal
|
|
|
|
|
|
AUREL A206 Dryer/Curing Oven system
Description
The AUREL A206 dryer system is special designed for predrying of pastes in thick film technology.
Applications
• IR Drying of Thick Film pastes
• IR Curing of adhesives and polimeric pastes
Prior to being submitted to be firing process, substrates with screened-on inks/pastes must be predryed to evaporate the solvents.
Infrared heat is the only heating method available by which thick film pastes can be properly dryed with optimum results.
This is because infrared heat waves penetrate the material and dry the inside of the material first, then dry outwardly to the surface.
Convenction heat causes the outside of the paste to dry first forming a film through which it is difficult for the solvent within to pass.
The solvents actually become partially trapped and as they eventally are released cause cracks in the surface of the material.
Consequently the surface is irregular, resulting in reduced conductivity or inconsistent resistivity.
The new model A206 predrying oven was designed to prevent the problems outlined.
It's design criteria are based on extensive experience in thick film technology, to provide the user with a machine that assures optimum results.
|
|
Fast drying of ceramic grinding wheels on metal racks. Loading and unloading by lifting truck.
MKT 30 1600/2500/5200
Special ventilation system for even drying, roller curtain door.
Microwave power: 30 kW
Useful chamber dimensions: 1200 x 2000 x 4700 mm (w x h x l)
Number of magnetrons: 38 with 800 W each
Product-ID: 72
|
|
|
On principle, varnish chamber dryers differ from ovens without solvent evaporation through the monitoring equipment and exhaust fan installed for this purpose.
|
|
Monoblock Oven
* Up to 350 °C (662 °F)
* Standard line starting at 1 m3 (35.31 ft3)
* All applications: (drying, dehydration, baking, polymerisation of products with flammable substance, liquid and powder painting)
* Electronics controlled by a PLC
* Static relays or thyristor-controlled power controller
* Powered by electricity, gas, heat exchanger...
|
|
DRYING OVENS
EMME GROUP designs and builds ovens for this sector using unique systems which make them completely safe, simple to use, with close monitoring of the temperature in use, higher uniformity of heat spread and energy saving ability compared to other ovens on the market.
These ovens are used for:
* Aluminium treatment
* Treating surfaces
* Thermal treatement of metal, plastics and silicone materials
* Drying
* Drying varnishes
* Drying leather
* Silk-screen
* Heating systems
Our technical office can design and produce ovens according to the client’s specific needs.
Experience, professionalism and a good post-sales assistance including technical assistance guarantee the top quality of our products which are all certified and in keeping with current laws and regulations.
|
|
MINI OVEN “JOLLY”
This dryer is designed for the fast drying of serigraphic dissolvent ink or water ink on various applications. Easy operation and maintenance and high drying efficiency are the main characteristics of this machine.
Endowed of kappa for aspiring attack, mounted on 4
Self-locking wheels.
Dimensions: tape length 150 cm, Height from earth 80 cm, Weight 87 kg.
|
|
Manually operated furnaces, where the product is layered on trays.
The product is then loaded by the operator via a single door or double doors. After filling the furnace and closing the doors, the operator can set the variable temperature controller and start the furnace.
Typically used in low baking of painted surfaces of small batch sizes away from the main production line.
Working temperatures depend on customer’s requests.
|
|
ANCILLARY EQUIPMENT FOR EXTRUSION LINES
- PREHEATING OVEN -
Type FR1
Preheating oven; complete with temperature control
- total installed power kw 8 - total lenght mm 1000.
|
|
