Applications:
heating or het-loss free transport of: oil, grease, wax, resin, tar, paint, water, carbon dioxide, plastics, sealants, etc...
Emplyable pressurised hoses of PTFE from DN 4 to 50 mm; pressure train depending on nominal width up to 600bar.
|
|
Heater Hose
Characteristics of Flexfab's silicone heater hose...
Continuous operating temperature -65°F (-54°C) to +300°F (+150°C). Nylon fiber reinforced. Resistant to coolant additives. Flexfab silicone heater hose is shipped on wooden reels or handy dispenser cartons containing 25' or 50' of hose. For high temperature applications, Nomex® reinforcement is available.
|
|

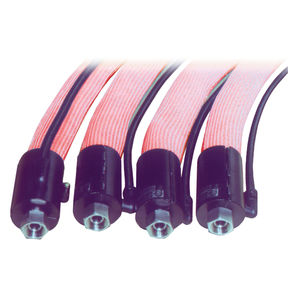

HEATED HOSES - for gas and liquid transfer.
During Gas Analyzer Sampling, Hot Melt Transfer, Petroleum or Chemical Transfers, or Food Processing, it is needed to maintain critical temperatures, to avoid condensation of gas or drop in fluid temperature. Thermo Heated Hoses aptly cater to this need, by ensuring that the fluid in the process tube (part of the heated hose), looses no heat.
These flexible and lightweight tubes can withstand aggressive high pressure fluids and high temperatures involved in transfer of fluids.
Construction
Heated Hose comprises of a process tube bundled with insulated electrical heating element and wrapped with a heat reflecting foil. Temperature sensor is provided at about 300 mm from power connection end. This bundle is insulated and provided with an outer jacket. Ends are sealed suitably and electrical connections for both power and control are brought out.
|
|
|
|
|
|
At ECAS, we manufacture heating cables and flexible electric elements, for temperature control systems in networks of pipes.
The main purpose of pipe tracing is to avoid and compensate for the loss of heat certain fluids undergo during particular production processes.
Of utmost importance is that the fluid or product flowing in the pipes does not freeze, change viscosity, or harm the piping network.
For sanitary hot water systems, our pipe tracing system avoids the cooling of the water, especially when it is not moving, avoiding the spread of Legionnaire disease.
Heating cable:
For pipe tracing projects we recommend constant power parallel heating cable, model CTCS.
The parallel heating cable has a constant lineal wattage even when it is cut to required length.
Control and regulating :
We have different types of control and temperature regulating solutions, which are adaptable to all kinds of projects, and/or the needs of our customers.
Below are some of the control systems:
DPA: Control and regulation box to connect between 1 and 4 circuits, from 8A to 63A at 230V.
EWDR 902 - T: Digital Thermometer/Thermostat.
ETV - 1991- P: DIN/Omega rail electronic modular analogue thermostat.
ETN - 2P - 1441: DIN/Omega rail electronic modular analogue thermostat with mini-switchboard.
|
|
Application Pontencial:
Submersible heaters, containers, valves, pumps, form, process and plate heaters.
This mineral-insulated heating cable with a braiding of high grade stell 14541 is applicable within extreme corrosive and damp surroundings. The HIL heating cable is extremely robust and easy to bend. The stainless stell brainding is waterlight, oiltight and gastight. An utilisation temperature of up to 800°C enables a variety of applications. The cold end of the heating cable can be fed into a terminal box and connected by means of a MX20X1.5 screwed connection.
|
|
|
The heating sleeve is a special physical form that can be adapted to the specifications of tubes and cartridge. Conventional dimensions as well as special shapes for one or more casks can be realised. The finished heater consist of a heated inside tube, thermal insulation and an outer jacket. Theses are available in a diverse array of high- quality materials that can be selected to match the application. The compact design with self-regulating PTC heating elements or standard heaters with integrated regulation guarantee optimal functionality and the highest level of safety.
|
|
STEREO-HEAT® Impedance Heat Tracing is a direct current electric traced system across the ends of a steel or alloy pipeline section that provides even heat distribution on short to medium runs of preinsulated pipe.
STEREO-HEAT® Impedance Heat Tracing is based on the application of AC voltage across the ends of an insulated pipeline section on short and medium runs of pipe causing a current flow in the pipe walls that generates heat. This is an engineered custom designed system within ANSI/IEEE 844, NEC 426,427 and your specification requirements. This system can be retrofitted onto an existing pipe system or as part of a preinsulated PERMA-PIPE® system. Applications such as liquid food products, oil, asphalt, resins, napthalene, Urea, food oils are just a few systems that utilize STEREO-HEAT® tracing.
|
|
CH-Constant Watt High Temperature Maintenance Electric Trace Bundles
Maintain Temperatures up to 400˚F (204˚C)
Process Tubes 1/4” to 1/2” O.D. (6mm to 12mm) - Single or Dual Tube Designs
Applications:
Analyzer, impulse and instrument lines; small diameter process lines, stack gas sampling lines; and utility lines.
|
|
| ... products without technical information |
| |
Applications:
Heating or heat-loss free transport of: oil, grease, wax, resin, glue, hotmelts, tar, paint, water, carbon dioxide, plastics, sealants, etc.
|
|
|
|
|
|
Nordson DuraBraid hot melt handgun hoses operate safely with improved durability and performance that reduces costs and downtime.
New rugged, wear-resistant braid covering exterior eliminates cumbersome corrugated wrap, retains flexibility and improves durability.
Hose covering withstands abrasion caused by friction or dragging of the hose on workbenches or other surfaces in handgun applications.
New gun cuff design that improves the durability of the AD31 hoses in aggressive high-movement applications.
Aramid insulation significantly improves chemical and moisture resistance.
Insulation does not melt or support combustion in the air, allowing hoses to retain flexibility and electrical mechanical properties beyond system operating temperatures.
Hose components are precision fabricated and calibrated prior to assembly, eliminating the need for temperature control calibration at installation.
Controlled watt-density heating element minimizes hot spot potential, reducing char.
Fits all Nordson handguns including AD-31 and AD-41
|
|
FHK pipe system
Flexible, endless production, double-walled, monitorable and self-compensating pipe system, -170°C to +150°C, PN 16/25, DN 25-150. Medium pipe: special steel, heat insulation: PUR
Properties:
FLEXWELL district heating cable ® (FHK) is a pipe system that offers a high level of safety thanks to its double-walled design (with metal inner and outer pipes) and its integrated monitoring system.
|
|
Under Floor Central Heating Systems
Polyplumb offers three configurations of under floor central heating suitable for new build, retrofit, or any type of construction. All are compatible with standard central heating boilers and are especially suitable for use with condensing boilers which give maximum efficiency at low output levels.
|
|
... see all the products in the category
Hoses
|
|
|
|
|
The use of under floor heating typically allows room temperatures to be reduced by 1°-2°C when compared with radiators, while still providing the same level of comfort. Each 1°C reduction in room temperature reduces fuel consumption by 6%. This means it is cheaper to run and gives the house a reduced carbon footprint.
As underfloor central heating is the enabler to maximise the use of low or zero carbon technologies for heat generation such as air source heat pumps or geothermal systems, it is key to sustainable indoor environments.
At Polypipe we manufacture the most complete range of floor heating systems for every application. Solid floor systems provide 'thermal mass' solutions and incorporate our unique floor panel, which enhances performance and requires less screed material than other systems.
The patented Overlay system provides a unique retro fit underfloor system, unlocking for the first time the massive potential for energy efficient under floor central heating in existing dwellings.
|
|
|
|
|
|
The application of Induction heating technology in the sector of pipe coating is now a consolidated practice. In fact, the coating’s polymerization process is guaranteed by optimal thermal conditions.
Induction’s experience is confirmed by the fact that we supply the largest companies of the sector in production plants all over the world.
Given the peculiarity of the application, Induction is specialized in supporting the Customer with extremely compact and flexible solutions for all production needs, and with innovative automatic temperature control for respecting process specifications.
The quality of the inductors assures for the supply, which is more subject to wear, a ten-year long duration, while fully respecting system performance.
Thanks to its experience in the piping sector, Induction is able to propose systems for loading, unloading and transporting pipes even of considerable thicknesses.
Due to the particular environmental conditions in which the coating systems are often installed, Induction offers quick and on-time service for any specific Customer request.
|
|
