Autoclave Engineers Offers High Pressure Air Driven Pumps to 60,000 psi
Autoclave Engineers has designed group of Air-Driven, Positive-Displacement, High Pressure Liquid Pumps designed for service with Oil, Water and many Chemicals.
The “ASL Series” is available in a variety of drive ratios and will have both Single and Double Air Drive designs that are capable of up to 60,000 psi (4135 bar). Manual “Hand-operated” options will be made available in our “ACHL Series” pump line. Our AHL Double-Acting, Double Air-Drive Series pumps are designed for those that are looking for the combination of both high flow and high pressure.
Features Include:
• Easy to Install and Operate
• Standard Drive Ratios for Pressures to 60,000 psi (4135 bar)
• Pressure Maintained without Energy Consumption
• Requires No Lubrication
• External Spool Valve for Easy Maintenance
|
|
|

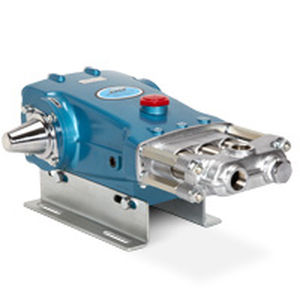

CAT PUMPS triplex, high-pressure, liquid handling, PISTON PUMPS are available in five different frame sizes providing flows from 1 to 60 GPM with pressures up to 1500 PSI. Our triplex PISTON PUMP line includes brass Models 280,290,333, 430, 623,820,1010,1520,2520, 6020, 6040 and stainless manifold options for each. Our PISTON PUMPS provide strong suction capabilities and are ideal for CIP cleaning systems, metering and sanitizing applications. Our triplex high pressure PISTON PUMPS feature the UNIFLOW design using a dynamic seal that moves through a cylinder to deliver a constant flow. Our PISTON PUMPS also feature our patented sleeved-piston rods providing piston rod protection and fast, low cost servicing. Request a quote for a pump or custom pumping system.
|
|
GEHO TZPM
The GEHO TZPM pump is a crankshaft driven three-cylinder single-acting high pressure piston diaphragmp pumps. The unique preformed GEHO diaphragm separates the pumped slurry from all the pump moving parts. This range of pumps is ideal to handle abrasive and corrosive slurries against high pressures at the lowest possible total cost of ownership. High efficiency and reliability strongly contribute to this objective. The TZPM pump range is developed and manufactured by Weir Minerals Netherlands b.v.
Features / Benefits
- capacities up to 900 m3/h
- pressures up to 300 bar
- medium viscosity < 8000 mPas
- extreme abrasiveness
- high corrosiveness
- elevated temperature
- up to 8mm particle size
- up to 75% solids content
|
|
KD716 is a serial pump in sturdy design for low viscous liquids, available in various drive and liquid end configurations.
Options
- special lubrication for inclined pump installation
- integrated water/oil cooler
- integrated gear box for direct drive
- noise hood for power end
- suction valve release for by-pass operation
- pressure gauge connection on discharge side
- suction pulsation damper
|
|
Positive constant displacement, rotary, three screw pump. Flow rate per revolution 9.8 - 307 cm3 in 14 steps.
The three screws, the central driven screw – the power rotor – which meshes with the two sealing screws – the idler rotors –are the only rotating components ot the pump. The axial pressure and friction loads on the pump rotors are hydraulically balanced. The power rotor is positioned axially by the selfcompensated thrust washer arrangement, being part of the hydraulic balancing system of the power rotor. The pump accommodates mechanical shaft seals complying with the DIN 24960 Standard.
|
|
Advantages:
- Working pressures up to 5,000 bar.
- Low noice level even at high cycling speed.
- No mechanical pilot valves.
- Proven reliability under severe conditions.
- Modular, robust and modern design.
- Easy to change ratio of the pump.
- Easy to convert a pump from single- to double acting.
- Light weight air cycling spool.
- Easy maintenance.
WE ARE LOOKING FOR A DISTRIBUTOR IN ITALY. Please contact us if you are interested!
|
|
Together with our standard stainless steel materials matching, we can offer special stainless steels, titanium or bronze.
Temperature ranges up to 350 degrees C. e.g. pumps for thermo oils.
High capacity - external gear pump
Gear dosing pump Stainless steel gear dosing pump in special design
HP radial piston pump (closed design)
High capacity internal gear pumps with integral pressure limiting valve for low noise operation
|
|
High Pressure Pump Series HDP 485
Features
- Power ratings up to 450 kW
- Vertical 3 cylinder design
- Wide variety of complementary ancillaries
technical data
- Rod force: 200 kN
- Stroke:100 mm
- Mean piston speed at n2; 315 r.p.m. = 1,06 m/sec; 380 r.p.m. = 1,27 m/sec; 445 r.p.m. = 1,48 m/sec; 465 r.p.m. = 1,54 m/sec
|
|
HDP 25 High Pressure Pump Series
Features
- Power ratings up to 30 kW
- Vertical 3 cylinder design
- Wide variety of complementary ancillaries
technical data
- Rod force: 17,6 kN
- Stroke: 30 mm
- Mean piston speed at n2; 625 r.p.m. = 0,63 m/sec; 750 r.p.m. = 0,75 m/sec; 900 r.p.m. = 0,90 m/sec
|
|
FORDIA’s Elepumps are the best light-weight, high pressure plungers in the industry.
ELEPUMP KF
The Elepump KF is a heavy-duty high pressure water pump designed for high-demand drilling. Its triplex water plungers offers up to 45 gallons per minute. The new design of the pump features new frame design for increased life expectancy; stainless steel manifold; and new leakage free seal design. The result is a pump that promises long life, minimal down time, and greatly reduced operating costs,
Designed for simple maintenance, Elepump KF requires only periodic oil checks and changes - and worn parts can be replaced quickly and simply without special tools.
|
|
The Hypro 2535S triplex plunger pump is designed for durability, top performance, and convenient servicing. It achieves up to 38 gpm (144 lpm) and 1200 psi (83 bar). The 316 stainless steel two-piece manifold minimizes washout and corrosion. A strong power end including oversized crankshaft, bearings, and connecting rods easily handles abuse caused by start-up and intermittent operation.
Backed by the best warranty in the industry, Hypro pumps are designed for, and not adapted to, the car wash industry, resulting in pumps that deliver higher pressure and increased reliability.
|
|
The Hypro Series 5200 Big Twin piston pump is suitable for applications in high pressure washers for industrial and agricultural cleaning needs. It is also useful as a sprayer pump to apply a wide range of chemicals. The Series 5200 is constructed of cast iron body and cylinder heads, unitized stainless steel valve assemblies and double row ball bearing supported crankshaft.
Performance Information
- Max. flow: 10 gpm/37.9 lpm
- Max. pressure: 400 psi/27.6 bar
- Max. rated speed: 600 rpm
- Max. fluid temperature: 140°F/60°C
|
|
The Hypro Series 5200 Big Twin® piston pump is suitable for applications in high pressure washers for industrial and agricultural cleaning needs. It is also useful as a sprayer pump to apply a wide range of chemicals.
The Series 5200 is constructed of cast iron body and cylinder heads, unitized stainless steel valve assemblies and double row ball bearing supported crankshaft.
|
|
Flow rate is based on 100% volumetric efficiency and 20°C ambient temperature
min. inlet pressure depending on fluid medium
min. rpm depending on rod loading
Gear with force-fed lubrication (> 110 kw with oil cooler)
Standard gear ratios: i = 3,00 - 3,14 - 3,39 - 3,76 - 4,13 - 4,50 - 4,93
Also available to API 674
Special medium such as sea water, glycol, methanol, oils, etc. on request
|
|
Flow rate is based on 100% volumetric efficiency and 20°C ambient temperature
min. inlet pressure depending on fluid medium
min. rpm depending on rod loading
Gear with splash lubrication
Standard gear ratios: i = 2,75 - 3,22 - 3,68
Also available to API 674
Special medium such as sea water, glycol, methanol, oils, etc. on requ
|
|
Flow rate is based on 100% volumetric efficiency and 20°C ambient temperature
min. inlet pressure depending on fluid medium
min. rpm depending on rod loading
Gear with force-fed lubrication (> 110 kw with oil cooler)
Standard gear ratios: i = 3,00 - 3,14 - 3,39 - 3,76 - 4,13 - 4,50 - 4,93
Also available to API 674
Special medium such as sea water, glycol, methanol, oils, etc. on request
|
|
The Jet Edge iP55-75 is a 75-horsepower intensifier pump rated at 60,000 psi (4,100 bar). It is capable of producing output pressures from 1,000 to 55,000 psi (3,800 bar) with flow rates of 0 to 1.5 gallons (5.7 liters) per minute to a variety of cutting, surface-preparation or cleaning tools.
Features
- High efficiency TEFC motor
- 1,500 or 1,800 nominal motor speed (rpm)
- Electronically shifted intensifiers
- Wye-Delta soft start with disconnect
- 0.5 gallon (1.9 liter) high pressure attenuator with 1.45 micron filtration
- Safety shutdown systems
- Automatic safety pressure bleed-down valve
- Thermostatically controlled cooling system
- Programmable Logic Controller (PLC) for operation and safety monitoring
- Axial piston, variable displacement, pressure-compensated hydraulic pump
- Liquid-filled pressure gauges
- UHP safety shielded tubing
|
|
|
|
|
|
AccuStream intensifier waterjet machines give you a choice of 30-, 50-, 75-, 100- or 150-horsepower units with adjustable pressures up to 60,000 psi. All AccuStream waterjet machines feature the AccuStream-built AIT Technology for maximum cut pressures and peak performance under the most demanding applications.
No other waterjet cutting machine incorporates the features of the AIT intensifier to deliver the simplest, easiest-to-operate, most reliable system. AccuStream's intensifier technology combines innovative design features, quality manufacturing, and carefully selected materials to maximize maintenance intervals, simplify component replacement and minimize cost of operation.
Key Features
Whatever your requirements, there's an Accustream intensifier waterjet cutting machine to meet your needs. Accustream's menu of options and accessories allows you to fully tailor your waterjet cutting machine to your specific needs. Before you start looking at options, you'll be impressed with the long list of standard features and capabilities packed into every Accustream AS intensifier waterjet pump. These features and capabilities are normally found only on waterjet pumps costing thousands more - and some are not available anywhere else!
|
|
High Pressure Pump
STREAMLINE Classic SL-V 50
Our STREAMLINE™ SL-V Classic reflects the new market
requirement for a completely self-contained, easy
to hookup unit, guaranteeing you top HSEC intensifier
technology in an affordable package.
Nominal Power Rating: 37 kW (50 PS)
Working Pressure: 500-3.800 bar
Max. Flow Rate: 3.8 l/min
|
|
|
Self-serve carwash and tunnel prep unit owners across the country are making the switch to Hypro’s 2300 Series plunger pumps. Backed by the best warranty in the industry, Hypro pumps are designed for, and not adapted to, the car wash industry, resulting in pumps that deliver higher pressure and increased reliability.
|
|
|
|
|
|
The Dual Pump Package operates on the 3rd generation cutting model of OMAX Intelli-MAX® Software, which accommodates cutting at 80 hp utilizing two P4055V pumps.
The P4055V direct drive plunger pump operates at full power with a very low noise level and is driven by a variable speed electric motor for variable output pressure. Based on a single design platform, the pump delivers more than 90% of the electrical input power to the cutting nozzle and provides more cutting power per kilowatt than pumps using intensifier technology. Unlike intensifier pumps, the P4055V uses variable frequency drive (VFD) technology, which prevents the in-rush of currents upon starting the pump.
OMAX designed the Dual Pump Package for shops that specialize in cutting thick, difficult to machine materials and have high capacity production or multiple nozzle requirements. In addition to offering the highest cutting power on the market, the Dual Pump Package is a proven and reliable technology that operates both pumps at optimum efficiency and has an extended seal life in excess of 500 hours. Additionally, the system provides highly efficient, redundant pump operation and permits users to switch between standard and high power operation to ensure the best operation for each application.
|
|
URACA high pressure and ultra high pressure plunger pumps are outstanding in their compact design and flexible applications. Based on the industrial process pump design, the pumps are relatively unsusceptible to small particles in the tap water, even at high pressures.
Options
- Flanged housing for hydraulic drives ISO 125 / ISO 140
- Drain device
- Suction and discharge connections, optionally on left or right-hand side
- position of drive, optionally on left or right-hand side
- special designs: hot water, stainless steel, solvents
- stuffing box cooling / flushing is possible with power end cooling
- pump unit with electric or diesel drive
- pump unit suitable for pressure tests with ATEX certificate
|
|
|
|
|
|
Maximum Productivity, Lower Cost of Operation
Maximum productivity and low operational costs are the keys to keeping your business competitive. Flow's 55,000 psi HUSKY pump sets a new industry standard for both productivity and reliability, giving you a portable ultrahigh-pressure waterjet pump that contributes to your bottom line by allowing you to work more efficiently and take on more jobs. The HUSKY is the world's first 55,000 psi direct drive triplex pump with full pressure compensation giving you the power you need to reduce your operating costs and increase productivity on a square foot basis. Now you get Flow's proven HUSKY UHP pump with a world class Caterpillar C-9 engine that meets Tier II emission requirements, on board diagnostics and lower fuel consumption.
The 55,000 psi HUSKY is compatible with all other Flow machines, meaning no additional investment in technology is necessary to upgrade.
Benefits
Maximum productivity from 55,000 psi - the highest pressure available in the industry
Lower cost of operation gives contractors a competitive advantage when bidding on jobs
Compatible with all existing Flow industrial cleaning products
Latest technology makes 55,000 psi pump the easiest-to-use, most reliable pump in the industry
Standard Features
290 hp Caterpillar C-9 Engine, producing 210 nhp - the highest available nozzle horsepower
Automated settings for multiple tool operation
Diagnostic sensors to assist with troubleshooting and preventative maintenance
Engine meets worldwide Tier 2 emission standards
On-board water booster and filtration system
Full pressure compensation allows for multiple tool use
Triple high-pressure outlet ports
82 gallon fuel tank
Multilingual remote operator box
Small 58.5" x 102" footprint
Specifications
Operating Pressure: 55,000 psi (3,790 bar)
Maximum Flow Rate: 6.5 gpm (24.5 lpm)
Approximate Weight: 5575 lbs (2534 kg) dry
Fuel Capacity: 82 gal (310 l)
Engine: 290 hp (216 kW) Caterpillar C-9
Nozzle Horsepower: 210 nhp (157 kW) continuous duty
Speed: 2,100 rpm continuous duty
Water Filtration: 10 micron absolute
Mounting Type: Skid or optional trailer mount
|
|
|
WOMA designs, produces and sells high-pressure plunger pumps driven by electric motors or combustion engines. The can be run in stationary mode but are also suitable for mobile use. The pumps have power ratings up to 780 kW, operating pressures up to 3000 bar, and volumetric flow rates up to 1679 l/min.
|
|
Standard characteristics :
- Maximum pressure : 4140 bar (60,000 psi).
- Working presure : from 500 up to 3500 bar (7,200 to 50,000 psi).
- Max. flow rate : 10 l/min at 3500 bar (50,000 psi).
- 1 SUGINO intensifier (redundancy in option), 1 UHP accumulator.
- Soundproofed casing.
- Complete hydraulic unit, with 10 µ filtration, and water cooling.
- Safety valve for automatic bleed-down of the UHP circuit.
- PLC controller : support for the maintenance and the follow-up of the functioning.
Advantages :
- Pumps perfectly adapted to all industry sectors : automotive, mechanics, aeronautics, food industry, and designed for a use in 3 shifts, 7 days a week.
- Turnkey equipments.
- Pumps with the UHP components reaching the best life times of the market.
- Decrease of the running costs.
|
|
Standard characteristics :
- Maximum pressure : 4140 bar (60,000 psi).
- Working presure : from 500 up to 3500 bar (7,200 to 50,000 psi).
- Max. flow rate : 10 l/min at 3500 bar (50,000 psi).
- 1 SUGINO intensifier (redundancy in option), 1 UHP accumulator.
- Soundproofed casing.
- Complete hydraulic unit, with 10 µ filtration, and water cooling.
- Safety valve for automatic bleed-down of the UHP circuit.
- PLC controller : support for the maintenance and the follow-up of the functioning.
Advantages :
- Pumps perfectly adapted to all industry sectors : automotive, mechanics, aeronautics, food industry, and designed for a use in 3 shifts, 7 days a week.
- Turnkey equipments.
- Pumps with the UHP components reaching the best life times of the market.
- Decrease of the running costs.
|
|
Pump Medium
Municipal raw sludge, also to feed filter presses. Black water and bilge water.
Fine structure pastes with up to 15% dry solids.
Ball valves
Single piston Type STPPb
Double piston Type DTPPb
Capacities up to 120m³/h
Forwarding pressure up to 100bar
|
|
SolidPumps Piston Pumps are suitable for transporting highly viscous media with solid particle contamination such as steel sheets, glass, slaughterhouse waste with bones, ropes, wire, wood, gravel, etc..
Piston pumps have low maintenance costs and all parts exposed to the medium, such as the cylinder liner, piston, piston tube, slide gate valve, seals, etc. are easily replaceable.
|
|
Pump Medium
Hazardous waste paste with up to 35 % dry solids. Contaminated solvents.
Contaminated oil sludge. Paste with large size lumps
Slide gate valves
Single piston Type STPPs
Double piston Type DTPPs
Capacities up to 100m³/h
Forwarding pressure up to 100bar
|
|
Pump Medium
All sorts of filter cake, after filter, presses, or centrifuges. Flotation sludge
Fine structure paste. Coal tailings.
Poppet valves
Single piston Type STPPp
Double piston Type DTPPp
Capacities up to 100m³/h
Forwarding pressure up to 160bar
|
|
|
|
