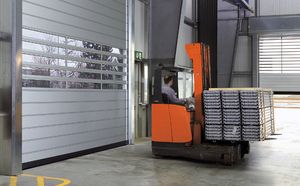

EFAFLEX aluminium high-speed folding doors are predominantly employed as exterior doors for thehall exit. They provide protection against noise and draughts; their fast opening and closing action saves on time and energy, and possess impressively good heat retention and sound proofing
properties. Where designing modern building exits, aspects like surface finish, the division of the leaves, rail arrangement, colour, bracing, insulation and much more can be individually adapted to match the façade in question. Clear acrylic glass, if desired double-glazed, permits daylight to penetrate the building. A fully automatic locking system which engages automatically after every closing action offers the best protection against intrusion. Reliable, economical, safe, environmentally friendly…
|
|
EFAFLEX high-speed roll-up doors come in many different versions so that there is an individual, yet always tried-and-proven system solution for every conceivable set of requirements. All EFAFLEX high-speed roll-up doors are characterised by a virtual maintenance-free technology as part of a space-saving modular system. EFAFLEX-Collision Protection (EFA-EAS) is the intelligent option should you want to keep the consequences of a „crash“ to the bare minimum. If desired, stainless steel surfaces
made of V2A or V4A can be provided. The EL model range is an all-rounder aimed at the priceconscious purchaser seeking a respectable and reliable high-speed door at a favourable price. Because, in the end, perfect and precise functionality is the most economical way to go.
|
|
EFAFLEX-Accident-System (EFA-EAS)
EFAFLEX-Accident-System (EFA-EAS) is the intelligent option and solution for reducing potential damage when the door is hit by a moving object. Downtime and possible repair cost can be substantially reduced or totally avoided. Logistics within your production area will be more efficient.
High-speed doors have to meet a variety of economic requirements. One of these is to avoid downtime and overhead costs in case of a potential damage e.g. by a crash. The EFA-EAS system offers an intelligent solution for mitigating the consequences of a crash!
EFA-EAS -> no damage -> no downtime -> no repair -> no expenses
|
|
EFA-SRT-EC High-Speed Roll-up Door for wet and hygienic environment
The EFAFLEX “Easy Clean” (EC) series is well suited for all kind of internal transits in foodsupplying enterprises. The elastic curtain fully complies with the HACCP and FDA requirements. Of course, the whole door construction is built of stainless steel.
All critical door sections are well accessible for cleaning purposes. Because of its space-saving construction the EFA-SRT-EC High-Speed Roll-up Door can be mounted even under cramped construction conditions.
|
|
Model HDS - High Speed
Examples of Applications: manufacturing, food processing, automotive, bus transit stations, parking garages, postal, airports and railways.
* Suitable for applications up to 20 feet in width or height.
* Self-supporting steel mounting angle
* Knock-away double angle steel bottom bar for 10lb/ft with rubber loop and reversing edge
* Frame mounted thru-beam photoelectric sensor
* High Efficiency Heligear Head (HG) Operator with multi-function PLC panel
* Soft Start Soft Stop using Inverter technology
* Door speed of up to 60 inches per second
* Counterbalance spring assembly cycle rating of 100,000
|
|
|
|
|
|
REVOLUTIONARY: COMPLETELY NEW SPIRAL DOOR GENERATION
Therefore as the first and only producer in the world, EFAFLEX will as of immediately offer double walled insulation laths in thermally separated and insulated models for exterior high - speed doors – now in serial production.

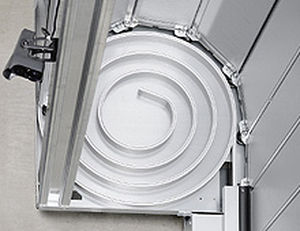

The circular, continuous round spiral is the standard solution. Herein, the door blade is coiled up free of abrasion in a patented circular spiral above max. headroom. This guarantees a smooth and calm run and, moreover, preserves the brandnew appearance of the door over many years!
If the allowed freespace for the header is not sufficient, oval designs will be used. For highly limited space, a low header application is available.
The engineers at EFAFLEX have had a true stroke of genius together with the introduction of an active crash system (EFA-ACS) for solid (!) door blades. If desired, the new EFA-SST generation with the model “EFA-ACS-DS” can be provided with a double sided moving device for the lower door blade area.

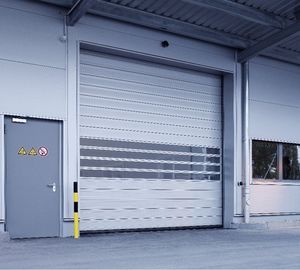

The most successful model “EFA-SST” will be offered in three different performance classes, namely “Premium”, “ECO” and “Basic”.
NEW: The EFA-SST Premium is now available at extra width known as the XL model.
|
|
|
|
|
|
High-speed turbo-door is the term used for a globally unique high-speed door for indoor applications, the door leaf of which is made of single-wall slats which are permanently transparent. On request the door leaf can be supplied PVC-free and as such is best suited for applications in the automotive industry (painting stations), in chemical and pharmaceutical plants as well as all sectors of the food-processing industry. The high-speed turbo-door EFA-STT is up to 3 m/sec. fast. It stays tight even under overpressure and underpressure conditions. Even under strong wind loads, the door remains fully operational.
The door leaf consists of individual single-wall slats which - each separately - are bolted to strap hinges on both sides so that no force acts within the hanging. The vertical hoisting motion is introduced directly via the strap hinges. The door leaf is taken up in a patented round spiral above the door opening - contactless and virtually wear-free. As a consequence, the door leaf can see years of wear without losing its appearance, and door travel is especially quiet.
Just recently announced, the transparent high speed door from EFAFLEX
has been released in a model with active crash system (EFA-ACS) which
enables the door to repair "itself" after a collision, within a very short period of time.
|
|
The EFA-STR High-Speed Roll-Up Turbo Door opens a new dimension in door construction: with opening speeds of over 3.6 m/sec the EFA-STR is the worldwide fastest door system of its type.
NEW: The Active Crash System EFA-ACS with its electronically monitored, fully automatic return system represents an accessory for EFA-STR doors which is highly recommended:
For the first time flexible and differing coloured door panels have been combined with the spiral formed door panel accommodation. The individual curtain components accommodated in the patented spiral are held away from each other, so that a contactless and practically wear free travel is guaranteed. Even sight sections remain fully transparent for many years. Further the door panel is made of individual, rapid and simply replaced segment-modules. Excellent wind stability, secure sealing and smooth travel also provide for exceptional availability.
|
|

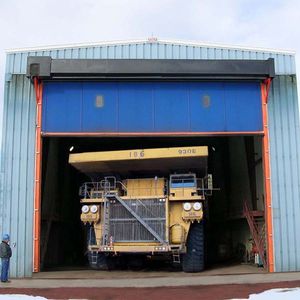

Albany Door Systems' UltraBig M&I Re-Coil-Away, "The World's Toughest High Speed Rubber Door", is designed for door openings over 30' x 30'. This big and tough door provides dependable performance in the most rugged industrial applications. The heavy duty side frames, thick rubber curtain and patented windlok design form a near airtight seal and can resist extreme wind pressures.
The UltraBig M&I is designed to last. It is durable, safe, low cost to maintain and can take a hit.
|
|
High-speed doors from Albany Door Systems excel with their fast opening and closing speeds, high cycles, wide range of sizes, and intelligent control systems for temperature, environmental and workflow control.
Albany Door Systems doors reduce energy loss by minimizing airflow through the door opening.
|
|
This light-weight high-speed roll-up door is suitable for many applications such as environmental separation, distribution centers and manufacturing facilities to name a few. Its compact size (both in terms of height and width), enables trouble-free installation even when there are space restrictions.
Curtain material is available in standard blue, orange, red and clear PVC. It has a wide range of safety features such as failsafe reversing edge, counterbalanced emergency access/egress mechanism (available on both sides of door), Nema-4 external electronic control panel and two (2) guide mounted photocells as reversing devices.
|
|

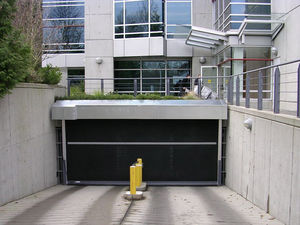

A springless low-headroom rubber roll-up door designed for use in underground parking applications for condos, office complexes, hotels and airports to name a few.
This high performance door is best suited for any application where head room clearance is a concern. Maximum door width is 25’ 0” and maximum door height is 10’ 0” with a minimum requirement of 18” head room clearance.
It is designed to take full impacts with little or no downtime and is easily reset from the floor without the use of special tools or parts.
The Model HDP includes a high-efficiency helical gear head operator with a multi-function capacity PLC (programmable logic circuit) and offers door speeds up to 30 inches per second.
|
|
Albany Door Systems' self-repairing and low profile UltraLite™ high speed door is ideally suited for industrial and commercial applications where traffic conditions are moderate and space is at a premium. The door can be applied in either interior or exterior applications where moderate wind and/or negative pressure are a problem.
Albany's UltraLite™ is designed to last. It is fast, safe, low cost to maintain, can take a hit and engineered to cycle hundreds of thousands of times.
|
|
Albany Door Systems' self repairing UltraCool™ door is designed for high traffic cold storage applications where the need for speed is paramount. It was designed specifically for high traffic, heavy duty cooler facilities.
When fork-truck traffic is high, door speed is important and safety concerns are at a premium, UltraCool™ is the door solution.
|
|
EFA-SST-ISO High-Speed Spiral-Door – Perfect insulation
The EFA-SST-ISO is the ideal closure door for highly used openings, e.g. in controlled temperature logistics, in refrigerated areas or in conventional industrial constructions, if an efficient insulation is required. A speed of up to 1.5 m/s and a basicly wear free door panel qualify the EFA-SST-ISO as a professional single door solution. The construction is designed for at least 150,000 operations per year - highest availability at lowest maintenance expenditure guaranteed.
|
|
|
Albany Door Systems' self-repairing UltraCleanT door is designed for high traffic sanitary applications where environmental control and hygiene are critical. Its fast opening and closing speeds control air infiltration and the spread of contaminants. Two piece side column design and stainless steel components allow for easy cleaning.
|
|
The professional clean room appliance
By its compact and self-contained seamless construction in stainless steel (V2A) the EFA-SRT-CR (Clean Room)is best positioned for the use in clean room areas and air locks. This door has been designed to meet the high standards for clean rooms and is the ideal solution for separating rooms with a pressure gradient. In contrast to conventional doors this appliance has an extreme narrow and dense side guidance of the curtain which results in very low air leakage of less than 100 m3/h at 150 Pa delta air pressure.
|
|
|
The latest generation of exterior doors from Albany Door Systems features our unique patented DiscDrive technology that provides fast and smooth operation. This true innovation results in higher speeds, less wear, less noise and longer life of the door.
|
|
|
|
|
|
Simple, agile and compact
Smart has been designed to create a door where rationality and modularity are prominent features. This makes installation easier and ensures problem-free work on all the component parts.
A sturdy and compact supporting structure, original DITEC motorisation and components, all perfectly designed and tested, together with curtain modularity, go to make Smart a safe door with very refined looks, but above all easy and quick to fit and practical when it comes to maintenance and inspections.
Modern industrial and sales facilities require quick, functional and reliable doors.
The Smart rapid roll-up doors cater for this need, ensuring smooth operation over the years, including in heavy-duty conditions.
The Smart doors are also the very best solution for outside entrances and are able to operate without difficulty in lots of different situations: sturdy and reliable, they are the ideal smart doors for small and medium-sized openings.
The modularity of the curtains, assembled and connected to the self-supporting metal structure, made of electrically-galvanised steel profile sections or stainless steel, permits changing section configuration to cater both for different operating requirements and to replace any sections worn or damaged by accidental knocks, thereby considerably cutting operating times and costs.
|
|
|
|
|
|
High speed door for outside application
Fold-Up door system
NF P 25-362 safety Standard - EC
Self supporting mill galvanised steel frame with polyester powder coated finish
Structure with unique Flexible track - Patent
The curtain can be released for the side guides in case of impact
Soft bottom edge technology -no more trouble with rigid bottom edge electronics
Wind resistance : 100 km/h
Hood/top roll and motor cover
Option : automatic or semi automatic counterweight in case of power failure
Maximum clear opening dimensions in mm : W 6000 x H 6000
High speed door special large dimensions
Fold-up door system - Outside applications
NF P 25-362 safety Standard - EC
Self supporting metal structure with polyester powder coated finish
Safety straps system : 2 curtain lifting straps which are not required on normal mode (NF P 25-362 standard)
Wind resistant : over 100 km/h
Gearmotor directly inlet
Reinforced frame for large size
Curtain 900g/m² with reinforced wind bar
Maximum clear opening dimensions : 60 m² - Beyond these dimensions, please consult us
|
|
|
Doors from Albany Door Systems offer the utmost reliability in critical environments where safety and dependability are key issues, such as high-traffic openings and secured areas.
|
|
The lateral opening high-speed doors NOVOSPRINT and ECOSPRINT guarantee a safe and smooth through-traffic. Opening time is twice as fast due to the lateral opening of the door leaves and in contrast to vertically opening doors, the complete opening height is immediately accessible for the user.
The risk of collision is reduced, preventing interruption of work as well as expensive door repairs.
Short opening and closing cycles reduce draughts and heat exchange, thus reducing energy costs and the possibility of illness.
In case of power failure the doors can be opened quickly by means of emergency operation. Automatic opening and escape route approval are optional.
|
|
|
|
|
|
High speed door for inside application
Industry
NF P 25-362 safety Standard - EC
Self supporting mill galvanised steel frame with polyester powder coated finish
Structure with Flexible track - Patent
Unique Flexible track for Break-a-way Curtain
with Automatic Reinsertion System without human intervention
Soft bottom edge technology - no more trouble with rigid bottom edge electronics
Hood/top roll and motor cover
Jamb inserted control panel
Speed : Open and close : 1 m / s
Curtain 900 g/m² reinforced by composite tube
Option: semi automatic or automatic counterweight in case of power failure
Maximum clear opening dimensions in mm : W 4000 x H 4000
High speed door for inside application
Industry - Food industry
Multi-purpose door
- Either rolling or folding type
- For industry or food industry (Stainless steel version) - LERPAC agreement
NF P 25-362 safety Standard - EC
Self supporting mill galvanised steel frame with polyester powder coated finish - No welding - Option Frame : stainless steel 304 L - Stainless steel 316 L
Structure with Flexible track - Patent
Unique Flexible track for Break-a-way Curtain
with Automatic Reinsertion System without human intervention
Soft bottom edge technology -no more trouble with rigid bottom edge electronics
Standard lintel spring : 350 mm
Lintel spring with folding type curtain : 780 mm
Curtain 900 g/m² with composite made horizontal strengthening
Speed : 1m/s
Maximum clear opening dimensions in mm: W 3500 x H 3500
|
|
|
|
|
|
High-speed doors for internal and external application.
STRICKER High speed roll up doors are available with flexible PVC/reinforced curtain with vision and different type of wind protection. Assembled and optimized for all industrial requirements.
Standard:
Galvanised steel, vision panel, wind protection, 3-phase motor, control unit with cycle counter, count down timer, digital limits, programming by parameter setting, indication screen (faults, count down etc), emergency stop.
According DIN EN 12604, 12451 (CE) for Europe or UL/CSA for North/South America.
Option:
Emergency opening device with counter balance for use in escape routs, "Anti-Crash" with automatic reinsertion, galvanised and powder coated, all types of activators, safety with "in-door-line" light barrier etc.
Frequency converter and clear text screen.
High speed doors are available as CTS (Cut-To-Size). This allows to customize the door in your country in your company according your customers requirements. Please contact us for more information.
|
|
The Powerdoor 650 is a folding speed door designed for medium and large outside applications.
It effectively operates in any situation, even with heavy wind loads.
|
|
Ideal for space problems
Its compact size, both in terms of height and width, enables trouble-free installation even when there are space problems.
Safe and reliable
Its reliable modular counterweight balancing system, with its sturdy driving belt, allows the motor to work with minimum effort, thus extending the operational lifespan of the automation.
Its three-phase motor for heavy duty, is composed by gear motor with brake, limit switch and lock release, integrated in an exclusive module (exclusive and original DITEC characteristic).
Functional, intelligent and multi-purpose
Sector offers great structural flexibility thanks to its modular interchangeable system; the curtain can be made up of blind sections, available in a wide choice of colours, and transparent sections, which increase visibility and result in higher safety.
Modular sections make provision for various combinations to meet different operational requirements and enable easy and quick replacement in case of damage.
|
|

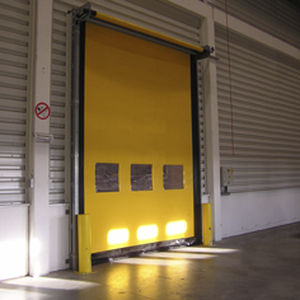

CRAWFORD 855
The Crawford 855 is available with an opening speed of up to 2.5 m/s.
A high safety level when using the door is vital, and Crawford does not compromise on safety. Like all our doors, the Crawford 855 meets the latest EU standards and has several safety features. For example, damage is minimised since the door is designed to withstand demanding use and collisions. The integrated window sections make obstacles behind the door visible and allow light into the premises. The bottom edge has a sensor which reverses the door instantly if there is an obstacle in its path.
|
|
|
|
|
|
High speed door for inside application
Industry
NF P 25-362 safety Standard - EC
Self supporting mill galvanised steel frame with polyester powder coated finish
Structure with Flexible track - Patent
Unique Flexible track for Break-a-way Curtain
with Automatic Reinsertion System without human intervention
Soft bottom edge technology - no more trouble with rigid bottom edge electronics
Hood/top roll and motor cover
Jamb inserted control panel
Speed : Open and close : 1 m / s
Curtain 900 g/m² reinforced by composite tube
Option: semi automatic or automatic counterweight in case of power failure
Maximum clear opening dimensions in mm : W 4000 x H 4000
High speed door for inside application
Industry - Food industry
Multi-purpose door
- Either rolling or folding type
- For industry or food industry (Stainless steel version) - LERPAC agreement
NF P 25-362 safety Standard - EC
Self supporting mill galvanised steel frame with polyester powder coated finish - No welding - Option Frame : stainless steel 304 L - Stainless steel 316 L
Structure with Flexible track - Patent
Unique Flexible track for Break-a-way Curtain
with Automatic Reinsertion System without human intervention
Soft bottom edge technology -no more trouble with rigid bottom edge electronics
Standard lintel spring : 350 mm
Lintel spring with folding type curtain : 780 mm
Curtain 900 g/m² with composite made horizontal strengthening
Speed : 1m/s
Maximum clear opening dimensions in mm: W 3500 x H 3500
|
|
|
|
|
|
The Roll-O door is a high speed roll up door that opens and closes using a vertical roll-up operation, as with our other high-speed doors the Roll-O model is suitable for applications where high speed opening and closing times are required.
This type of door is suited to both small and medium size openings and designed for use where heavy traffic is present.
This type of door can be used in a range of applications including stand-alone or combination use and is ideally suited for internal applications where partitions are required between temperature controlled, dusty, noisy or similar areas.
For maximum safety, all Roll-O doors have a built in safety edge.
Upon contact with an obstacle the door stops and reverses automatically to avoid the risk of injury or damage.
All Roll-O doors are CE marked and comply with the appropriate safety regulations EN 13241-1.
The ROLL-O door is available with a variety of bespoke options and can be manufactured to include a crash-proof system, this system ensures that in the event of any impact by a vehicle, the door can easily be reset in a few seconds without any special tools or skills.
As with all our other high-speed doors, in the event of a power failure the ROLL-O door is supplied with a manual override facility.
This ensures the door can be easily opened or closed in the event of power being severed from the door, this override facility minimises on the risk of any inconvenience in entering or leaving the affected area.
|
|
GS 31X
This inner-door series for smaller bays of a door up to 2,500 x 2,500 mm (wxh) was especially developed for automatic conveyor systems and for the movement of persons. Its space-saving and elegant construction also creates a representative eyecatcher in shops.
|
|
|
|
