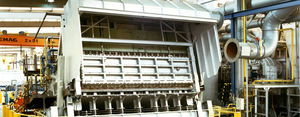

Key features
Individual furnace designs and layouts for customer specific requirements.
Casing constructions designed for the demanding cast house environment.
Fives Solios full-width door employing hydraulic direct lifting system for safety, reliability and compact layouts.
Door construction designed to maintain an insulating seal by resisting thermal distortion and using hydraulic clamping.
Long lasting monolithic refractory linings designed for the varying conditions inside the furnace chamber, brick linings are also available.
Furnaces tilting systems employing a single or double cylinder arrangement depending on the customer’s layout criteria.
Multi-fuel heating methods (Gas, Oil or electrical heating options). Completely automated PLC heating control loops employing –ratio control or thyristor based systems.
Complete integrated exhaust systems using the reliable and responsive Solios Barometric pressure control damper.
Door fume extraction systems.
Various inspection port options.
Practical metal transfer options including: hot metal inlet wells, siphon ports and the Solios transfer door integrated into the main furnace door.
Automated metal bath thermocouple designs preventing operator intervention.
Process control systems for level 1 and 2 status with integration to the clients level 3 systems, all designed by our experienced electrical systems team. Process control designed for PC/PLC based systems with HMI/MMI facilities and SCADA options. Manual overrides can be included where required.
Casting machine process control integration.
Pre-assembled delivery options for reduced installation periods.
|
|
| ... products without technical information |
| |
Perfect furnace for delicate gas quenching treatments thanks to the rotative cooling ensuring an excellent cooling uniformity/span>
High cooling speed
Reduction of cycle time thanks to convective heating
Fully automatic process for a perfect reproducibility of the results
|
|
PVD coating machine with a simple and compact design
Realisation of the common thin layers at the best economic conditions
Fully automatic operation for easy use and reproducibility of the results
Possible set up in controlled atmosphere zone for an optimal coating quality
|
|
|
|
|
|
IVA vacuum chamber furnaces series VH…U/K, equipped with gas cooling, a reversal system and hot gas circulation, are mainly used for heat treatment of tools made of tool steel and high speed steel at temperatures ranging up to 1,300°C.
Quenching under a nitrogen pressure of up to 10 bars, controlled cooling and heating bath simulation offer possibilities to apply a wide variety of quenching conditions.
The furnace unit is designed for easy maintenance, i.e. all internal elements such as the heat exchanger, circulation fan with impeller and the convection unit are easily accessible.
The transformer, pump station - rotary slide gate and roots pump as standard equipment - the switchbox and gas storage container are arranged according to the local situation to save space. The assembly work is limited to connecting these system components and attaching the system to the energy supply.
The freely-programmable control system and a microprocessor-equipped programming unit offer very flexible program design.
|
|
Furnace especially adapted for brasing and degasing as well as annealing and ageing
Excellent thermal homogeneity
Very simple conception and robust design for low maintenance and assuring an excellent reliability
Available also with metallic insulation for high quality vacuum treatments
|
|
Perfect furnace for delicate gas quenching treatments thanks to the rotative cooling ensuring an excellent cooling uniformity/span>
High cooling speed
Reduction of cycle time thanks to convective heating
Fully automatic process for a perfect reproducibility of the results
|
|
Multipurpose oil and gas quenching furnace with two chambers
Compact system for minimum space requirement
Gas quenching possibility allowing the treatment of huge grade of steel
Heating chamber held in temperature for important energy saving
Fully automatic handling system by deformable parallelogram and telescope
|
|
Tempering furnace ensuring an excellent temperature homogeneity and reduced cycle time
Respect of the load surface
Low dead load and strong insulation for energy savings
Robust construction limiting maintenance costs
Compact design minimizing the floorsurface
|
|
Plasma nitriding furnace with bell
Automatic process for easy use and reproducibility of the results
Convective cooling with heat exchanger
Automatic bell handling to clear the space over the sole
Fixed sole for direct and safe loading of delicate parts
|
|
Tempering furnace ensuring an excellent temperature homogeneity and reduced cycle time
Respect of the load surface
Low dead load and strong insulation for energy savings
Robust construction limiting maintenance costs
Compact design minimizing the floorsurface
|
|
|
|
|
|
Evacuable chamber tempering furnaces, series RH…RVe/g, are mainly used to temper and anneal materials treated in vacuum hardening furnaces. The RH...RVe type furnaces are electrically-heated, whereas the abbreviation “g” is used for gas-heated models.
The systems consist of a furnace body with modern, low heat-retaining insulation and the horizontal sliding retort with a gas circulation unit.
The integrated indirect cooling system permits cooling under a protective atmosphere (inert gas). The pump stand consists of a mechanical vacuum pump with the associated measuring instruments.
The switchgear is equipped with a freely-programmable process control system. The selection of this equipment permits very flexible process design.
The IVANIT unit permits nitriding, nitrocarburizing and oxidizing in evacuable tempering furnaces.
Moreover, the furnaces can be equipped with a specially developed rapid cooling system on request. This system achieves direct cooling of the nitrogen atmosphere, radically reduces the cycle times and thus renders IVA chamber tempering furnaces even more economical.
In combination with IVA vacuum chamber ovens, series VH...U/K, these evacuable tempering furnaces offer an attractive package for hardening and tempering of tools made of hot-work, cold-work and high speed steel.
|
|
Multipurpose oil and gas quenching furnace with two chambers
Compact system for minimum space requirement
Gas quenching possibility allowing the treatment of huge grade of steel
Heating chamber held in temperature for important energy saving
Fully automatic handling system by deformable parallelogram and telescope
|
|
Thanks to its wide range of continuous furnaces, IVA is in a position to provide particularly powerful, economical systems for heat treating bulk batches of all kinds.
IVA conveyor-belt furnaces have been specifically designed for continuous hardening, carburising, carbonitriding and annealing bulk batches under inert gas. With capacities of up to 500kg per hour, these furnaces are designed to suit the needs of the specific application.
IVA conveyor-belt furnaces are highly reliable and economical. They are constructed so as to be easy to service and feature modern, light-weight insulating materials to maximise energy-saving.
Various additional components are available to adapt the furnaces to a number of applications and to automate them by stages. The following modules are available:
* Automatic workpiece feed
* Oil or water quenching tanks
* Warm salt tanks cleaning equipment
* Degreasing plant
* Gas feed plant
* Blacking tanks
|
|
| ... products without technical information |
| |
|
|
|
|
IVA multi-purpose chamber furnaces have a wide range of applications that include the following heat treatment processes:
* Carburizing
* Case hardening
* Carbonitriding
* Hardening under inert gas
* Annealing under inert gas
* Nitrocarburizing
These systems feature a robust design, assuring reliable long-term operation.
IVA multi-purpose chamber furnaces are supplied in three standard sizes, equipped with oil baths for temperatures ranging up to 200 °C.
And these are the special features of these systems:
* Highly uniform temperature
* Exact reproducibility of the heat treatment results
* State-of-the-art burner technology for an optimal energy balance
* Highly flexible: optional cooling under gas in a pre-chamber or quenching in an oil bath
* Capable of integration in existing multi-purpose chamber furnace systems
* Equipped with process control system on request
* High-performance switchgear and regulating system with a freely-programmable control unit
* Compact design thanks to integration of all important elements such as drives, quenching bath and control electronics
|
|
The electrical or gas-heated series RH…gs/es batch-type tempering furnaces are used primarily for tempering, annealing, nitriding and nitrocarburizing.
Each installation consists of the furnace housing with modern, low-retention insulation and the horizontally inserted retort with gas circulation system.
The direct cooling enables work pieces to be cooled under an inert gas atmosphere. This system, which realizes direct cooling of the heat-treatment atmosphere, ensures significantly reduced cycle times.
The switchgear can be equipped with a user-programmable controller and a program set station to maximize program configuration flexibility.
|
|
|
|
|
|
IVA multi-purpose retort furnaces feature a high level of flexibility and automation. Thanks to integration of all major system elements – drives, quenching bath, if appropriate the switchgear and similar components – the furnace system is very compact and suitable for installation in very confined areas.
The field of application extends to numerous thermochemical processes such as carburizing, carbonitriding, nitrocarburizing and nitriding, as well as to hardening under inert gas with quenching in oil or in water emulsions, and to various annealing processes.
IVA multi-purpose retort furnaces can also be equipped with an oil-heating bath on request. This extends the field of application to hardening of hot-work and cold-work steel materials. Use of state-of-the-art construction materials - for example low heat-retaining insulation - permits economical application of dynamic processes, such as annealing after carburizing.
The switchgear and regulating system is equipped with a freely-programmable control unit as standard equipment. Process regulation is automatic. A connection for external process control systems can be provided on request.
IVA multi-purpose retort furnaces are subject to continuous product improvement aimed at keeping the systems at the forefront of current technical developments at all times.
|
|
IVA vertical shaft furnaces series T...e/g (V) are supplied with or without a retort. These systems are mainly used at temperatures ranging up to 1,000°C for the following heat treatment processes:
* Gas carburizing
* Annealing under inert gas
* Heating to harden substrates under inert gas
* Nitriding
* Nitrocarburizing
These furnace systems offer state-of-the-art technology, and are equipped with features such as low heat-retaining insulation that also permits running systematic heat treatment programs with predefined temperature gradients.
These systems can be equipped with indirect cooling on request.
Accessories such as gassing and regulating systems, quenching baths (oil, water, salts) and metal cleaning systems are similarly available in the T...e/g (V) Series product line.
The switchgear can be equipped with a freely-programmable control system and a programming unit. The choice of these units offers a very flexible program design.
|
|
|
|
