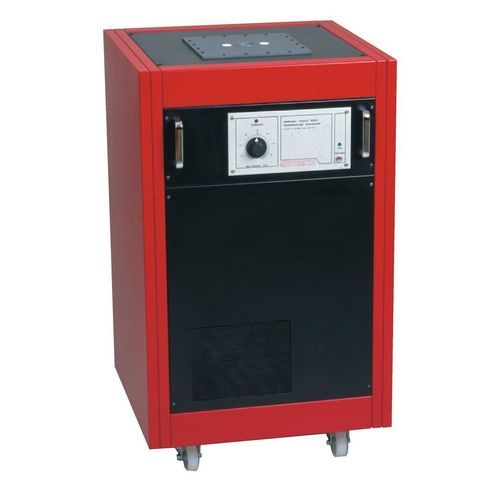

Chamber oven ITL-M-17725

calibrationholdingelectric

Overview
The ITL-M-17725 maintenance oven is designed for use with large mercury fixed-point cells. Easy to operate, it provides plateaus of 8 to 12 hours and includes two auxiliary wells for thermometer pre-conditioning. The temperature is adjustable between -36°C and -42°C.

Main features

• Simple operation
• Liquid-free system (no liquid bath)

Operation and performance
The system integrates a mechanical cooling unit capable of reaching the target cell temperature within 1 hour. Cooling rate during descent is approximately 1 K/min, and heating about 2 K/min. The device temperature is controlled by a refrigerant circuit ensuring safety in case of malfunction. The oven provides appropriate conditions to establish and maintain mercury fixed-point cells during both temperature ascent and descent.

New functions
A new color graphic display provides system control. The Ethernet interface allows remote temperature regulation. The system records bath temperature and ambient air temperature. Data can be exported to a USB key. "COOLING" and "POWER ON" indicators are shown on the oven front panel.

Technical specifications

• Adjustable temperature: -36°C to -42°C
• Uncertainty (inside the cell): 0.22 mK
• Operating ambient temperature: 18°C to 28°C
• Cycle time: with a cell at 20°C, time to plateau ≤ 1 hour; cooling ≈ 1 K/min; heating ≈ 2 K/min
• Plateau duration: 8 to 12 hours
• Controller resolution: 0.01°C
• Interfaces: Ethernet and USB Host
• Dimensions: 960 x 600 x 560 mm
• Weight: 96 kg
• Power supply: 100 / 130 V or 208 / 240 V (50/60 Hz)
• Power consumption: 750 Watts
