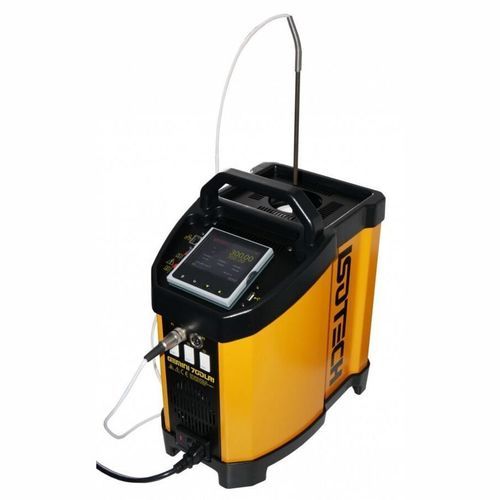

High-temperature dry block heater Gemini 700 LRI

digitalwith thermostat

Overview
The Gemini 700 LRI is a portable calibration furnace for temperature probes covering 50°C to 700°C. Its large calibration volume allows simultaneous calibration of multiple thermometers, thermocouples, resistance probes, thermostats and other sensors. It is particularly suited for calibrating large-diameter probes thanks to a 65 x 160 mm insert.

Removable insert
The standard removable insert features 8 holes of Ø 8 mm with a depth of 154 mm. Insert suitable for large-diameter probes (insert 65 x 160 mm).

Versions

• Model B (Basic): equipped with a controller displaying setpoint and the temperature measured by the control probe simultaneously.
• Model S (On-Site): in addition to the Model B features, includes a digital indicator to which a reference probe can be connected for improved accuracy; eliminates temperature gradient and loading errors.

Usage advice
For laboratory use, it is recommended to connect the Gemini 700 LRI to a high-performance temperature indicator.

Key points

• Large calibration volume: 64 x 160 mm depth
• Operating range: 50°C to 700°C
• High-capacity block

Specifications (table)
Temperature range: 50°C to +700°C
Absolute stability over 30 min: ±0.03°C at 250°C
±0.04°C at 550°C
±0.05°C at 700°C
Ramp time (50°C to 700°C): 120 min
Performance: See performance graph
Calibration volume: 64 x 160 mm depth; Removable; 8 x Ø 8 mm; Depth: 154 mm

General specifications (table)
Dimensions: 302 x 176 x 262 mm
Mass: 18 kg
Display: Resolution: 0.01 to 99.99 and 0.1 to 100.0 / 700.0; Units: °C, °F, K
Power supply: 100 / 120 V (50 / 60 Hz) or 200 / 240 V (50 / 60 Hz); 1000 Watts
Communication interfaces: RS 232

Delivered as standard
Gemini 700 LRI B (Basic model)

• 1 removable insert drilled with 8 wells Ø 8 mm, depth: 154 mm
• Cal Notepad software
• Serial communication cable
• User manual
• Traceability certificate

Gemini 700 LRI S (On-Site model)

• 1 removable insert drilled with 8 wells Ø 8 mm, depth: 154 mm
• Cal Notepad software
• Serial communication cable
• User manual
• Traceability certificate
• Integrated digital indicator
• Connector for probe 935-14-72/DB (Pt100 reference)
• Connector for probe 935-14-63 (Type N thermocouple –35°C to 700°C)

Sleeves and available accessories

• 976-07-02a: Sleeve drilled for standard wells: 8 x Ø 8 mm (Depth: 154 mm)
• 976-07-02b: Undrilled sleeve
• 976-07-02c: Special sleeve
• 935-14-72/DB: Working Pt100 standard
• 935-14-63: Type N thermocouple (–35°C to 700°C)
• 931-22-65: Transport case

Transport information
Dimensions without packaging: 302 x 176 x 262 mm
Weight without packaging: 18 kg

Technical features / specifications

• Commercial name: Gemini 700 LRI
• Temperature range: 50°C to 700°C
• Calibration volume: 64 x 160 mm
• Insert: removable, 8 x Ø 8 mm, depth 154 mm
• 30 min stability: ±0.03°C at 250°C; ±0.04°C at 550°C; ±0.05°C at 700°C
• Ramp time 50→700°C: 120 min
• Dimensions: 302 x 176 x 262 mm
• Mass: 18 kg
• Power supply: 100/120 V or 200/240 V, 1000 W
• Interface: RS 232
