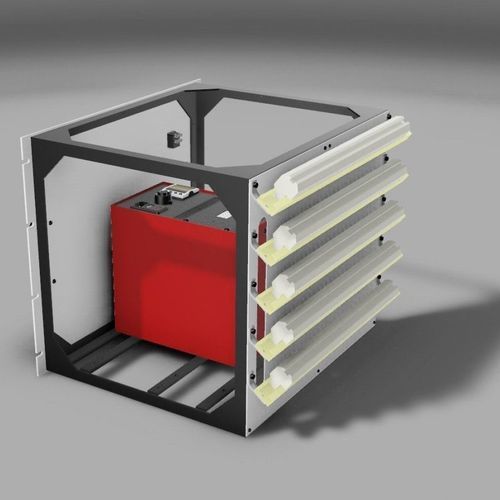

19" rack matrix box TRURAC 847

for industrial networks

Description
The TRURAC 847 is a rack-mounted (19'') thermocouple reference junction enclosure providing a stable and precise temperature at 0°C or, optionally, at a higher temperature between 45°C and 70°C. It uses Peltier-effect modules requiring limited maintenance. An alarm is triggered if the temperature deviation exceeds 0.2°C.

Main features

• Operates in ambient temperature from 2°C to 65°C
• Suitable for industrial applications and installations requiring a large number of thermocouples
• 19'' rack format
• Standard capacity up to 100 thermocouples (double-junction channels)

Operating principle
Inside the chassis is a 0°C reference unit grouping the copper/thermocouple junctions. Connections to the thermocouples and to the measuring instrument are located at the rear of the board. Up to 100 thermocouples can be compensated with one reference unit; a second unit can be installed to increase capacity to 200 thermocouples. The user connects thermocouples and copper leads to ensure accurate and highly stable compensation.

Temperature performance and specifications
Temperature range: 0°C (or 45°C to 70°C)
Stability: ±0.03°C (error induced by thermocouple load can be corrected via controller adjustment)
Stabilization time: 10 min from 44°C
Capacity: Up to 100 double-junction channels (expandable to 200 with a second unit)
Connections: Klippon terminals type 1.5 AKZ
Alarm: 5 A, 240 V relay

General specifications
Dimensions H x W x D: 400 x 483 x 312 mm
Weight: 24 kg
Power supply: 100 / 130 V (50/60 Hz) or 208 / 240 V (50/60 Hz); Power: 100 Watts

Environmental specifications
Operating range: 2°C to 65°C

Models and accessories

• Unit equipped with block B1: can accept up to 36 thermocouples
• Unit equipped with block B2: can accept up to 100 thermocouples
• Accessories listed: platinum probe for block B1 (reference 935-14-54, supplied with certificate), fan filter for dust-rich environments (reference 935-17-32), double junctions for thermocouples K, E, N, UT, J, R or S (reference 880D/x) — specify quantity and type when ordering

Technical characteristics / specifications

• Model: TRURAC 847
• Type: Thermocouple reference junction module, 19'' rack format
• Operating range: 0°C or 45–70°C
• Accuracy/stability: ±0.03°C
• Deviation alarm: triggers > 0.2°C, 5 A / 240 V relay
• Capacity: up to 100 double-junction channels (expandable to 200)
• Stabilization time: 10 minutes from 44°C
• Connections: Klippon terminals type 1.5 AKZ
• Power supply: 100/130 V or 208/240 V (50/60 Hz), 100 W
• Dimensions: 400 x 483 x 312 mm
• Weight: 24 kg
• Operating range: ambient temperature 2°C to 65°C
