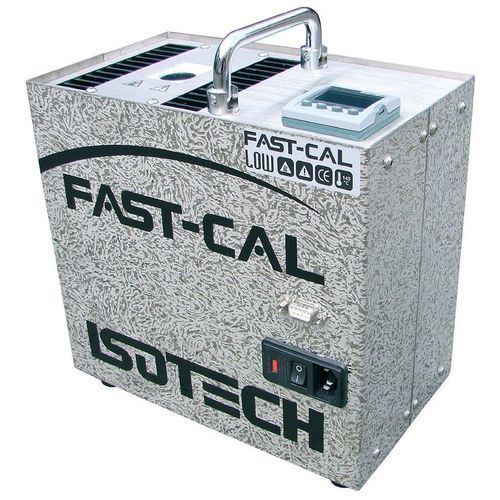

Cooling dry block heater Fast-Cal HTM 2010

high-temperaturecompactexternally-controlled

Description
The Fast-Cal HTM 2010 is a portable industrial calibration oven for temperature probes covering -35°C (ambient 20°C) up to 140°C. Fitted with a fixed 5‑well block (instead of a removable insert), it is designed for validation tasks on disinfection units, steam sterilizers and autoclaves. The fixed block accepts a reference probe and the commonly used sensors under test in validation workflows.

Key points

• Calibration volume: fixed 5‑well block (3 x 4.5 mm / 1 x 6.5 mm / 1 x 8 mm), depth: 145 mm
• Lightweight and durable
• Easy to use on site

Main specifications
Temperature range: -35°C (ambient 20°C) to +140°C
Stability: ±0.02°C
Basic accuracy: ±0.2°C
Total accuracy (with working standard): ±0.15°C
Heat-up time (-30°C to 140°C): 15 min
Cool-down time (140°C to 0°C): 15 min
Calibration volume: Fixed — 3 x 4.5 mm / 1 x 6.5 mm / 1 x 8 mm — Depth: 145 mm
Process input: 4-20 mA (on Site model only)

General specifications
Dimensions: 228 x 248 x 143 mm
Mass: 6.6 kg
Power supply: 115 VAC or 230 VAC, 50/60 Hz — 150 Watts
Communication interfaces: RS 232

Models and standard delivery
Fast-Cal HTM 2010 B

• Fixed block with 5 wells (3 x 4.5 mm / 1 x 6.5 mm / 1 x 8 mm), depth: 145 mm
• Cal Notepad software
• Serial communication cable
• Carrying case
• User manual
• Certificate of traceability

Fast-Cal HTM 2010 S (Site model)

• Fixed block with 5 wells (3 x 4.5 mm / 1 x 6.5 mm / 1 x 8 mm), depth: 145 mm
• Cal Notepad software
• Serial communication cable
• Carrying case
• User manual
• Certificate of traceability
• Integrated digital indicator
• Working standard Pt100, 935-14-82/DB

Accessories
5‑point calibration certificate

Transport information
Dimensions without packaging: 228 x 248 x 143 mm
Weight without packaging: 6.6 kg

Features / Technical specifications

• Temperature range: -35°C (ambient 20°C) to +140°C
• Stability: ±0.02°C
• Basic accuracy: ±0.2°C
• Total accuracy (with working standard): ±0.15°C
• Heat-up time: -30°C to 140°C: 15 min
• Cool-down time: 140°C to 0°C: 15 min
• Calibration volume: Fixed block 3 x 4.5 mm / 1 x 6.5 mm / 1 x 8 mm — Depth: 145 mm
• Dimensions: 228 x 248 x 143 mm
• Mass: 6.6 kg
• Power supply: 115 VAC or 230 VAC, 50/60 Hz — 150 Watts
• Interfaces: RS 232
