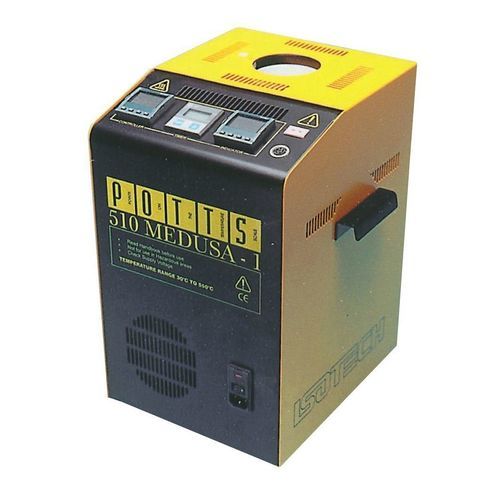

High-temperature dry block heater Medusa POTTS 510

coolingdigitalexternally-controlled

Overview
The Medusa POTTS 510 dry calibration furnace is a dry-block system engineered for probe calibration requiring large immersion depths. It delivers temperature uniformity appropriate for ITS-90 Fixed Point realization and for comparative calibrations of long sensors.

Key features

• High-capacity block with large immersion depth
• Designed for Fixed Point (ITS-90) realization and comparative calibrations
• Compatible with very long thermometers and diverse probe types

Functions and applications
The POTTS 510 supports calibration of standard thermometers and temperature sensors regardless of length or shape: optical pyrometers, surface probes, thermistors, thermocouples and platinum resistance thermometers (PRTs). It can be used to maintain and verify reference standards at Fixed Points such as Gallium melting, Indium triple point, Tin and Zinc. Calibration volume is 45 mm diameter with 285 mm immersion depth. The POTTS 510 is rated for operation up to +550°C (specified range: 30°C to +550°C). A variant POTTS 511 (three-zone control) is recommended for applications above 550°C up to 700°C.

Specifications (from data table)
Temperature range: 30°C to +550°C
Absolute stability over 30 min: Calibration furnace: ±0.03°C
±0.1°C for blackbody source
±0.5°C for surface sensors
±0.001°C for ITS-90 Fixed Point cells
Cooldown time: 550°C to 30°C: 5 h
Warm-up time: 30°C to 550°C: 90 min
Uncertainties: See product graph
Calibration volume: Ø45 mm × 285 mm depth
Standard insert: 6 wells Ø 8 mm, depth 250 mm

General specifications
Dimensions: 430 × 310 × 300 mm
Mass: 17 kg
Display: Resolution 0.01 to 99.99 and 0.1 to 100.0 / 650.0; Units: °C, °F, K
Power supply: 108 / 130 V, 50/60 Hz or 208 / 240 V, 50/60 Hz; Power: 1000 W
Communication interfaces: RS-232

Delivered as standard

• Indicator
• Reference probe Pt100 935-14-95H/DB
• Timer
• Cal Notepad software
• Serial communication cable
• User manual
• Traceability certificate

Accessories and options

• Metal sleeves (e.g. 510-06-01: standard sleeve 6 wells Ø 8 mm × 250 mm)
• Undrilled sleeve (510-06-02)
• Custom sleeve (510-06-03)
• Height-adjustable equalizing block, 6 wells Ø 8 mm × 157 mm depth (510-06-04)
• Working probe Pt100 935-14-95H/DB
• UKAS 5-point calibration certificate
• Blackbody sources and targets (510-06-05)
• Sleeve and reference probe for surface sensors (510-06-06)
• ITS-90 mini Fixed Point cells (Gallium, Indium, Tin, Zinc) in metal or quartz envelopes (refs M17401ML, M17668ML, M17669ML, M17671ML, M17401QS, M17668QS, M17669QS, M17671QS)
• Other accessories: replacement probes, sleeves for surface sensor calibration, inconel support for Indium-to-Zinc cells, transport case

Transport information
Dimensions without packaging: 430 × 310 × 300 mm
Weight without packaging: 17 kg
