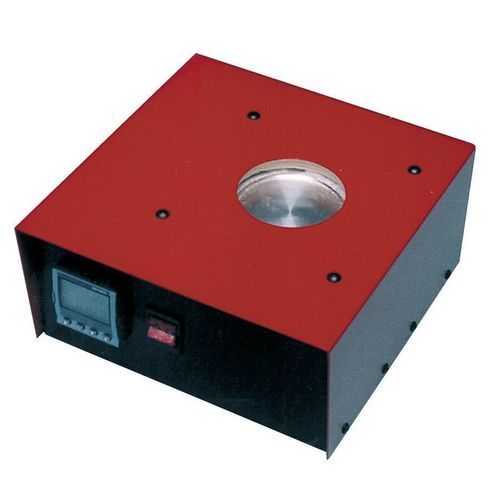

Temperature calibrator 983surfacesurface probefor temperature sensors
Add to favorites
Compare this product
Characteristics
- Physical quantity
- temperature, surface
- Applications
- for temperature sensors, surface probe
- Options
- portable, precision, high-temperature
- Temperature
Min.: 35 °C
(95 °F)Max.: 350 °C
(662 °F)- Voltage
100 V, 115 V, 200 V, 230 V
Description
Overview
The 983 calibration plate is a lightweight portable system designed for calibrating surface sensors. The plate is precision-machined from aluminium. The sensor under test is placed on the flat surface. For improved accuracy, a calibrated reference sensor can be placed adjacent for comparison.
Operation
Thermal contact is provided by the recessed flat disk, allowing the optional use of thermal paste or liquid to enhance heat transfer with the sensor under test. Uniform temperature distribution is ensured by the flat spiral heater embedded in the block beneath the test surface. Typical accuracy is 1°C but depends on the type of sensor being calibrated. The internal control temperature sensor is located directly under the test surface. A protective cover is supplied as standard with the user manual.
Temperature range and controller
Regulated temperature range from 35°C to 350°C. The unit is controlled by a fine, easy-to-use controller; resolution 0.01 below 100°C (0.1 above).
Specifications (detailed)
Temperature range: 35°C to +350°C
Stabilization time: 10 min
Cool-down time: 350°C to 100°C: 125 min
Heat-up time: 50°C to 350°C: 20 min
Uncertainties: Depending on reference sensor and use; ±1°C typical
Calibration volume: 71 mm diameter plate
General specifications
Dimensions: 115 x 230 x 225 mm
Mass: 3.9 kg
Display: Resolution: 0.01 to 99.99 and 0.1 to 100.0 / 350.0; Units: °C, °F, K
Power supply: 100 / 115 V (50/60 Hz) or 200 / 230 V (50/60 Hz); Power: 200 Watts
Communication interfaces: RS-232
Supplied as standard
features / technical specifications
The 983 calibration plate is a lightweight portable system designed for calibrating surface sensors. The plate is precision-machined from aluminium. The sensor under test is placed on the flat surface. For improved accuracy, a calibrated reference sensor can be placed adjacent for comparison.
- Low-cost portable calibration plate
- Stable to ±0.1°C
- PC interface and software
Operation
Thermal contact is provided by the recessed flat disk, allowing the optional use of thermal paste or liquid to enhance heat transfer with the sensor under test. Uniform temperature distribution is ensured by the flat spiral heater embedded in the block beneath the test surface. Typical accuracy is 1°C but depends on the type of sensor being calibrated. The internal control temperature sensor is located directly under the test surface. A protective cover is supplied as standard with the user manual.
Temperature range and controller
Regulated temperature range from 35°C to 350°C. The unit is controlled by a fine, easy-to-use controller; resolution 0.01 below 100°C (0.1 above).
Specifications (detailed)
Temperature range: 35°C to +350°C
Stabilization time: 10 min
Cool-down time: 350°C to 100°C: 125 min
Heat-up time: 50°C to 350°C: 20 min
Uncertainties: Depending on reference sensor and use; ±1°C typical
Calibration volume: 71 mm diameter plate
General specifications
Dimensions: 115 x 230 x 225 mm
Mass: 3.9 kg
Display: Resolution: 0.01 to 99.99 and 0.1 to 100.0 / 350.0; Units: °C, °F, K
Power supply: 100 / 115 V (50/60 Hz) or 200 / 230 V (50/60 Hz); Power: 200 Watts
Communication interfaces: RS-232
Supplied as standard
- Protective cover
- Cal Notepad software
- Serial communication cable
- User manual
- Traceability certificate
- Specify mains voltage when ordering: 100 / 115 V (50/60 Hz) or 200 / 230 V (50/60 Hz)
features / technical specifications
- Model: 983
- Temperature range: 35°C to 350°C
- Stability: ±0.1°C
- Typical uncertainty: ±1°C (depending on sensor and use)
- Stabilization time: 10 min
- Heat-up time 50°C→350°C: 20 min
- Cool-down time 350°C→100°C: 125 min
- Calibration volume: plate Ø 71 mm
- Dimensions: 115 x 230 x 225 mm
- Weight: 3.9 kg
- Power supply: 100/115 V or 200/230 V, 50/60 Hz
- Power: 200 W
- Interface: RS-232
