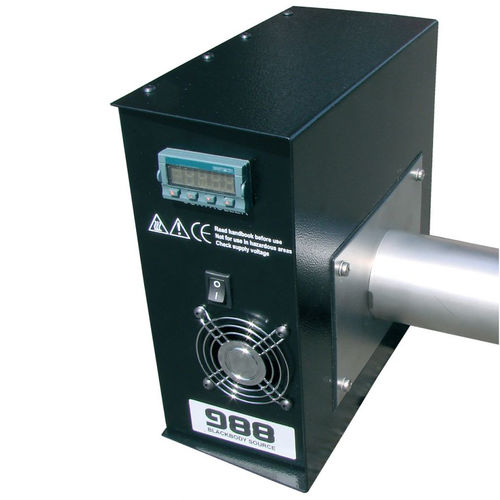

Pyrometer black body calibration source 988

for thermal cameras

The 988 is a low cost Blackbody source introduced to meet customer requirements for a simple, cost effective but high accuracy calibrator for the calibration of thermal imagers and infrared thermometers used at temperatures around ambient. A 70 mm diameter ridged plate is heated or cooled with an internal solid state thermoelectric heat pump. The temperature of the plate can be set from 20°C to 45°C with a resolution of 0.01°C. Evaluation showed the advantages of fitting a stainless steel tube around the plate to give better uniformity and less sensitivity to draughts and ambient temperature effects. Key features: - Emissivity: 0.97 at ±0.02 - Controller resolution: 0.01°C Specifications Target size - 70 mm diameter Stability - ±0.2°C Accuracy - ±0.2°C Emissivity - 0.97 at ±0.02 Heating time - 35 min General specifications Size - 230 x 225 x 115 mm Weight - 4 kg Display - Resolution: 0.01°C
