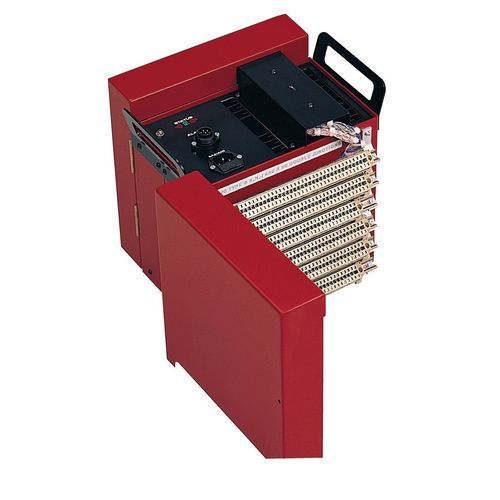

Compensator TRU 937

Description
The TRU 937 is a compact thermocouple cold-junction compensator unit providing a stable and precise reference temperature at 0°C or, optionally, at 45°C to 70°C. It uses Peltier devices requiring limited maintenance and is supplied in an open compact enclosure. The reference stabilizes within 10 minutes after start-up. A user-configurable alarm activates if temperature deviation exceeds the set threshold.

Principles of use
Thermocouple reference junctions are immersed into temperature-controlled wells and connected to terminals located on the sides of the unit within an isothermal environment. Temperature uniformity prevents parasitic EMFs at the terminals. The user connects their thermocouples and the copper output connections to the measuring instrument.

Features

• Operates in ambient temperatures from 2 to 65°C
• Suitable for laboratory applications or installations requiring a large number of thermocouples
• Up to 50 / 100 channels of double junctions
• For pre-wired thermocouples
• Compact open format

Models and accessories
TRU 937/50: accepts up to 50 thermocouples. TRU 937/100: fitted with B2 block, accepts up to 100 thermocouples.
Accessories: platinum probe (ref. 935-14-55, supplied with UKAS certificate), fan filter (ref. 935-17-33) and double junctions (ref. 880D/x) for thermocouples K, E, N, U, T, J, R or S (quantity and type to be specified).

Performance and technical specifications (temperature)
Temperature range: 0°C (or 45°C to 70°C)
Stability: ±0.03°C (load-induced error from thermocouples can be compensated by controller adjustment)
Stabilization time: 10 min from 44°C
Capacity: Up to 100 double junctions
Connections: Klippon terminals type 1.5 AKZ
Alarm: Relay 5 A, 240 V

General specifications
Dimensions: TRU 937/100: 265 x 253 x 312 mm
TRU 937/50: 265 x 253 x 230 mm
Mass: TRU 937/100: 11 kg
TRU 937/50: 8 kg
Supply: 100 / 130 V (50/60 Hz) or 208 / 240 V (50/60 Hz); 200 Watts

Environmental specifications
Operating range: 2°C to 65°C

Characteristics / technical specifications

• Model: TRU 937 (50 and 100 channel versions)
• Temperature range: 0°C or 45–70°C
• Stability: ±0.03°C
• Stabilization time: 10 min from 44°C
• Capacity: up to 100 double junctions
• Connections: Klippon terminals type 1.5 AKZ
• Alarm: Relay 5 A, 240 V
• Dimensions (TRU 937/100): 265 x 253 x 312 mm
• Dimensions (TRU 937/50): 265 x 253 x 230 mm
• Mass (TRU 937/100): 11 kg
• Mass (TRU 937/50): 8 kg
• Supply: 100/130 V or 208/240 V (50/60 Hz), 200 W
• Operating range: 2°C to 65°C
