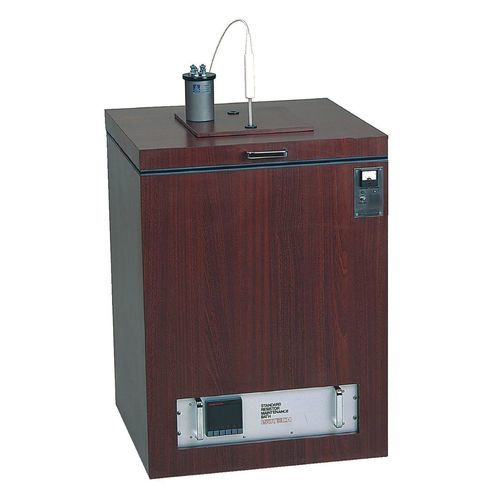

Low-temperature calibration bath 455

high-precision

Overview
The reference resistor bath 455 operates from dew point up to 40°C and provides an unmatched stability of ±0.005°C. It is designed to host several reference resistors and to support accurate temperature coefficient measurements and temperature-controlled maintenance.

Key features

• Wide temperature range: dew point to 40°C
• High stability: ±0.005°C
• Accepts multiple reference resistors

Technical description
The 455 uses Peltier modules to regulate the bath temperature with a control resolution of 0.01°C, independent of ambient conditions. Total stability and temperature gradients are below ±0.015 K when measured directly in the bath oil and below ±0.003 K when measured inside a fixed reference resistor. The maintenance bath can accommodate several resistors depending on their size and is ideal for measuring temperature coefficients of fixed resistors and for keeping them at a controlled temperature. The recommended oil for the 455 has specific properties (very high resistivity and very low viscosity); using an alternative oil will increase temperature gradients and may severely damage the pump.

New features
A new color graphic display provides system control. The Ethernet interface allows remote temperature regulation. A function to log bath and ambient-air temperature is available. Data can be exported to a USB key.

Delivered as standard

• Cal Notepad software
• Serial communication cable
• User manual

Oil
The bath requires 35 L of oil to fill. A special oil referenced for use (manufacturer reference shown on the product sheet) is recommended.

Technical specifications

• Temperature range: dew point to 40°C
• Accuracy: ±0.005°C (including stability and gradients)
• Resolution: 0.01°C
• Dimensions: 910 x 635 x 710 mm
• Weight: 66 kg
• Power supply: 100 / 130 VAC or 208 / 240 VAC (50/60 Hz)
• Power consumption: 15 W
• Oil capacity: ~35 L
