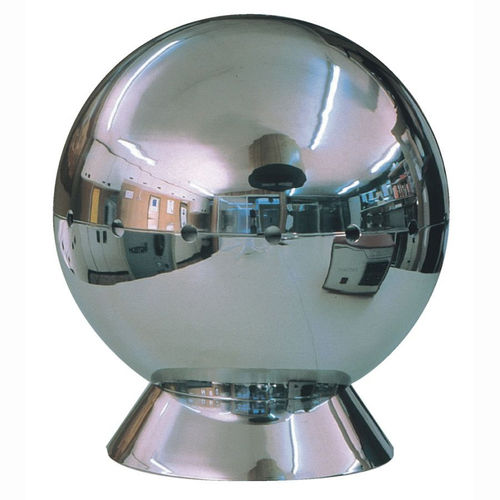

High-temperature black body calibration source SATURN CYCLOP 878

for pyrometers

The Saturn Cyclop R 878 is a spherical Blackbody source. It consists of an inner black sphere that sits inside a spherical furnace and is suitable for use as a radiation source for infrared thermometers over the range 100°C to 1300°C. The inner sphere has a nominal diameter of 230 mm and is accessed by an optical sighting tube. The furnace can be supplied in two different constructions, one providing an aperture size of 17 mm, one of 45 mm. The furnace can be adapted for thermocouple operation by replacing the inner sphere with an equalizing block and using a different control sensor. Key features: - Can be adapted for thermocouple calibration
