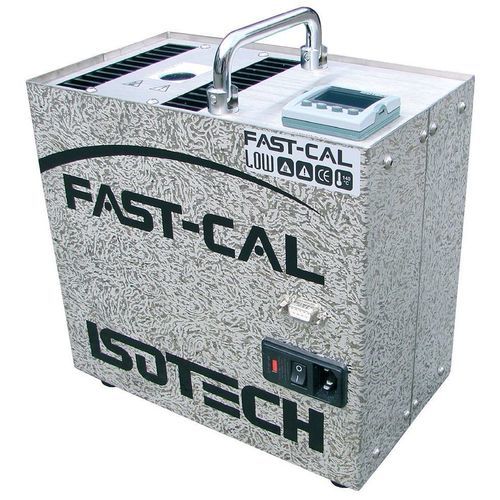

Cooling dry block heater Fast-Cal Low

compactdigitalexternally-controlled

Description
The Fast-Cal Low is a portable industrial calibration furnace for temperature probes, covering -35°C (at ambient 20°C) up to +140°C. Designed for on-site use, it is lightweight, robust and easy to operate.

Available versions
The Fast-Cal Low is available in two versions: model B (Basic) and model S (On-site). The B model is equipped with a controller displaying both the setpoint and the temperature measured by the control probe. The S model, in addition to the B features, includes a digital indicator allowing connection of a reference probe to improve accuracy by eliminating temperature gradient and loading errors.

Key points

• Temperature range: -35°C (Tamb 20°C) to 140°C
• Calibration volume: 25 x 148 mm depth
• Lightweight and robust
• Easy to use on site

Supplied as standard
Fast-Cal Low B (Basic model)

• Standard insert with 3 bores diameter: 2 x 4.5 mm / 1 x 6.5 mm, depth: 140 mm
• Cal Notepad software
• Serial communication cable
• Carrying case
• User manual
• Traceability certificate

Fast-Cal Low S (On-site model)

• Standard insert with 3 bores diameter: 2 x 4.5 mm / 1 x 6.5 mm, depth: 140 mm
• Cal Notepad software
• Serial communication cable
• Carrying case
• User manual
• Traceability certificate
• Built-in digital indicator
• Working standard Pt100 (reference provided on the product sheet)

Metal sleeves

• 907-02-03: Standard insert with 3 bores diameter: 2 x 4.5 mm / 1 x 6.5 mm (depth: 140 mm)
• 907-02-03b: Unbored insert
• 907-02-03c: Special insert

Transport information
Dimensions without packaging: 228 x 248 x 143 mm
Weight without packaging: 6.6 kg

Technical specifications

• Temperature range: -35°C (Tamb 20°C) to +140°C
• Stability: ±0.02°C
• Basic accuracy: ±0.2°C
• Total accuracy (with working standard): ±0.15°C
• Heating time: -30°C to 140°C: 15 min
• Cooling time: 140°C to 0°C: 15 min
• Calibration volume: 25 x 148 mm depth
• Process input: 4-20 mA (on On-site model only)
• Dimensions: 228 x 248 x 143 mm
• Mass: 6.6 kg
• Power supply: 115 VAC or 230 VAC, 50/60 Hz — 150 Watts
• Communication interfaces: RS 232
