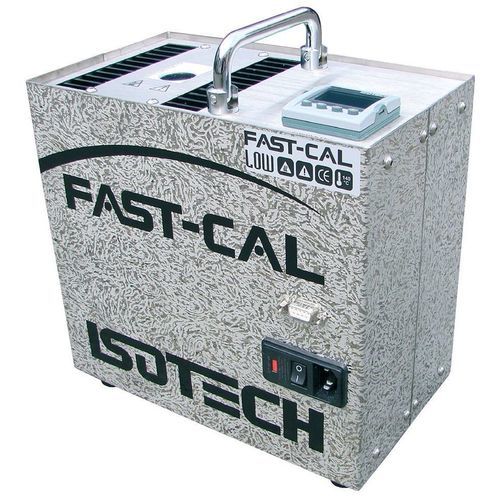

High-temperature dry block heater Fast-Cal Medium

with thermostatcompactdigital

Description
The Fast-Cal Medium is a portable industrial calibration furnace for temperature probes, operating from 30°C to 350°C. It is available in two versions: model B (Basic) and model S (Site). Model B is fitted with a controller that displays both the setpoint and the temperature measured by the control probe. Model S includes, in addition to Model B features, an integrated digital indicator to which a reference probe can be connected for improved accuracy by eliminating temperature gradient and loading errors.

Key points

• Calibration volume: 25 x 148 mm (insert depth 140 mm)
• Lightweight, portable design for on-site use
• Rapid temperature ramp and controlled stability

Delivered with (Fast-Cal Medium B)

• Standard insert with 3 holes: 2 x Ø 4.5 mm / 1 x Ø 6.5 mm, depth: 140 mm
• Cal Notepad software
• Serial communication cable
• Carrying case
• User manual
• Traceability certificate

Delivered with (Fast-Cal Medium S)

• Standard insert with 3 holes: 2 x Ø 4.5 mm / 1 x Ø 6.5 mm, depth: 140 mm
• Cal Notepad software
• Serial communication cable
• Carrying case
• User manual
• Traceability certificate
• Integrated digital indicator
• Working standard Pt100, 935-14-82/DB

Metal inserts

• 907-02-03: Standard insert with 3 holes: 2 x Ø 4.5 mm / 1 x Ø 6.5 mm
• 907-02-03b: Un-drilled insert
• 907-02-03c: Special insert
• Insert depth: 140 mm
• UKAS: 5-point calibration certificate option

Specifications
Temperature range: 30°C to +350°C
Stability: ±0.03°C
Basic accuracy: ±0.3°C
Total accuracy (with working standard): ±0.2°C
Warm-up time (50°C to 350°C): 15 min
Cool-down time (350°C to 100°C): 40 min
Calibration volume: 25 x 148 mm (insert depth: 140 mm)
Process input: 4–20 mA (Site model only)

General specifications
Dimensions: 228 x 248 x 143 mm
Weight: 6.35 kg
Power supply: 115/230 VAC, 50/60 Hz, 750 W
Communication interfaces: RS232

Technical features / specifications

• Temperature range: 30°C to 350°C
• Stability: ±0.03°C
• Basic accuracy: ±0.3°C
• Total accuracy (with standard): ±0.2°C
• Calibration volume: 25 x 148 mm (insert depth: 140 mm)
• Warm-up time 50→350°C: 15 min
• Cool-down time 350→100°C: 40 min
• Power supply: 115/230 VAC, 50/60 Hz, 750 W
• Weight: 6.35 kg
• Dimensions: 228 x 248 x 143 mm
• Interfaces: RS232
• Process input (Model S): 4–20 mA
