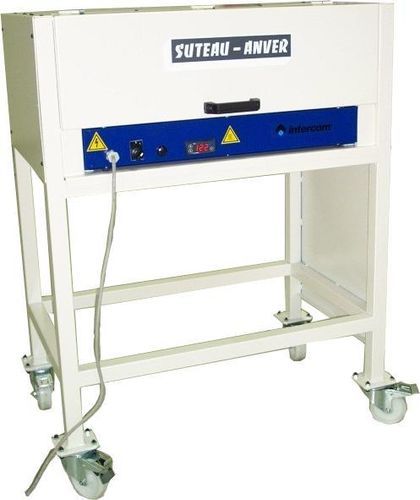

Cabinet oven SA 64

holdingstorageelectric

Product overview
This oven is designed to maintain folding tools at their operating temperature and is typically used alongside folding machines such as model WSK. Its storage capacity and regulated temperature up to 120°C reduce idle time between production runs. Tool handling is straightforward when following temperature safety instructions.

Options

• Size on request

Technical features

• Lower heating plate with a removable U system spanning the full length to support tools in a vertical position.
• Ventilated heating system to ensure a constant internal temperature; thermal regulation up to 120°C.
• Standard tool accommodation: width 30 mm (10 mm spacing between tools), tool height 250 mm, tool depth 400 mm.
• Internal usable dimensions: 700 x 450 x 255 mm.

Specifications

• Model: SA 64
• Purpose: Maintain folding tools at working temperature to minimize waiting time between productions
• Maximum regulated temperature: 120°C
• Heating elements: Lower heating plate with removable U system; ventilated heating for stable internal temperature
• Standard tool accommodation: width 30 mm, spacing 10 mm, height 250 mm, depth 400 mm
• Internal dimensions (W × D × H): 700 × 450 × 255 mm
• Customization: Sizes available on request
