Water cleaning machine

automaticfor the textile industrycontinuous

Description

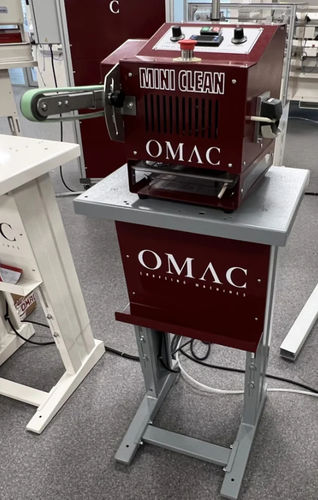

OMAC has supplied equipment to the leather goods and footwear industries for decades. The OMAC MINI CLEAN is a compact edge cleaning machine designed to remove dye residues from the edges of leather and synthetic belts, shoulder straps and strips using hot or cold water. The unit uses a pump that draws water from the tray and distributes it evenly over a continuous sponge belt.

Applications

• Cleaning edges and flanks of belts, shoulder straps and leather or synthetic strips
• Sectors: leather goods manufacture, footwear production, accessories workshops

Availability
Delivered as part of the OMAC range. Wide availability of OMAC spare parts and replacement sponge belts; stock and lead times available on request.

Features / Technical specifications

• Adjustable water supply amount
• Adjustable tilt for the sponge belt
• Belt speed variator for process control
• Maximum water tray capacity: 4 liters
• Temperature controller allows adjustment of water temperature up to 60°C
• Consumption with hot water: 150 Watt/h
• Consumption with cold water: 44 Watt/h
• Materials treated: leather and synthetic leather
