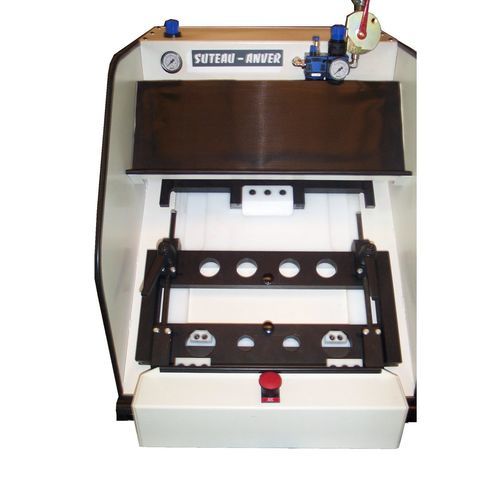

Colouring unit SA 500

Product overview
Specially developed in partnership with a leather manufacturer, the removable coloring device SUTEAU-ANVER SA 500 is designed for finishing operations. It is mounted on any table and provides coloring technicians with a compact workstation that concentrates the tools required for dyeing and finishing tasks.

Characteristics

• Tilted finishing set, table-mounted
• 2 adjustable pneumatic cylinders to control pressure and closing speed of the removable vice
• Bimanual safety system
• 1 removable clamping vice model SA 502 (Teflon-coated)
• Overall length: 500 mm
• Useful length: 420 mm
• Useful height: 120 mm
• Clamping width range: 20–60 mm (for asymmetrical shapes)
• 1 additional removable clamping vice model SA 502 (optional)
• 2 vice supports SA 501, table-mounted, including:
  • 1 support with front and rear stops
  • 2 transport handles

Options

• SA 1500 for a useful length of 1320 mm

Spare parts
A wide range of spare parts is available and in stock.

Technical specifications

• Finishing set: tilted, table-mounted
• Pneumatic cylinders: 2 adjustable (control pressure and closing speed)
• Safety: bimanual safety system
• Removable clamping vice: model SA 502 (Teflon-coated)
• Additional removable clamping vice: model SA 502 (optional)
• Overall length: 500 mm
• Useful length: 420 mm (standard); option for 1320 mm (SA 1500)
• Useful height: 120 mm
• Clamping width range: 20–60 mm (for asymmetrical shapes)
• Vice support: SA 501, table-mounted, including front and rear stops
• Transport: vice support includes transport handles
• Spare parts: broad availability in stock
