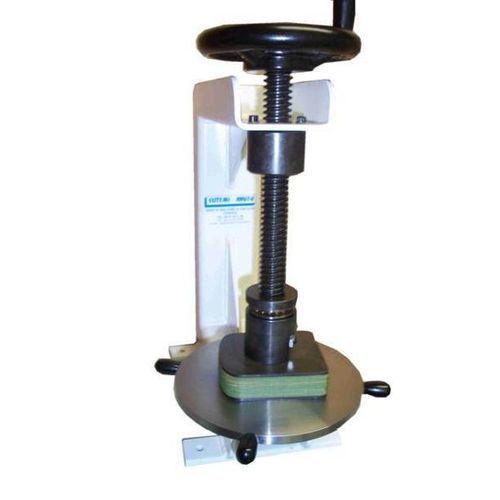

Bench vise SA 27

manualrotarysteel

Product overview
The finishing vice SUTEAU-ANVER is designed for finishing operations. It can be positioned inside any coloring/paint cabin and can, optionally, be mounted on an articulated arm. Function: apply color by spray gun or brush on edges or full surfaces.

Technical features

• Mechanically welded unit, painted in white RAL 9001
• Working area 150 x 150 mm
• Maxi loading height 150 mm
• Mini using height: 25 mm
• Manual rotating of the set for the color spraying
• Manual clamping of the parts to be dyed
• One black Teflon tool set with its positioning template provided

Options

• Articulated support unit allowing to position the machine inside or outside the coloring cabin
• Additional tooling according to the parts to be dyed

Spare parts
A wide range of spare parts is also available and in stock.

Technical specifications

• Mechanically welded unit, painted in white RAL 9001
• Working area 150 x 150 mm
• Maxi loading height 150 mm
• Mini using height: 25 mm
• Manual rotating of the set for the color spraying
• Manual clamping of the parts to be dyed
• One black Teflon tool set with its positioning template provided
