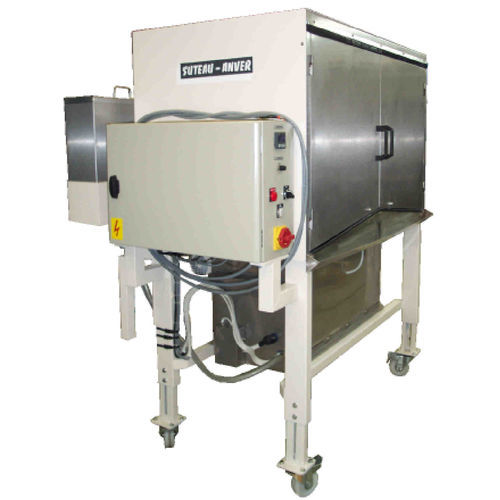

Programmable humidity generator SA 48/2portable
Add to favorites
Compare this product
Characteristics
- Type
- programmable, portable
- Humidity range
Min.: 0 %
Max.: 100 %
Description
Overview
Designed and manufactured by SUTEAU-ANVER, the SA 48/2 humidification cabinet provides controlled humidification with combined heating, steam and forced ventilation. It is intended for flat leather parts or complete luggage items for processes such as turning, folding or conditioning prior to finishing.
Operation
Hot air and steam are generated by an air-resistance bank and two immersion heating elements in a constant-level water tank. A stainless-steel mixing fan ensures homogeneous distribution. Steam production can be disabled when only hot air is required.
Controls
Electronic adjustment of air temperature and steam quantity allows precise process settings adapted to leather and luggage applications.
Construction
Fully stainless construction with thermal insulation and an external painted sheet-metal casing. All internal circulation components are stainless steel for corrosion resistance.
Tank and mobility
Stainless steel tank, 20 L capacity. Machine height adjustment and four braked castors for positioning and mobility.
Options
Available versions
Technical specifications
Designed and manufactured by SUTEAU-ANVER, the SA 48/2 humidification cabinet provides controlled humidification with combined heating, steam and forced ventilation. It is intended for flat leather parts or complete luggage items for processes such as turning, folding or conditioning prior to finishing.
Operation
Hot air and steam are generated by an air-resistance bank and two immersion heating elements in a constant-level water tank. A stainless-steel mixing fan ensures homogeneous distribution. Steam production can be disabled when only hot air is required.
Controls
Electronic adjustment of air temperature and steam quantity allows precise process settings adapted to leather and luggage applications.
Construction
Fully stainless construction with thermal insulation and an external painted sheet-metal casing. All internal circulation components are stainless steel for corrosion resistance.
Tank and mobility
Stainless steel tank, 20 L capacity. Machine height adjustment and four braked castors for positioning and mobility.
Options
- Custom sizes on request
- Stainless Teflon-coated shelves (4 or 8)
- Electric pneumatic rods fitted
- Slatted curtain (strip width 100 mm)
- Air curtain
- Analog hygrometric display
Available versions
- Version 1 : 4 shelves 800×600 mm
- Version 2 : 8 shelves 400×600 mm with central separation
Technical specifications
- Model name: SA 48/2
- Manufacturer: SUTEAU-ANVER
- Function: Humidification cabinet with heating, steam and ventilation
- Steam and hot air generation: Air-resistance bank + 2 immersion heating elements in constant-level water tank
- Fan: Stainless-steel mixing fan
- Controls: Electronic adjustment of air temperature and steam quantity; steam production can be inhibited
- Construction: Fully stainless, insulated, external painted sheet-metal casing
- Tank capacity: 20 L stainless steel
- Mobility/adjustment: Height adjustment; 4 braked castors
- Shelf configurations: Version 1 — 4 shelves 800×600 mm; Version 2 — 8 shelves 400×600 mm with central separation
- Options: Stainless Teflon shelves (4 or 8), electric pneumatic rods, slatted curtain (100 mm strips), air curtain, analog hygrometric display, custom sizes
