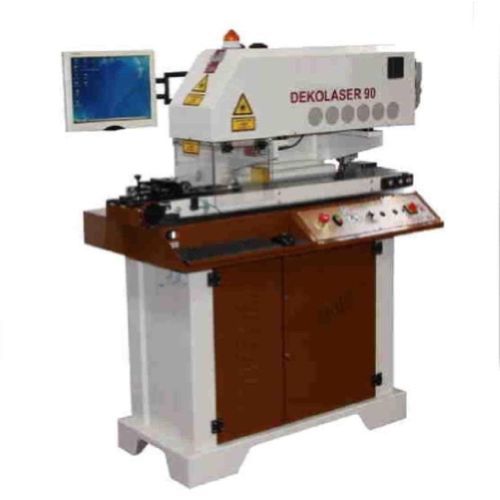

CO2 laser cutting and engraving machine DEKO LASER 902D laserfor stonefor leather
Add to favorites
Compare this product
Characteristics
- Technology
- CO2 laser, 2D laser
- Material
- for stone, for leather, textile
- Product handled
- belt
- Control type
- with programming software
- Associated function
- engraving, marking
- Applications
- for clothing
- Workpiece loading
- automated loading/unloading
- Configuration
- bench-top
- Other characteristics
- automatic, with vacuum base, with water cooling, with automatic feeder, rotary
- X travel
130 mm
(5.12 in)- Y travel
130 mm
(5.12 in)- Laser power
90 W
Description
Product description
Technical features
Conveyor Belt
Focal 130
Cross pin
PC SOFTWARE
Options
Available versions
Technical specifications
- CO2 laser system for cutting and marking with 90 W output (10.6 µm). Continuous-mode reproduction along the length with a 130×130 mm working area. Suitable for decorative applications such as belt manufacturing. Supports integration of automated loading and unloading systems for production line automation.
Technical features
- Laser marking unit with American CO2 source
- Painted steel construction
- Dust protection
- Laser head movement with 2 interpolated axes
- External auto-cooler system
- Pumping device warranty: 1 year (unlimited hours)
- Wavelength: 10.6 µm
- Output power: 90 W
Conveyor Belt
- Rotary axis movement with interpolation
- Operation continuous or step-by-step (130×130 mm)
- Suction conveyor belt
- Self-centering guide
Focal 130
- Working area: 130×130 mm
- Resolution: 1.5 µm
- Minimum marking spot: 0.2–2 µm
Cross pin
- Laser guide for accurate focal point identification; supported by PC software
PC SOFTWARE
- Integrated software: Matrix on Linux RT1
- Monitor: 17'' TFT
- Keyboard and mouse
- Internal network card
- Internal modem for remote assistance
Options
- SERVER: automatic loading
- R1: automatic unloading
Available versions
- No specific versions listed on the page
Technical specifications
- Laser marking unit with American CO2 source
- Painted steel body
- Dust protection
- Laser head movement with 2 interpolated axes
- External auto-cooler system
- Pumping device warranty: 1 year (unlimited hours)
- Wavelength: 10.6 µm
- Output power: 90 W
- Working area: 130×130 mm (continuous reproduction along length)
- Resolution: 1.5 µm
- Minimum marking spot: 0.2–2 µm
- Conveyor: rotary axis movement with interpolation; suction conveyor belt; self-centering guide; continuous or step-by-step operation
- Laser guide for focal point identification
- PC software: Matrix on Linux RT1; 17'' TFT monitor; keyboard and mouse; internal network card; internal modem for remote assistance
- Options: SERVER (automatic loading), R1 (automatic unloading)
Catalogs
No catalogs are available for this product.
