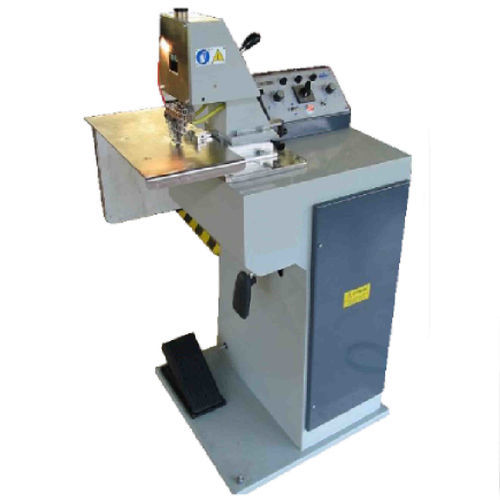

Hot marking machine RIG/C

burnleatherfor leather

Product overview
This machine is designed for hot ruling (ornamental burning/heat stamping) on leather. It is fitted with interchangeable wheels or irons and is capable of producing straight lines, concave, convex and asymmetrical shapes.

Application sectors

• Footwear
• Leather goods
• Saddlery

Technical features

• Mounting: on column or on table
• Heating regulation
• Speed inverter for material transport
• Heating iron included
• Standard rule width: 0.7 mm (other widths on request)
• Special rules available on request (e.g. double U)

Options

• Foot pedal (threadle)
• Customized heating wheel
• Castors
• Adjustable-height table
• Color: RAL 9001

Characteristics / Technical specifications

• Purpose: hot ruling / ornamental burnings on leather
• Interchangeable wheels or irons
• Suitable for: Footwear; Leather goods; Saddlery
• Capable of making straight lines, concave, convex and asymmetrical shapes
• Mounting: on column or on table
• Heating regulation and heating iron included
• Speed inverter for transport
• Rule width: 0.7 mm (other widths on request)
• Special rules on request (double U, etc.)
• Optional accessories: foot pedal; customized heating wheel; castors; adjustable-height table; color RAL 9001
