An ergonomic alternative to manual lifting, intermediate-duty stacking and pallet positioning applications. Choose models with 1,500 lb to 3,000 lb capacities with lift heights up to 118" (2,997mm) to tackle your materials handling applications.

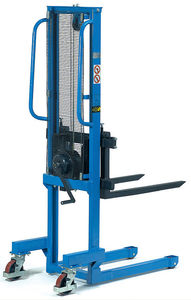

Hand winch stacker for the occasional use as lifting and transport appliance. Maintenace free. Sturdy sectional steel construction with tubular push handles, powder coated blue RAL 5007. Lifting by means of safety hand winch. Forks adjustable.
Carrying width: 150 - 690 mm
Total length: 1325 mm
Fork width: 60 mm
Steered wheels: Polyurethane 150 x 40 mm
Fork rollers: Nylon 80 x 47 mm
Total height: 2030 mm
Total width: 725 mm
Lifting range: 90 - 1560 mm
Guarantee: 2 years
82A Series drum palletizers place or retrieve a drum at the corners of a pallet. You can rotate a drum 360 degrees end-over-end, then tilt drum to pour.
- Lock drum at horizontal to dispense at up to 26" high
- Lock at vertical to prevent spills
Drum Palletizers pour a drum beyond the V-shaped base (shown above). Standard 55-gallon steel drum in horizontal position reaches 18.5" beyond the wheels.
The 82A Series drum palletizers handle a 22.5" diameter 55-gallon steel drum. They accept Diameter Adaptors for various smaller drums.
Capacity: 800 Lb.
Base Dimensions of drum palletizers
- 48.5" wide, 39" long
- Overall length: 42.5"
- Legs are 9" high and reach 20.75" in front of upright stanchion
- Turning radius: 53"
- (2) 4" swivel casters at back
- (2) 6" wheels at front
- Counterweighted for stability
Presto Pallet Stackers are ideal for servicing pallet racks. They are more economical and easier to use than conventional fork lifts. With over 40 models to choose from and a wide variety of available options, there's sure to be a Presto Pallet Stacker to meet your needs.
The Genie SuperLift Advantage® is a package of options you select to design the Superlift you need and want... and you get more value for your money.
It's ease as one, two, three...
Choose the base and the mast--either Standard Base with five different lifting heights--or Straddle Base with three different lifting heights.
Choose your winch--one speed or two speed
Choose the load handling attachments you need.
Standard Features:
Patented telescoping mast system
Heavy duty design for compactness, safety, strength and rigidity
Quick set-up requires no tools and is ready to work in seconds
Compact design - legs fold up for easy storage
Easy to load
In the stored position, roller wheels on the base of the legs allow the unit to be easily pushed around
Hold-down bar holds mast assembly in place during transport
Presto Lifts line of Manual Stackers incorporate an impressive number of safety features in a rugged, user-friendly design. They are available in Hand or Foot operated styles.
Southworth stackers are much easier to integrate into your operation because unlike fork lifts that require trained, certified operators, anyone can use them.
Their versatility makes them ideal for feeding pallet rack as well as any other pallet storage or transfer operations throughout the plant or warehouse. And because they are a Southworth product, your investment is secure and guaranteed.
Description
Mobile manual push pull system with pneumatic or electrical features.
Basic unit consists of stacker/straddle type mobile frame with 4 free rotating castors (2 braked). Powered up/down pillar with either battery or pneumatic operation and 1500mm of stroke. White FDA approved slot cover to offer GMP. Basic execution in StSt304 with 180 grit finish. 100Kgs customer load capacity.
Features
1000 lb. capacity
18" load centers
Lifting heights of 48" through 86"
1" thick x 3" wide x 30" long solid steel forks
15-1/2" high fork backs
Optional drum grabber attachment
Forks bolted at 15" I.D. for 55 gallon drum
Forks bolted at 11-1/2" I.D. for 30 gallon drum
- Easy to lift,transport and tilt 55 gallon drum.
- Available to carry the drum to rack(lower than 1350mm).
- Tilt the drum 120¡ã for oil empty.
- Compact and reliable mechanism system fo fix drum.
- It can lock a drum in vertical position to avoid spills or horizontal position for draining through a faucet.
- Easily lift with pedal when unload.
characteristics standards
economic lot size:
70 ES - 90E-ES HAS
professional series
60P - 90P- 125P - 160P - 225P
capacity of lifting
60 kg - 70Kg - 90Kg
125Kg - 160Kg- 225Kg
