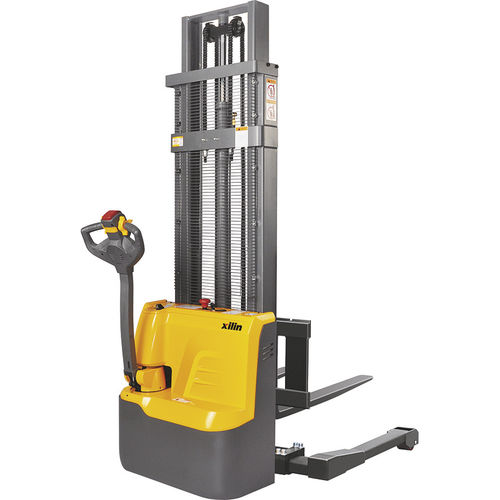

Electric stacker truck CTD1xR-E series

walk-behindstraddlewith adjustable fork

Model - - CTD10R-E/12R-E Load capacity - Q(kg) - 1200 Load centre distance - c(mm) - 600 Load distance,centre of drive axle to fork - x(mm) - 770 Height,lowered - h13(mm) - 80 Tyre size, front - - Φ195×70 Tyre size,rear - - Φ98×82 Additional wheel(dimensions) - - Φ150×60 Wheels, number front rear(x=driven wheels) - - 1x+1/4 Height, mast lowered - h1(mm) - 2145/1895/2145 Max.lift height - h3(mm) - 1600/2500/3000 Height, mast extended - h4(mm) - 2145/3100/3600 Height of tiller in drive position min./max - h14(mm) - 670/1300 Overall length - l1(mm) - 1500 Length to face of forks - l2(mm) - 660 Overall width - b1(mm) - 1132-1532 Fork dimensions - s/e/l(mm) - 35/100/1070(1150) Width overall forks - b5(mm) - 200-800 Ground clearance,centre of wheelbase - m2(mm) - 35 Aisle width for pallets 1000×1200 crossways - Ast(mm) - 2280 Aisle width for pallets 800×1200 crossways - Ast(mm) - 2280 Turning radius - Wa(mm) - 1490 Travel speed,laden/unladen - Km/h - 4.5/5 Lift speed,laden/unladen - m/s - 0.09/0.14 Lowering speed,laden/unladen - m/s - 0.12/0.1 Battery voltage, nominal capacity K20 - V/Ah - 24/105 Battery weight - kg - 52(70) Battery dimensions l/w/h - mm - 260(330)x168(171)x217 Service weight(with battery) - kg - 490/555/575
