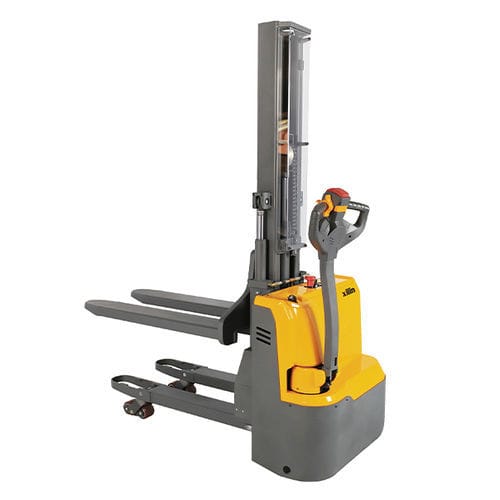

Electric stacker truck CDD10RDS-Ewalk-behind24 Vfor warehouse
Add to favorites
Compare this product
Characteristics
- Energy
- electric
- Operator
- walk-behind
- Voltage
- 24 V
- Applications
- for warehouse, double-pallet
- Other characteristics
- compact
- Carrying capacity
1,000 kg, 1,200 kg
(2,204.6 lb, 2,645.5 lb)- Lifting height
1,600 mm, 1,950 mm
(62.99 in, 76.77 in)- Height of mast when lowered
2,050 mm, 2,400 mm
(80.7 in, 94.5 in)- Height of mast when raised
2,060 mm, 2,410 mm
(81.1 in, 94.88 in)- Overall width
800 mm
(31.5 in)- Overall length
1,690 mm
(66.5 in)- Fork width
180 mm
(7.1 in)- Fork length
1,070 mm
(42.13 in)- Fork thickness
60 mm
(2.36 in)- Turning circle radius
1,450 mm
(57.1 in)- Battery capacity
105 Ah
- Motor power traction
0.65 kW
(0.884 hp)- Motor power lifting
2.2 kW
(2.991 hp)- Travel speed
4.5 km/h, 5 km/h
(2.8 mph, 3.11 mph)- Lifting speed
0.11 m/s, 0.14 m/s
(0.361 ft/s, 0.459 ft/s)- Weight
60.8 kg
(134.04 lb)
Description
CDD10RDS-E type Double Decker trucks with very small chassis widely used in narrow and confined warehouse area, such as in delivery vans and elevators.
Mast with excellent visibility for wide view of the forks.
With double decker ,mast lift 1000kgs and support arm lift 1000kgs, total load is 1000kgs if use double pallet.
Compact design With very small turning radius, offer a range of application option in very confined space.
