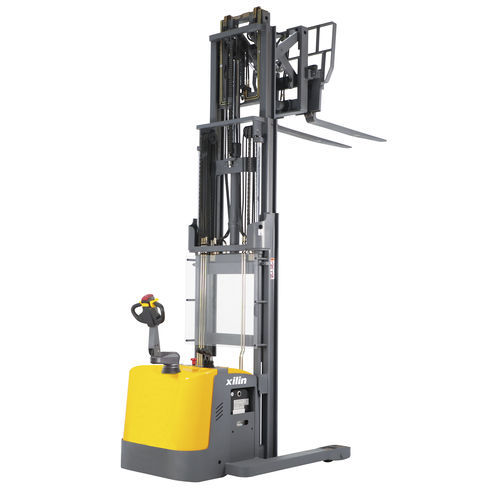

Electric stacker truck CQDH15Awalk-behind24 Vfor warehouse
Add to favorites
Compare this product
Characteristics
- Energy
- electric
- Operator
- walk-behind
- Voltage
- 24 V
- Applications
- for warehouse, for lifting
- Other characteristics
- straddle, counterbalanced, with retractable forks
- Carrying capacity
Min.: 1,350 kg
(2,976.2 lb)Max.: 1,500 kg
(3,306.9 lb)- Lifting height
Min.: 4,500 mm
(177.17 in)Max.: 5,500 mm
(216.54 in)- Free lift
Min.: 1,575 mm
(62 in)Max.: 1,825 mm
(71.9 in)- Height of mast when lowered
Min.: 2,179 mm
(85.8 in)Max.: 2,499 mm
(98.4 in)- Height of mast when raised
Min.: 5,381 mm
(211.85 in)Max.: 6,381 mm
(251.22 in)- Overall width
Min.: 1,345 mm
(53 in)Max.: 1,345 mm
(53 in)- Overall length
Min.: 2,360 mm
(92.9 in)Max.: 2,360 mm
(92.9 in)- Fork width
Min.: 200 mm
(7.9 in)Max.: 680 mm
(26.8 in)- Fork length
Min.: 1,070 mm
(42.13 in)Max.: 1,070 mm
(42.13 in)- Fork thickness
Min.: 35 mm
(1.38 in)Max.: 35 mm
(1.38 in)- Fork spacing
Min.: 200 mm
(7.87 in)Max.: 680 mm
(26.77 in)- Turning circle radius
Min.: 1,560 mm
(61.4 in)Max.: 1,560 mm
(61.4 in)- Battery capacity
Min.: 320 Ah
Max.: 320 Ah
- Motor power traction
Min.: 1.5 kW
(2.039 hp)Max.: 1.5 kW
(2.039 hp)- Motor power lifting
Min.: 4.5 kW
(6.118 hp)Max.: 4.5 kW
(6.118 hp)- Travel speed
Min.: 6.1 km/h
(3.79 mph)Max.: 6.1 km/h
(3.79 mph)- Lifting speed
Min.: 0.09 m/s
(0.295 ft/s)Max.: 0.12 m/s
(0.394 ft/s)- Weight
Min.: 2,515 kg
(5,544.63 lb)Max.: 2,515 kg
(5,544.63 lb)
