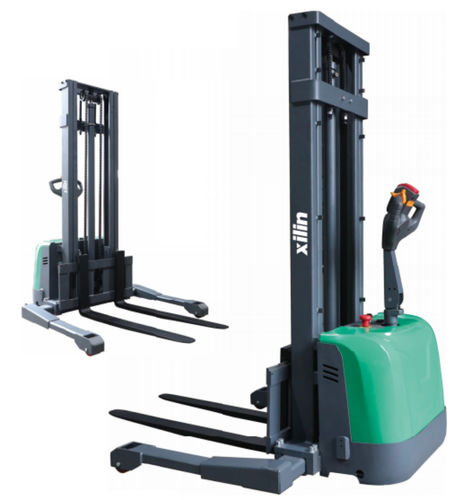

Electric mini stacker truck CTD15R-ENwalk-behind24 Vfor lifting
Add to favorites
Compare this product
Characteristics
- Energy
- electric
- Operator
- walk-behind
- Voltage
- 24 V
- Applications
- for lifting, for pallet
- Other characteristics
- compact
- Carrying capacity
Min.: 1,500 kg
(3,306.9 lb)Max.: 1,500 kg
(3,306.9 lb)- Lifting height
Min.: 1,600 mm
(62.99 in)Max.: 3,500 mm
(137.8 in)- Free lift
Min.: 0 mm
(0 in)Max.: 0 mm
(0 in)- Height of mast when lowered
Min.: 2,145 mm
(84.4 in)Max.: 2,395 mm
(94.3 in)- Height of mast when raised
Min.: 2,145 mm
(84.45 in)Max.: 4,145 mm
(163.19 in)- Overall width
Min.: 1,066 mm
(42 in)Max.: 1,466 mm
(57.7 in)- Overall length
Min.: 1,786 mm
(70.3 in)Max.: 1,866 mm
(73.5 in)- Fork width
Min.: 200 mm
(7.9 in)Max.: 800 mm
(31.5 in)- Fork length
Min.: 1,070 mm
(42.13 in)Max.: 1,150 mm
(45.28 in)- Fork thickness
Min.: 70 mm
(2.76 in)Max.: 70 mm
(2.76 in)- Fork spacing
Min.: 200 mm
(7.87 in)Max.: 600 mm
(23.62 in)- Turning circle radius
Min.: 1,343 mm
(52.9 in)Max.: 1,343 mm
(52.9 in)- Battery capacity
Min.: 105 Ah
Max.: 125 Ah
- Motor power traction
Min.: 0.65 kW
(0.884 hp)Max.: 0.65 kW
(0.884 hp)- Motor power lifting
Min.: 2.2 kW
(2.991 hp)Max.: 2.2 kW
(2.991 hp)- Travel speed
Min.: 4.5 km/h
(2.8 mph)Max.: 5 km/h
(3.11 mph)- Lifting speed
Min.: 0.09 m/s
(0.295 ft/s)Max.: 0.15 m/s
(0.492 ft/s)- Weight
Min.: 490 kg
(1,080.27 lb)Max.: 575 kg
(1,267.66 lb)
Description
ADVANTAGE:
• 3-point design, improve the trucks'stability.
• Upper horizontal drive motor to make replacing driving wheel easier.
• Offer the optional of height limit switch.
• With a slim leg design with narrow legs, steel fork wheel size 120X35mm, tailored to fit Australian pallet size.
• With small turning radius of 1343 mm, work efficiently and freely in the narrow space.
• With height deceleration function, the travel speed will reduced by 50% if the mast lift up to one meter hight.
• Built-in charger, easy to access to power supply.
• With an ergonomic design and a height of 1.3m, the Ruyi new handle provides comfortable and convenient usage.
• Steel back cover, it is strong and not easy to broken.
• 8MM Steel Mast, strong and durable.
