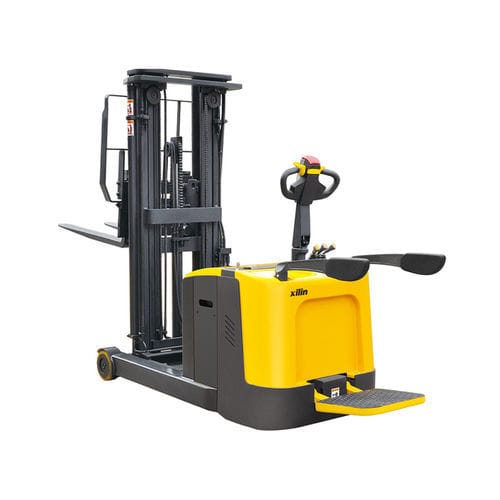

Counterbalanced stacker truck CQD series
electricwith rider platformstand-on

Counterbalanced stacker truck - CQD series - NINGBO RUYI JOINT STOCK CO., LTD - electric / with rider platform / stand-on
Counterbalanced stacker truck - CQD series - NINGBO RUYI JOINT STOCK CO., LTD - electric / with rider platform / stand-on
Counterbalanced stacker truck - CQD series - NINGBO RUYI JOINT STOCK CO., LTD - electric / with rider platform / stand-on - image - 2
Counterbalanced stacker truck - CQD series - NINGBO RUYI JOINT STOCK CO., LTD - electric / with rider platform / stand-on - image - 3
Counterbalanced stacker truck - CQD series - NINGBO RUYI JOINT STOCK CO., LTD - electric / with rider platform / stand-on - image - 4
Counterbalanced stacker truck - CQD series - NINGBO RUYI JOINT STOCK CO., LTD - electric / with rider platform / stand-on - image - 5
Add to favorites
Compare this product
Go to the NINGBO RUYI JOINT STOCK CO., LTD website for more information

Characteristics

Energy
electric
Operator
with rider platform, stand-on
Voltage
24 V
Applications
for warehouse, loading
Other characteristics
compact, steel, high-lift, counterbalanced, low-noise
Carrying capacity

1,250 kg, 1,500 kg
(2,755.8 lb, 3,306.9 lb)

Lifting height

Min.: 2,500 mm
(98.43 in)

Max.: 5,600 mm
(220.47 in)

Free lift

1,280 mm, 1,480 mm, 1,600 mm, 1,870 mm
(50.4 in, 58.3 in, 63 in, 73.6 in)

Height of mast when lowered

Min.: 1,880 mm
(74 in)

Max.: 2,495 mm
(98.2 in)

Height of mast when raised

Min.: 3,500 mm
(137.8 in)

Max.: 6,600 mm
(259.84 in)

Overall width

990 mm
(39 in)

Overall length

2,150 mm, 2,270 mm, 2,350 mm, 2,370 mm, 2,450 mm
(84.6 in, 89.4 in, 92.5 in, 93.3 in, 96.5 in)

Fork width

100 mm
(3.9 in)

Fork length

950 mm
(37.4 in)

Fork thickness

35 mm
(1.38 in)

Turning circle radius

1,650 mm
(65 in)

Battery capacity

270 Ah

Motor power traction

1.2 kW
(1.632 hp)

Motor power lifting

4.5 kW
(6.118 hp)

Travel speed

6.8 km/h, 7 km/h
(4.23 mph, 4.35 mph)

Lifting speed

Min.: 0 m/s
(0 ft/s)

Max.: 0.2 m/s
(0.656 ft/s)

Weight

1,800 kg
(3,968.32 lb)

Description

STRUCTURAL: ● Two lifting cylinders placed on outer sides of the mast. ● Germany imported special steel mast. ● Vertical driving wheel, driving efficiency , easy installation & maintenance. ● Compact structure and low gravity . SAFETY AND EFFICIENCY: ● AC frequency conversion traction motor: compact structure, good performance, regenerative braking and easy maintenance. ● Tilting system forks easy for loading and stacking. ● High Storage battery ensures strong and long-lasting power. ● Meter with BDI , prolonging the battery’s using time. ● The braking system combines magnetic brake and regenerative break, greatly prolongs the using lift of friction plate. ● With emergency stop switch and electricity lock button, and multi-valve controlling levers, ergonomic for operation. ● The adjustable regulator valve can adjust the lowing speed of the masts.
