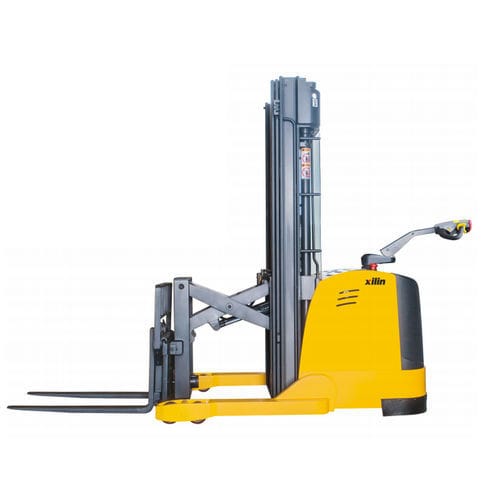

Electric stacker truck CQDH serieswalk-behindfor warehousecompact
Add to favorites
Compare this product
Characteristics
- Energy
- electric
- Operator
- walk-behind
- Applications
- for warehouse
- Other characteristics
- compact
- Carrying capacity
1,000 kg, 1,500 kg, 2,000 kg
(2,204.6 lb, 3,306.9 lb, 4,409.2 lb)- Lifting height
Max.: 5,500 mm
(216.54 in)Min.: 2,500 mm
(98.43 in)- Free lift
Max.: 5,500 mm
(216.5 in)Min.: 1,575 mm
(62 in)- Height of mast when lowered
Max.: 2,625 mm
(103.3 in)Min.: 1,869 mm
(73.6 in)- Height of mast when raised
Max.: 6,397 mm
(251.85 in)Min.: 3,381 mm
(133.11 in)- Overall width
950 mm, 1,232 mm, 1,292 mm
(37.4 in, 48.5 in, 50.9 in)- Overall length
2,389 mm, 2,430 mm, 2,535 mm, 2,557 mm
(94.1 in, 95.7 in, 99.8 in, 100.7 in)- Fork width
100 mm
(3.9 in)- Fork length
1,070 mm
(42.13 in)- Fork thickness
35 mm, 40 mm
(1.38 in, 1.57 in)- Turning circle radius
1,588 mm, 1,608 mm, 1,679 mm, 1,699 mm
(62.5 in, 63.3 in, 66.1 in, 66.9 in)- Battery capacity
320 Ah, 490 Ah
- Motor power traction
2.2 kW
(2.991 hp)- Motor power lifting
3.3 kW, 4.5 kW
(4.487 hp, 6.118 hp)- Travel speed
4.8 km/h, 5 km/h
(2.98 mph, 3.11 mph)- Lifting speed
0.095 m/s, 0.1 m/s, 0.12 m/s, 0.17 m/s
(0.312 ft/s, 0.328 ft/s, 0.394 ft/s, 0.558 ft/s)- Weight
Max.: 2,600 kg
(5,732.02 lb)Min.: 2,250 kg
(4,960.4 lb)
Description
• Walkie type Reach Stacker with very compact design, use
middle handle easy to operate.
. Low gravity, ensure safety opération.
• Water proof and dust proof motor structure, keeps the
braking and motor more durable and reliable.
. Multi function display with BDI, hour meter and fault code.
• Vertical driving wheel ensures convenient maintenance and
small turning radius.
• The mast and frame are dividable and exchangeable.
SAFETY AND EFFICIENCY:
• Advanced AC drive motor éliminâtes replacement of carbon
brush, with good ramp starting performance.
. Use Germany Frei handle to control driving speed,
lifting/lowering speed, fork reach and tilting, with optional
sldeshift.
. Cyllnder have safety explosion proof valve, avoid fork
dropping suddenly when oil tube is broken. ensure the safety
ofoperator.
• Automatic speed décélération when lifting height is up
1.8M.
Mast with micro sensor switch llmlt the cylinder lifting height,
avoid mast shock problems.
. Low voltage protection setting prolongs the battery life.
(when battery capacity Is less 20% wlll stop lifting and
avallable moving)
. Option EPS power steering system, makes steering more
light and reliable.
